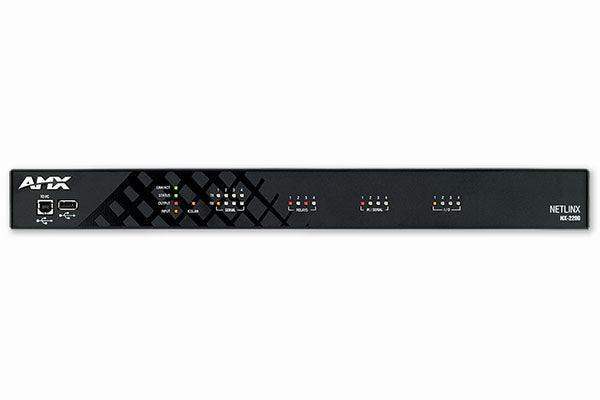

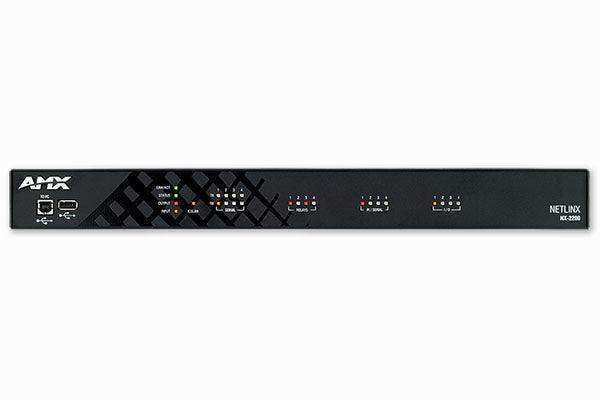

The NX-2200 / NetLinx® NX Integrated Controller is a programmable network appliance specifically designed to control AV and building technology using multiple analog and digital formats. The NX-2200 provides a scalable platform for the future by combining high performance, backward compatibility and extensive network security features. The NX-2200 is ideal for control and automation of medium-sized rooms and multi-room applications, as it includes more ports and security capabilities than the NX-1200.
- NX Master Security firmware is ideal for enterprise, education, and government policies requiring secure communication over a computer network in line with security standards expected by the IT industry of any equipment running on an enterprise
- The NX-2200 is a good fit for medium-sized conference rooms or classrooms, lecture halls, home theaters, hotel rooms and building environmental systems.
- With enhanced security features like Dual NIC, the NX-2200 provides secure control and monitoring for a medium-sized AV system, HVAC, lights, security, power management, and many similar specialized applications requiring economical control with limited physical ports.
- Dual NIC – The LAN port is used to connect the master to an external network, and the ICSLAN ports connect to AMX or third-party A/V equipment isolated from the primary network, providing rock-solid security
- IPv6 – Supports Internet Protocol version 6 (IPv6), the communications protocol that provides an identification and location system for computers on networks and routes traffic across the Internet
- IEEE 802.1X – Supports IEEE Standard for Port-based Network Access Control with the ability to grant or deny network access to devices wishing to attach to a LAN based on credentials tied to the device rather than to a user
- X.509 Certificate Services – NX supports customer-provided certificates for access to protected networks
- Full LDAP Integration – Supports multiple user-defined login groups for accessing the master, as well as provides an AMX programmer the capability to require network login to access certain areas of the touch panel
- High Performance Architecture, Flexible Programming Platform (RPM, NetLinx and Java) – Easily scalable to support a wide range of applications for today and tomorrow
- Full Line Compatible (Backwards and Cross-Compatibility) – Standardized port numbers and new configuration import/export tools mean fewer coding changes
- TLS / SSH Client – Provides NetLinx programmers the ability to manage secure port TLS and SSH communications with a remote device or server
- Cryptographic Support – In accordance with FIPS 140-2, a U.S. government computer security standard used to accredit cryptographic modules for the protection of sensitive or valuable data
- Network Syslog – Supports standard device logging to a syslog server
- Enhanced Diagnostics On Serial and IR Ports – Provides real time error feedback when Serial and IR ports are disconnected or improperly wired
- File Import / Export From USB Drive – Backup and restore configuration and program data and update firmware from a standard USB flash drive
- Hardware / Software Built for 24/7/365 Operation – Provides outstanding reliability and improved diagnostics
- Ultra-Fast 1600 MIPS processor
- 512 MB Onboard RAM
- 1 M Non-Volatile Memory
- 8 GB SDHC FLASH Memory
- 1 RU
- 1 AXLink Interface
- 1 10/100 LAN Interface
- 4 Digital I/O Ports
- 1 RS232/422/485 Port
- 3 RS232-Only Ports
- 4 IR/Serial Output Ports
- 4 Relay Ports
|Dimensions (HWD)||1 4/5” x 17” x 9 1/8” (45.15 mm x 431.80 mm x 231.64 mm)|
|Weight||6.08 lb. (2.758 Kg)|
|Memory||Memory Card: 8 GB SD, NVRAM: 1 MB, DDRAM: 512 MB, Note: Supports external USB Solid State Drives|
|Power Consumption||Active Power Consumption: 4.2 W|
|AxLink Port||(1) 4-position 3.5mm Screw Terminal, provides data and power to external AxLink control devices|
|AxLink Indicator||(1) AxLink LED (green) indicates the state of the AxLink port|
|RS-232/422/485 Ports||(1) 10-position 3.5mm Screw Terminal, NetLinx Port 1, XON/XOFF (transmit on / transmit off), CTS/RTS (clear to send/ready to send), 300 - 115,200 baud|
|RS-232 Port||(3) 2-position 3.5mm Screw Terminal, NetLinx Ports 2-4, XON/XOFF (transmit on / transmit off), CTS/RTS (clear to send/ready to send), 300 - 115,200 baud|
|Serial Indicator||(4) sets of LEDs (red/yellow) indicate when serial Ports 1 - 4 are transmitting and receiving data|
|IR/Serial||(4) 2-position 3.5mm Screw Terminal, 4 IR Transmit / 1-way Serial ports, NetLinx Ports 11-14, Support high-frequency carriers up to 1.142 MHz, 4 IR/Serial data signals can be generated simultaneously|
|IR/Serial Indicators||(2) LEDs (red) indicate when each of the IR/Serial ports (11-14) are transmitting control data|
|I/O Channels||(4) One 6-position 3.5mm Screw Terminal, 4-channel binary I/O port for contact closure with each input being capable of voltage sensing, NetLinx Port 22, Channels 1-4|
|I/O Indicator||(4) LEDs (yellow) indicate each of the I/O channels (1-4) are active|
|Relays||(4) One 8-position 3.5 mm Screw Terminal, (4) single-pole, single-throw relays, NetLinx Port 21, Channels 1-4, Each relay can switch up to 24 VDC or 28 VAC @ 1 A, Each relay is independently controlled|
|Relay Indicators||(4) LEDs (red) indicate when each of the relay channels (1-4) are active (closed)|
