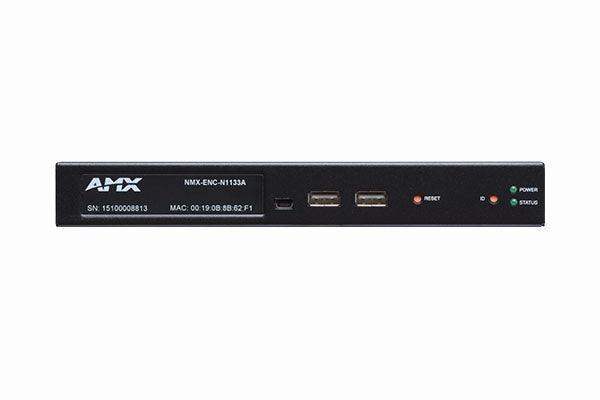

The new NMX-ENC-N1133A model features improved digital pixel reproduction and cut the already imperceptible latency in half. Packetized video streams not only remain visually lossless throughout distribution, they also arrive instantly. It has separate HDMI and VGA/RGB inputs, supports PoE, AES67, and has a separate SFP port. The SFP fiber path allows visually lossless video to be routed on a fiber-only network and extend signals beyond the reach of category cable. Added USB connectivity will enable users to extend USB over IP for touch-enabled and KVM applications.
The N1000 Series Encoders and Decoders are an affordable local AV over IP switching solution that packetizes video into a minimally compressed IP format to create anywhere from a small 2×1 seamless presentation switcher up to mid-size matrix switcher using off-the-shelf network switches.
Features
Output Scaling – Video scaling at output allows seamless switching from any source, at any resolution, to any display or projector, while preserving video fidelity
1 Frame Latency – Same as HDBaseT
Minimal Proprietary Compression (MPC) – Visually lossless MPC algorithm applied applied to all resolutions
Optional Compression – Available option to disable all compression
Power Over Ethernet (PoE) – PoE eliminates the need for power supply
Infrared (IR) – Infrared emitter connection allows control of low-cost, IR-only display devices
Onboard Control – All N-Series encoders and decoders have on-board, built-in control capability via events that can trigger any number of TCP/UDP commands to other IP controllable devices
Unmatched Flexibility – Highly competitive pricing for matrices up to 32x32, or higher with the help of our design experts
Separate Inputs – Separate HDMI and VGA input connectors on the encoder
SFP Fiber/RJ45 Ports – Encoder features SFP fiber/RJ45 copper network ports with USB control inputs for KVM-over-IP keyboard and mouse operation
Stand Alone or Card – Available as a stand alone device, or card for use with NMX-ACC-N9206
