AMX MXA-MPL – Modero X Multi-Preview Live

Product Overview

The AMX MXA-MPL Modero X Multi-Preview Live is a touch panel video accessory that streams a live HD source image — or up to 10 JPEG source previews — directly to Modero X and Modero S Series touch panels. Paired with an Enova DVX all-in-one presentation switcher or an Enova DGX digital media switcher, it lets a presenter or operator preview what each source is showing before routing it to the room display. For commercial AV integrators, this Modero X Series touch panel video preview accessory (AMX FG5968-10) adds reliable source confirmation to conference room and presentation control systems. It accepts both analog and digital video and converts the signal to an IP video stream the panel can display.

Product Description

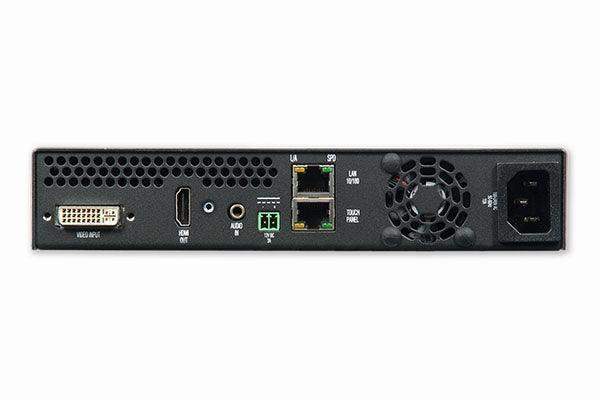

The AMX MXA-MPL Modero X Multi-Preview Live connects between a Modero X Series touch panel and an Enova DGX or Enova DVX switcher, giving users a live preview window on the panel itself. It supports one active HD video stream or up to 10 JPEG preview images, which can refresh sequentially across all ten sources or hold continuously on a single source at a minimum 2-second interval. The unit handles a multi-format video input — HDMI and DVI natively, plus RGBHV, component, composite, and S-Video through an optional DVI connector adapter — so legacy and current sources both feed the same preview accessory. Video reaches the panel as an IP stream of up to 720p over a standard 10/100 Ethernet connection with Ethernet/IP pass-through, which keeps cabling between the switcher, the MXA-MPL, and the touch panel straightforward in a rack or credenza. Because the device provides HDMI-to-IP video streaming to the Modero X panel, an AV system designer can give operators source confidence monitoring without adding a separate confidence monitor. The MXA-MPL is powered from a standard IEC connection (100–240 VAC) and ships with the AMX MIC AC universal power cord; note that it does not supply PoE power to the connected touch panel. It is suited to boardrooms, training rooms, and other commercial AV environments where multiple sources are switched to a shared display. See related AMX Modero X control and presentation hardware in our AMX collection.

Key Features

• Live Source Preview — Displays one live HD video stream or up to 10 JPEG source previews on the touch panel so operators can see content before switching to it.
• Sequential or Continuous Refresh — Cycles all 10 preview images in sequence or holds a single source image continuously, at a minimum 2-second refresh per preview.
• Multi-Format Video Input — Accepts HDMI and DVI directly, plus RGBHV, component, composite, and S-Video through an optional DVI adapter, covering both current and legacy sources.
• IP Video to the Panel — Streams up to 720p video over a 10/100 Ethernet connection with Ethernet/IP pass-through to the Modero X touch panel.
• Enova Switcher Integration — Works directly with Enova DVX all-in-one presentation switchers and Enova DGX digital media switchers for source preview in switched AV systems.
• Modero X and Modero S Compatibility — Functions as an accessory for AMX Modero X Series and Modero S Series touch panels.
• Standalone Power — Runs on 100–240 VAC through an IEC connector with the included MIC AC universal power cord, and does not draw PoE from the panel.
• Rack- or Surface-Mountable — Supports the optional MPA-VRK rack shelf and AC-SMB surface-mount bracket for clean commercial-grade installation.
• Three-Year Limited Warranty — Backed by an AMX 3-year limited warranty and CE, FCC, and UL certification.

Typical Applications

• Conference rooms where presenters preview laptops and room sources before switching to the main display
• Boardrooms running an Enova DVX or Enova DGX switcher with a Modero X control panel
• Training rooms that route multiple instructor and student sources to shared displays
• Multi-purpose rooms and divisible meeting spaces with several selectable AV sources
• Auditoriums and large presentation spaces where source confirmation reduces switching errors
• Houses of worship coordinating multiple video sources for in-room screens
• Government and command spaces requiring source preview before display routing

Technical Specifications

Frequently Asked Questions

Which touch panels is the MXA-MPL compatible with?
The MXA-MPL is designed for AMX Modero X Series and Modero S Series touch panels. Confirm the specific panel model before specifying it into a system.

Does the MXA-MPL require an Enova switcher?
Yes. It is built to operate alongside an Enova DVX all-in-one presentation switcher or an Enova DGX digital media switcher to provide live source preview on the panel.

How does video reach the touch panel?
The MXA-MPL converts the incoming source to an IP video stream of up to 720p and sends it to the panel over a 10/100 Ethernet connection with Ethernet/IP pass-through.

Does the MXA-MPL power the touch panel or provide PoE?
No. The unit is powered by its own IEC connection (100–240 VAC) and does not supply PoE to the panel. If your panel requires PoE, include a supported AMX PoE solution in the design.

What source types can it accept?
It accepts HDMI and DVI natively, and RGBHV, component, composite, or S-Video through an optional DVI connector adapter.

How is it mounted and supported?
The MXA-MPL can be rack-mounted with the optional MPA-VRK shelf or surface-mounted with the AC-SMB bracket, and it carries a 3-year limited AMX warranty. Contact Creation Networks for integration and specification support.
