AMX MU-1000 – MUSE Compact AV Controller with PoE and ICSLan
Product Overview
The AMX MU-1000 is the entry-level MUSE Series compact AV controller, designed for single-room installations requiring straightforward, reliable control without the I/O overhead of larger processors. It powers via 802.3at PoE, integrates with the AMX ecosystem, and is programmed using AMX's graphical MUSE environment.
Product Description
The AMX MU-1000 MUSE compact room controller delivers reliable AV system automation for conference rooms, huddle spaces, and classrooms with minimal infrastructure. As a PoE-powered AV controller, it eliminates the need for a separate power supply, reducing rack space and installation complexity in ceiling-mount or furniture-mount deployments. The dedicated ICSLan port provides a separate IP control path alongside the standard network connection, enabling more predictable network communication for device control. For integrators deploying small room AV control systems, the MU-1000 offers a lower-cost entry point than the NetLinx NX series while still supporting the full AMX programming ecosystem. I/O can be expanded via CE Series control extenders — including the CE-IRS4 for IR, CE-REL8 for relays, CE-COM2 for serial, and CE-IO4 for digital I/O — making the MU-1000 scalable beyond its minimal onboard port count.
Key Features
- PoE powered (802.3at) — No external power supply required in standard installations; simplifies above-ceiling and furniture mounting.

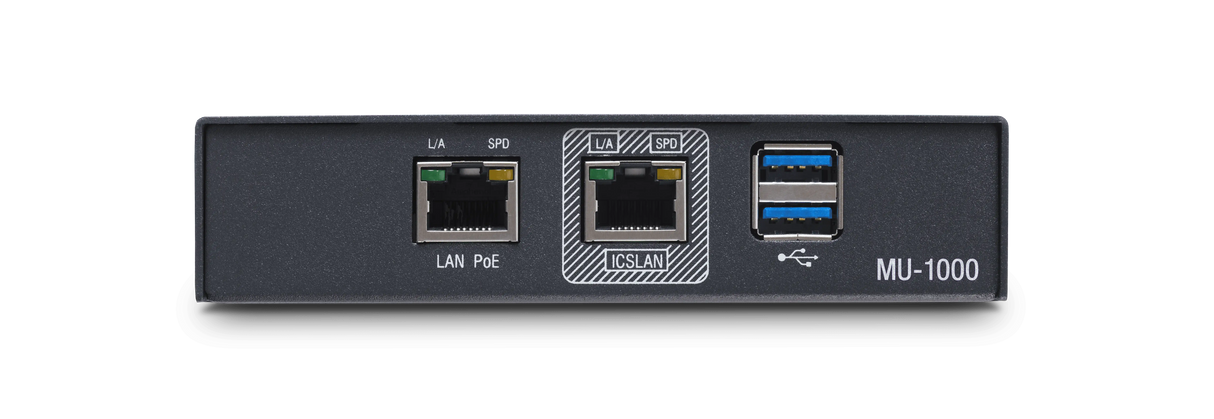

- ICSLan dedicated control port — Separate IP control port alongside standard LAN for more reliable device communication.
- MUSE graphical programming — Drag-and-drop environment; faster deployment than traditional script-based controllers for straightforward room AV.
- Compact form factor — Small chassis suited for above-ceiling, behind-display, or furniture-mount installation.
- Expandable via CE Series — Add IR, relay, serial, and digital I/O control extenders as room complexity grows.
- Full AMX ecosystem compatibility — Works with VARIA and Modero G5 touch panels, Massio and Metreau keypads, and DXLink AV distribution.
Typical Applications
- Small conference room AV control
- Huddle space and collaboration room
- Classroom AV control
- Single-zone display and source switching
- Ceiling-mount or above-tile AV controller deployment
Competitor Comparison
| Feature | AMX MU-1000 | Crestron CP4-N | Extron IPCP Pro 250 |
|---|---|---|---|
| PoE Powered | ✓ Yes (802.3at) | ✗ No — separate PSU required | ✗ No — separate PSU required |
| Programming Tool | MUSE (graphical) | Crestron Studio / SIMPL | Global Scripter (Python) |
| Dedicated Control NIC | ✓ ICSLan port | ✓ Yes | ✓ Yes |
| Onboard I/O | Minimal (CE extenders add I/O) | 8 COM, 8 IR, 8 relay, 8 I/O | 4 COM, 4 IR, 4 relay, 4 I/O |
| Form Factor | Compact / ceiling mount | 1RU rack-mount | Compact / ceiling mount |
| Best For | Simple rooms, PoE deployments | Complex multi-device rooms | Mid-complexity single rooms |
The MU-1000 is the most cost-effective entry in this comparison for simple single-room deployments where PoE simplicity and graphical programming matter most. Rooms requiring significant onboard I/O should consider the MU-1300 or MU-2300.
Technical Specifications
| Specification | Value |
|---|---|
| Power | PoE 802.3at or optional external PSU |
| Network | 10/100 Ethernet + ICSLan dedicated control port |
| Programming Environment | AMX MUSE |
| I/O Expansion | CE-IRS4, CE-REL8, CE-COM2, CE-IO4 extenders |
| Part Number / SKU | AMX-CCC000 |
What's in the Box
- AMX MU-1000 MUSE controller unit
- IEC power cord
- Quick start documentation
