AMX JPK-1300-UA Jetpack 3x1 Switching, Transport, and Control Solution (US & AU)

AMX SKU: AMX-VTK0001
No reviews
Price:
$1,776.00

Description

AMX Jetpack is an incredibly affordable switching, transport, and control solution for K12 classrooms and small-to-medium meeting spaces that provides simple to operate room controls, multiple video inputs, and enables voice lift for clear communication with everyone in the space. The JPK-1300 combines 4K60 4:2:0 HDMI and USB-C video switching and distance transport, room control, wallplate accessibility, and audio amplification in a kit that requires zero programming and provides the security and reliability that AMX is well known to provide.

The kit is fully loaded to support a wide range of classroom and meeting space applications and can be controlled through panel buttons, RS-232, Telnet, SSH, a Web GUI, and the Jetpack Manager application.

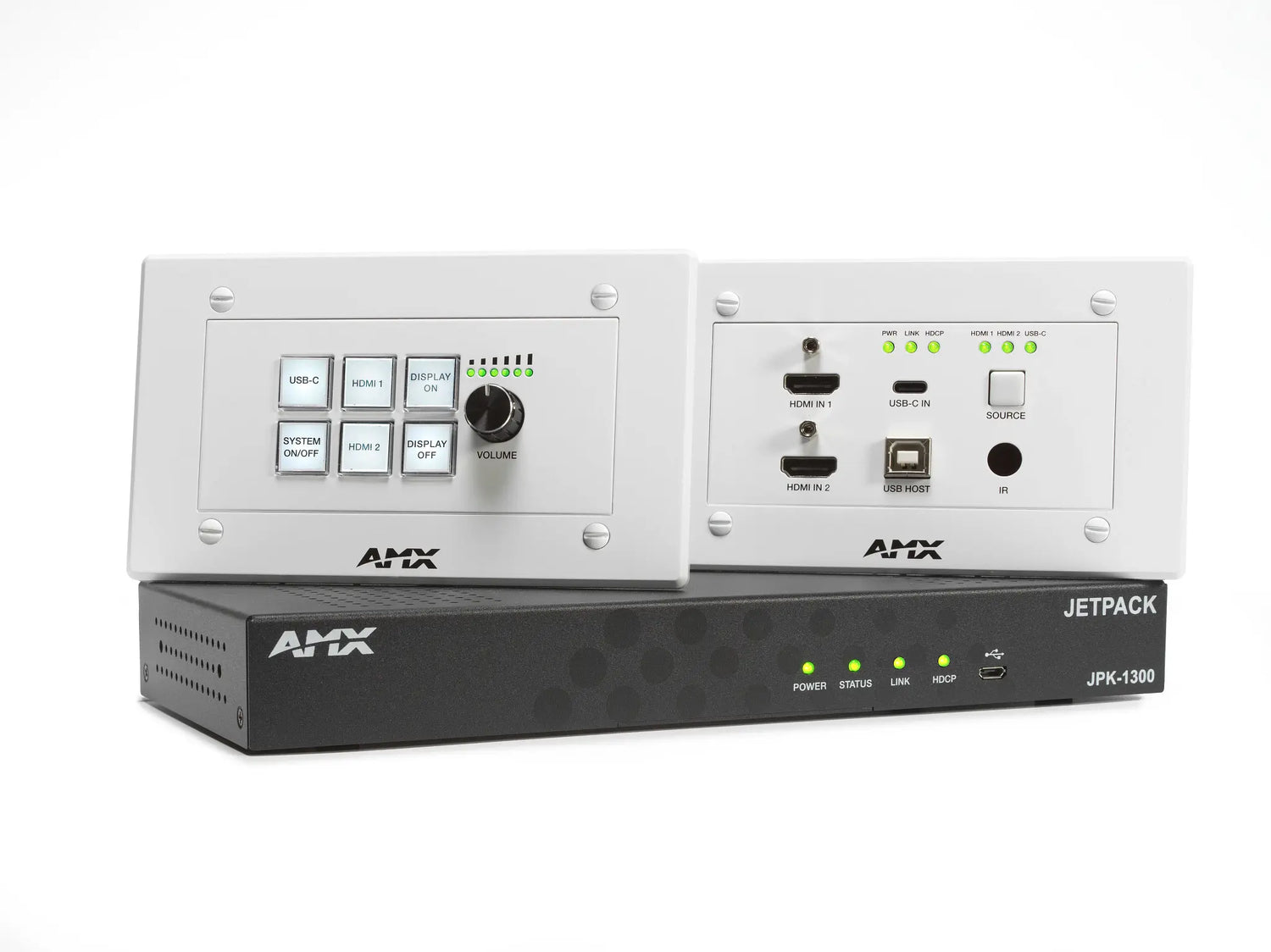

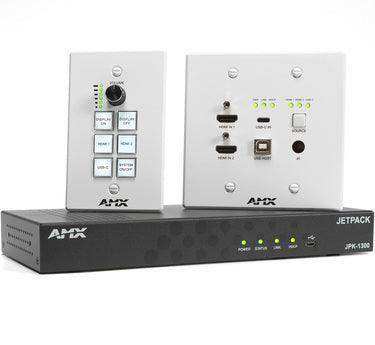

The kit includes:

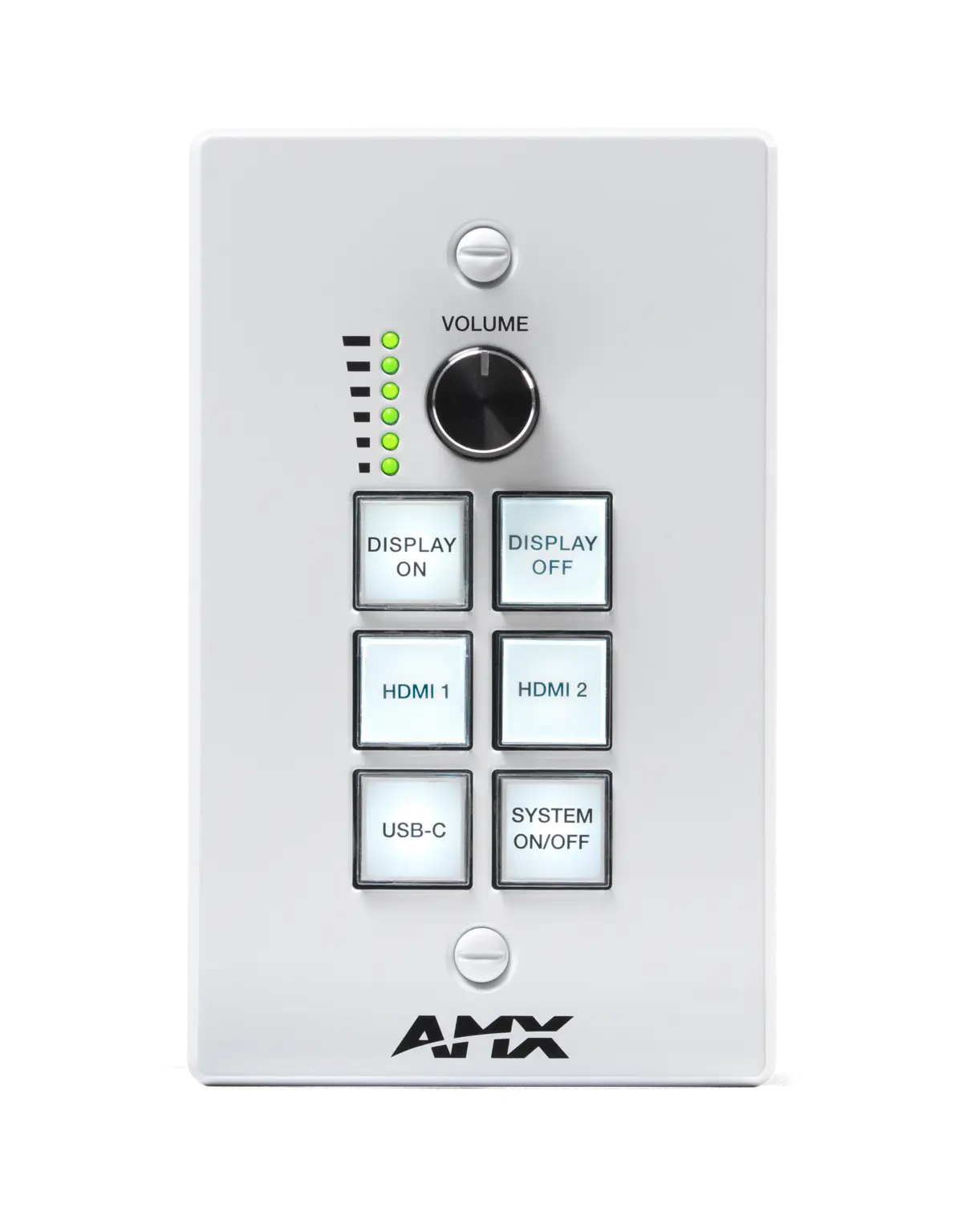

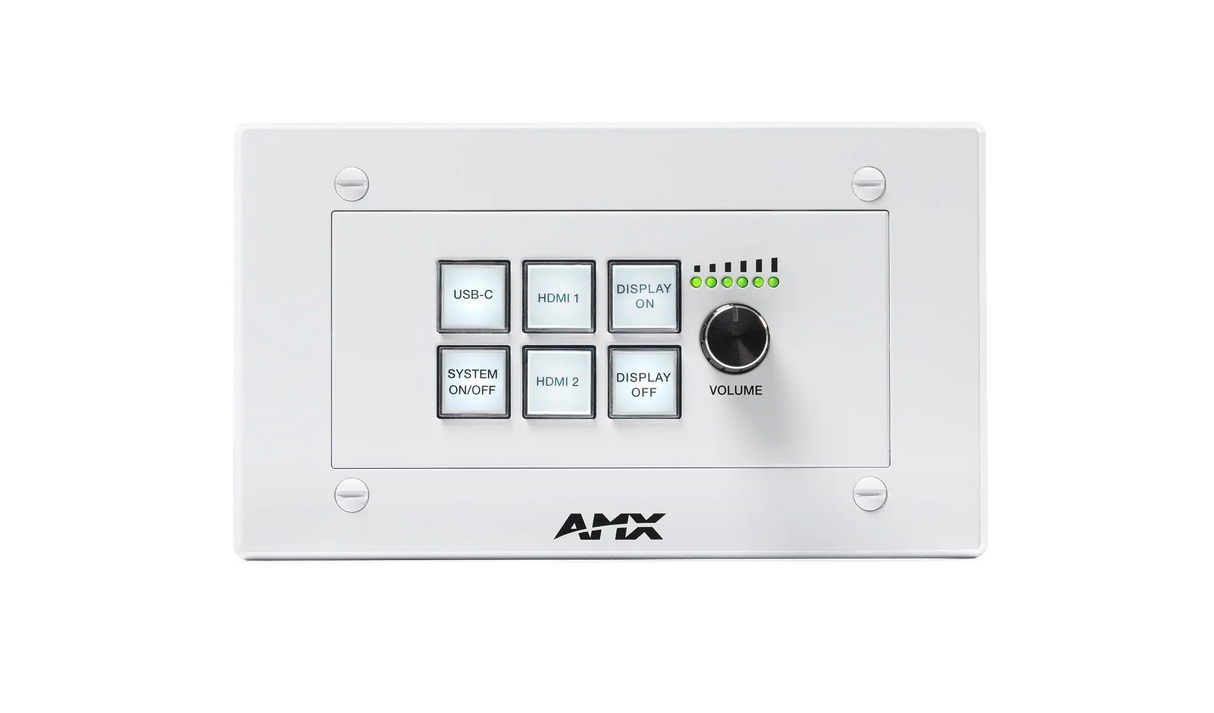

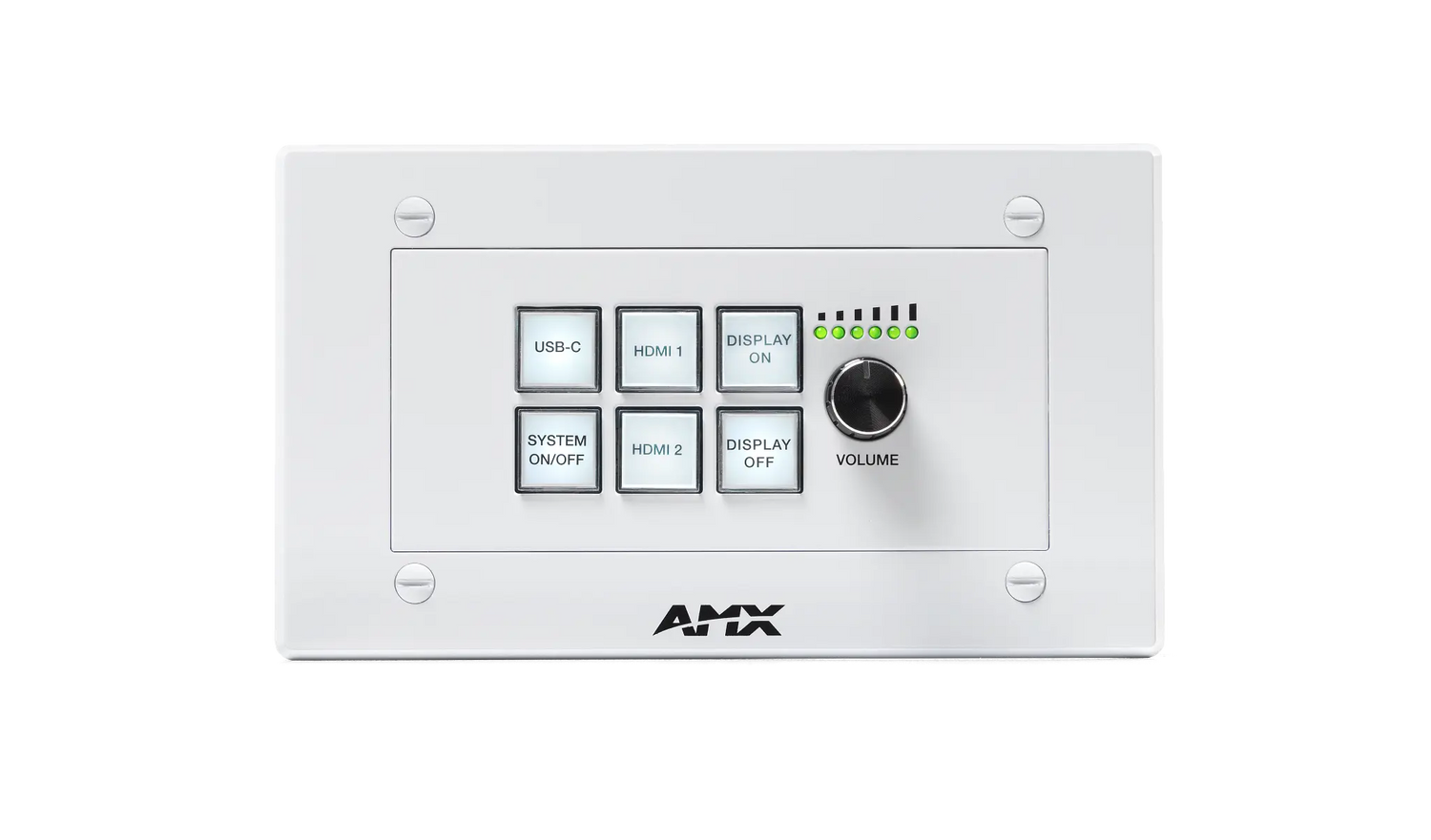

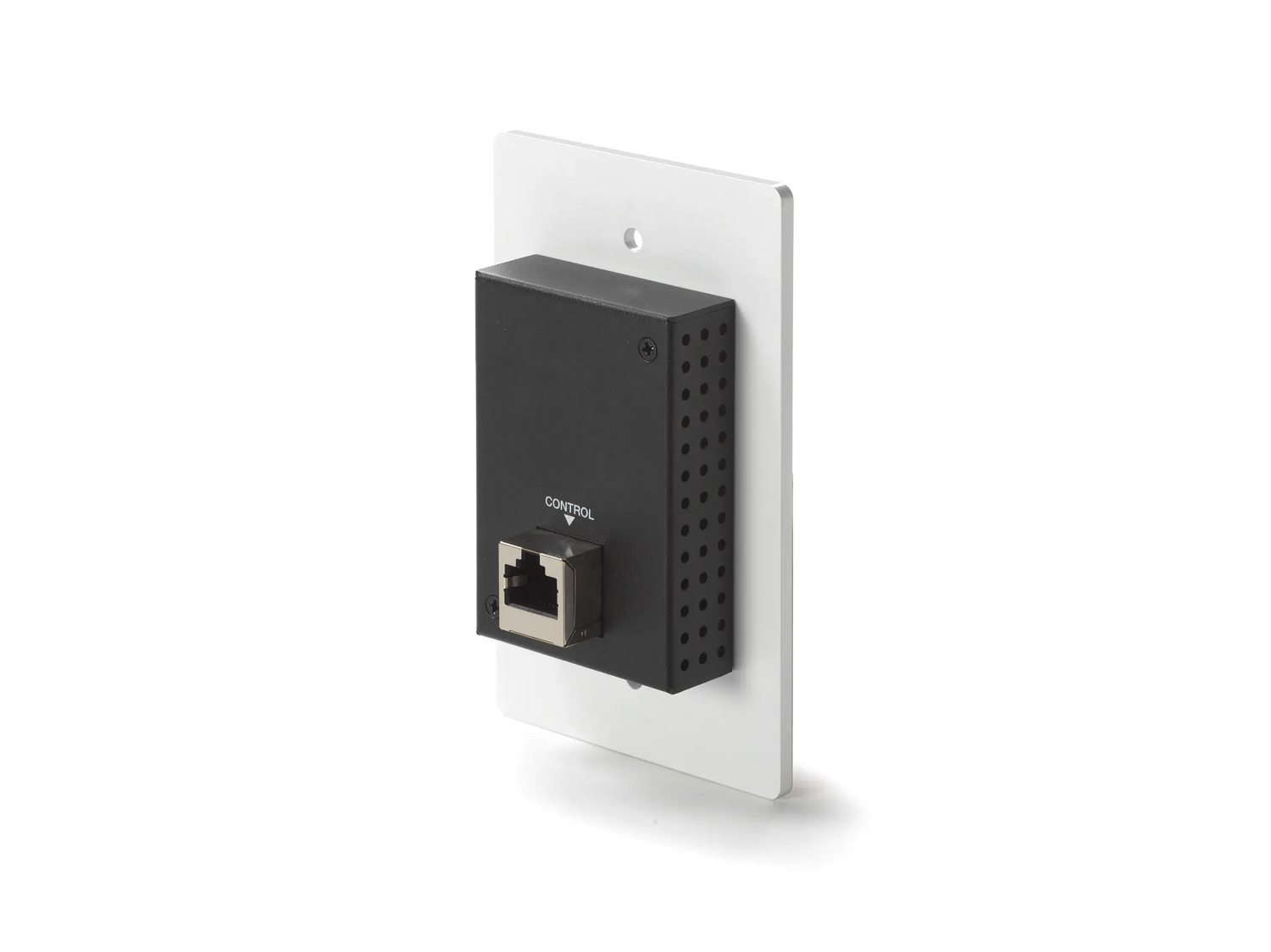

  • 6-Button Keypad with volume knob

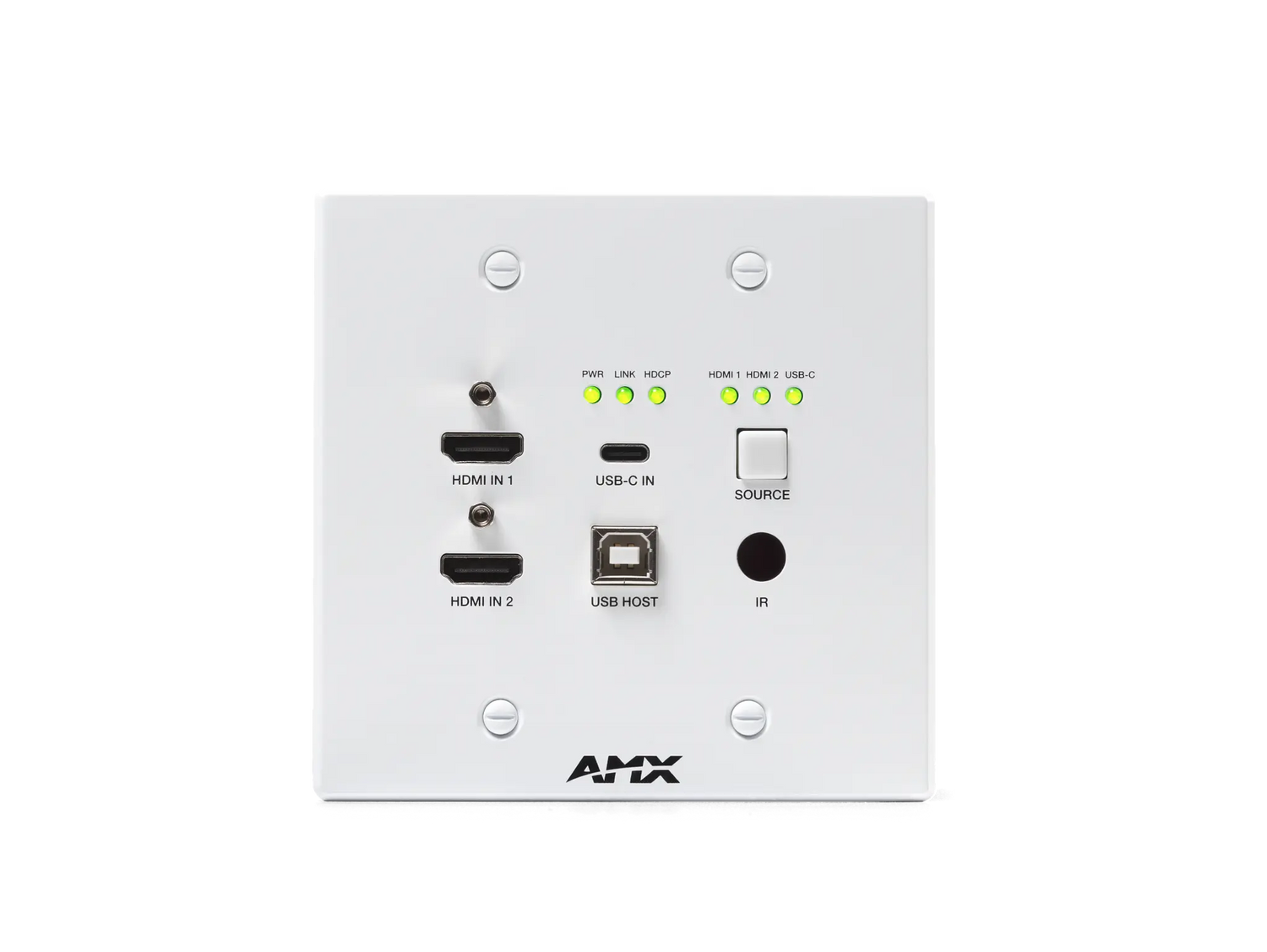

  • 3-Input Switching Wallplate Transmitter (2 HDMI, 1 USB-C) includes auto and manual switching modes, and support for transmission of uncompressed video and audio up to 40m/131ft at 4K or 70m/230ft at 1080P over shielded Cat 6/6A/7 cable

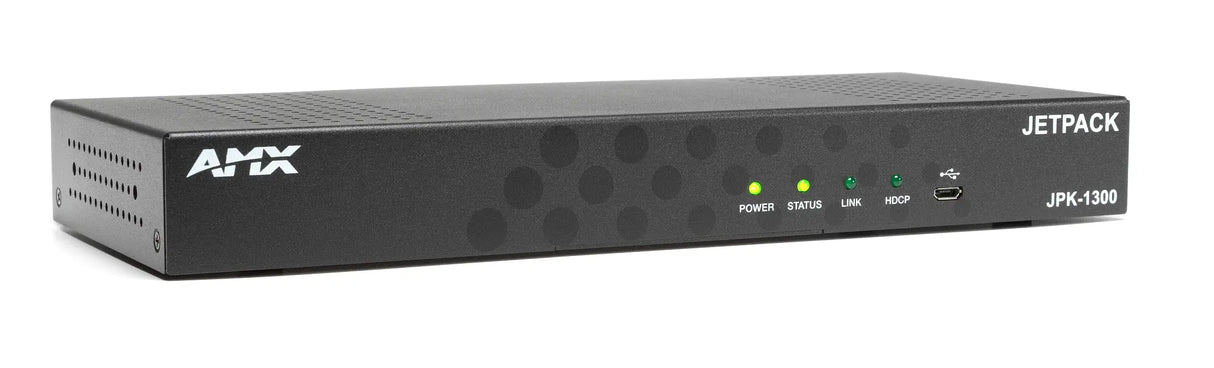

  • Multi-Function Receiver with Built-In 2x25W 4/8-ohm Amplifier, USB signal pass-through, RS232 control, Relay, IR, mic/line input, line out, remote mute, audio de-embedding, USB-AUDIO, ARC function, and CEC control (Embedded HDBaseT™ technology allows for full usage of HDMI and controls over Cat 6/6A/7 cable.)
  • Web Configuration for simplified installation
  • Jetpack Management PC tool included for campus wide room and device management

The kit is available in two models – JPK-1300-UA (US/AU version) and JPK-1300-EK (EU/UK version). It is the ideal solution for K12 and other education applications as well as enterprise and hospitality venues needing affordable, multi-functional A/V support for classrooms and small-to-medium meeting spaces that could benefit from a bundled product offering 4K60 video transmission and switching, room and device control, audio amplification, simplified web configuration and campus management.
  • 4K60, HDMI 2.0, and HDCP 2.2 Support – Supports video resolution up to 4K@50/60Hz 4:2:0, 10.2Gbps video bandwidth
  • USB-C and HDMI Video Inputs – Transmitter includes 2x HDMI and 1x USB-C video inputs
  • HDBT Distance Transport – HDBT transmits lossless and zero-delay video & audio up to 131ft/40m for 4K or 230ft/70m for 1080P via a Shielded Cat 6/6A/7 cable
  • USB Pass-Through – Built-in USB-C and USB-B Host 2x1 USB Hub with pass-through to simplify connectivity to smart boards
  • Audio Amplifier – Built-In 2x25W 4/8-ohm Amplifier
  • Comprehensive Audio Features– USB2.0 audio on USB-C input, Mic/Line Input, Line Output, HDMI Audio Extraction, ARC support, and Remote Mute
  • Power Over Cable (PoC) – A single power supply connected to the Receiver powers the entire solution
  • Included Campus Management Software– Jetpack Management Tool PC Software makes it easy to discover and manage all your AMX Jetpack kits on the same network
  • Simplified Room Control – Control the display or projector and a screen from built-in control ports on the RX or CEC
Video Inputs JPK-1300 TX
  • (2) HDMI; supports HDMI/HDCP
  • (1) USB-C; supports HDMI/HDCP
Video Outputs JPK-1300 RX
  • (1) HDMI; supports HDMI/HDCP
Video Resolution Support Various up to 4096 x 2160@ 60 Hz - Reference Data Sheet for Specific Resolution Support
Audio Inputs JPK-1300 TX
  • (2) HDMI; Embedded audio on HDMI; supports 2 CH L-PCM de-embedding and pass-through of PCM 2-Channel
  • (1) USB-C; Embedded audio on HDMI; supports 2 CH L-PCM de-embedding and pass-through of PCM 2-Channel; USB 2.0 Audio
JPK-1300 RX
  • (1) MIC/LINE; analog audio
Audio Outputs JPK-1300 RX
  • (1) AMP OUT, 2x25W 4/8 Ohm
  • (1) AUDIO OUT, 2 channel analog line level audio output
USB Pass-Through Bandwidth Maximum Supported: 220 Mbps
Ports JPK-1300 TX
  • (2) HDMI Type A Port (Audio, Video)
  • (1) USB Type C Port (Audio, Video, USB 2.0)
  • (1) USB Type B Port (USB Host)
  • (1) MICRO USB Port (Program)
  • (1) RJ-45; (AV Link - Connection to RX)
  • (1) RJ-45; (Control - Connection to Keypad)

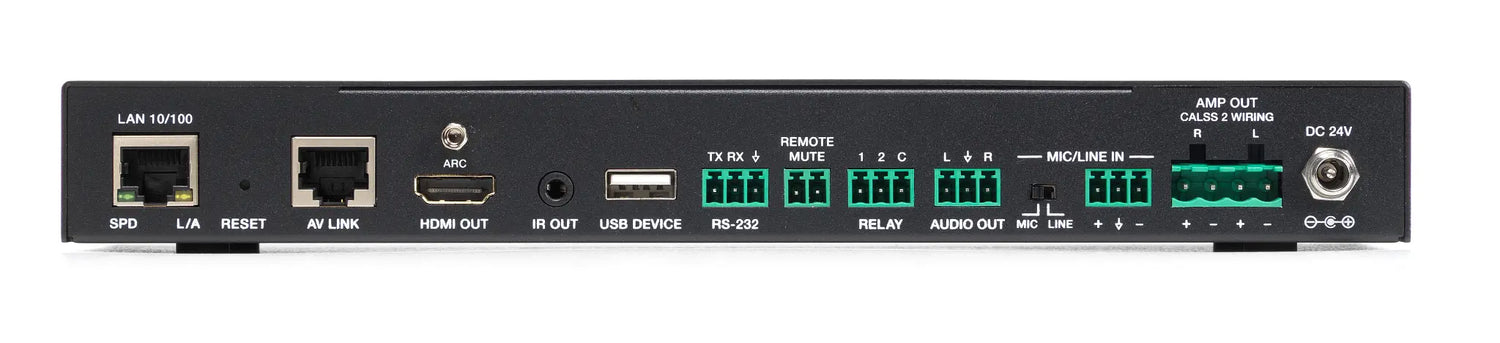

JPK-1300 RX
  • (1) Screw Down Locking Power Connector (DC Power)
  • (1) HDMI Type A Port (Audio, Video)
  • (1) USB Type A Port (USB Device)
  • (1) MICRO USB Port (Program)
  • (1) 3.5 mm Mini-Stereo Jack (IR Out)
  • (1) RJ-45 Connector, TCP/IP Port (LAN 10/100)
  • (1) RJ-45 (AV Link – Connection to TX)
  • (1) 3-pin 3.81 mm pluggable Phoenix Terminal Blocks (RS-232)
  • (1) 3-pin 3.81 mm pluggable Phoenix Terminal Blocks (Relays)
  • (1) 2-pin 3.81 mm pluggable Phoenix Terminal Blocks (REMOTE MUTE)
  • (1) 3-pin 3.81 mm pluggable Phoenix Terminal Blocks (Audio Out)
  • (1) 4-pin 5.08 mm pluggable Phoenix Terminal Blocks (AMP OUT)
  • (1) 3-pin 3.81 mm pluggable Phoenix Terminal Blocks (MIC/LINE IN)
Environmental Temperature (Operating): 32°F (0°C) to 104°F (40°C)
Temperature (Storage): -4°F (-20°C) to 140°F (60°C)
Humidity (Operating): 20% to 90% RH (non-condensing)
Humidity (Storage): 20% to 90% RH (non-condensing)
Thermal Dissipation (Typical): JPK-1300 Kit, 80 Watts BTU/hr
Regulatory Compliance FCC Part 15 Class B
EN 55032
EN 55035
CB IEC/EN 60950
CB IEC/EN 62368-1
UL 62368-1
RoHS/REACH
EMC (Australia)
EMC (Canada)
EMC (UKCA)
Prop65
Dimensions (H x W x D) UA version:
  • Keypad:
    Front panel: 70mm x 114mm x 22.2mm / 2.76” x 4.49” x 0.87”

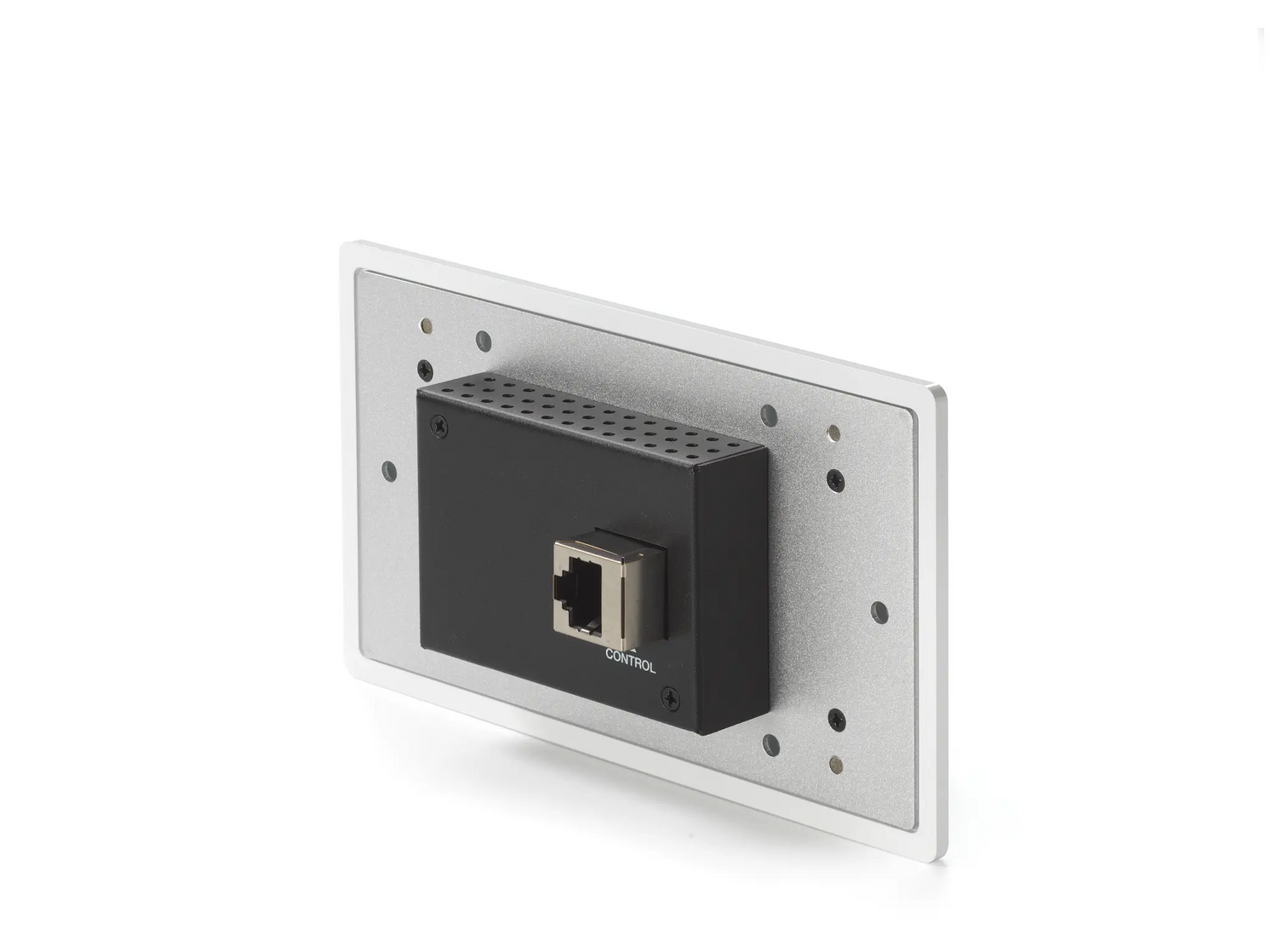

    Rear case: 69.4mm x 48.4mm x 17.2mm / 2.73” x 1.91” x 0.68”

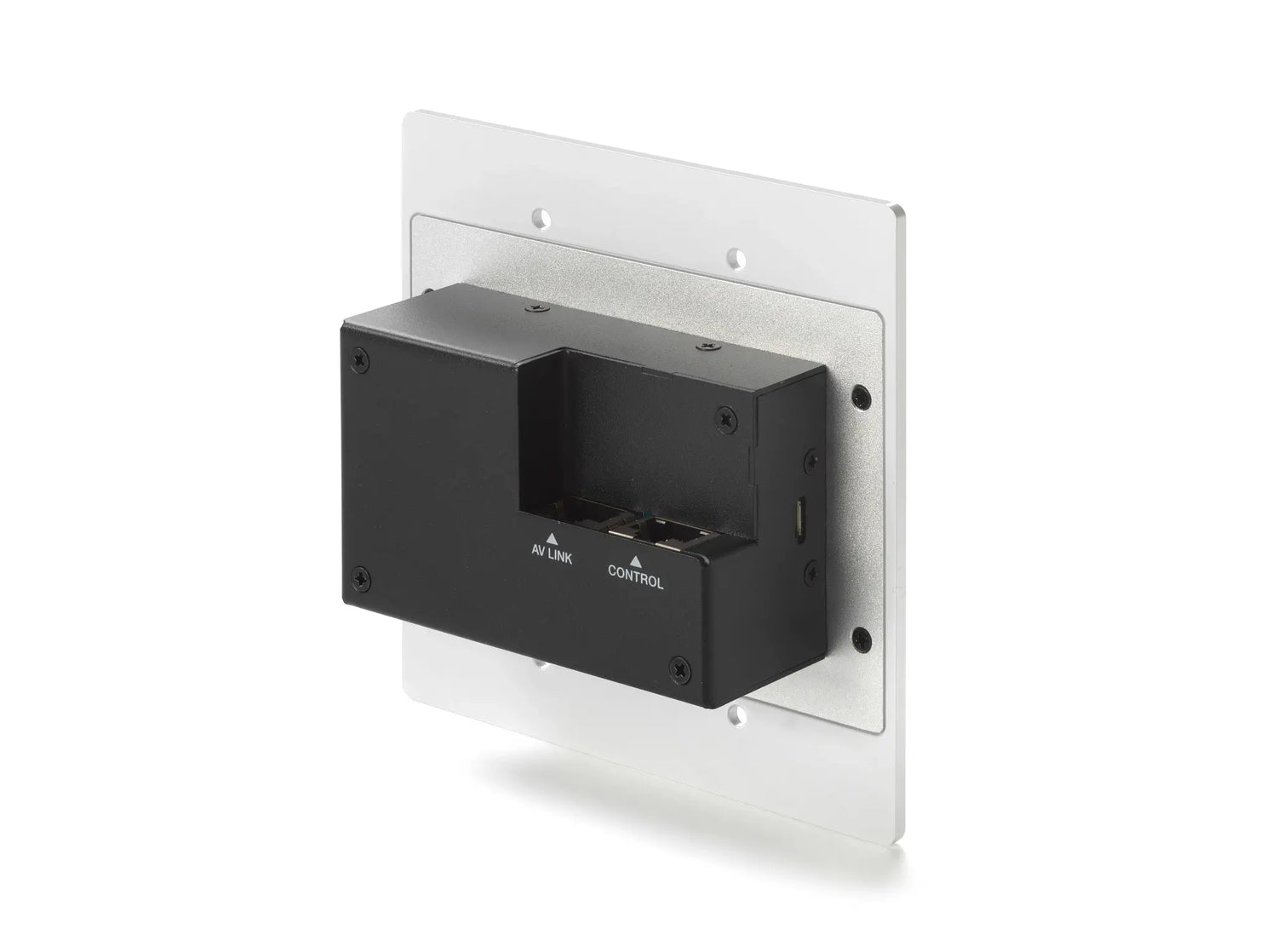

  • Wall-plate Transmitter:
    Front panel: 116mm x 114mm x 39.2mm / 4.57” x 4.49” x 1.54”
    Rear case: 85.8mm x 52.6mm x 34.2mm / 3.38” x 2.07” x 1.35”
  • Receiver: 250mm x 30mm x 104mm / 9.84” x 1.18” x 4.09”
EK version:
  • Keypad:
    Front panel: 146mm x 85mm x 22.2mm / 5.75” x 3.35” x 0.87”
    Rear case: 69.4mm x 48.4mm x 17.2mm / 2.73” x 1.91” x 0.68”
  • Wall-plate Transmitter:
    Front panel: 146mm x 85mm x 39.2mm / 5.75” x 3.35” x 1.54”
    Rear case: 85.8mm x 52.6mm x 34.2mm / 3.38” x 2.07” x 1.35”
  • Receiver: 250mm x 30mm x 104mm / 9.84” x 1.18” x 4.09”
Weight UA version:
  • Keypad: 0.19kg/0.42lb
  • Wall-plate Transmitter: 0.35kg/0.77lb
  • Receiver: 0.81kg/1.79lb
EK version:
  • Keypad: 0.23kg/0.51lb
  • Wall-plate Transmitter: 0.33kg/0.73lb
  • Receiver: 0.81kg/1.79lb
FG Numbers AMX-VTK-0001 (JPK-1300-UA)
AMX-VTK-0001-EK (JPK-1300-EK)
