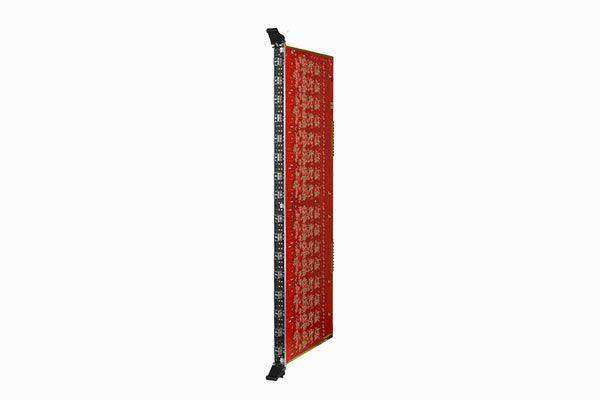

AMX EPICADGX288-VIO-SMF-S – Epica DGX 288 Single-Mode Fiber I/O Board (Simplex)

Product Overview

The AMX EPICADGX288-VIO-SMF-S is a simplex single-mode fiber input/output board for the Epica DGX 288 modular matrix switcher, enabling uncompressed AV signal distribution over single-mode fiber at distances up to 10 km. Each board provides 16 bi-directional connections — functioning as a full 16x16 matrix per slot — and is designed for large-scale commercial AV, government command center, and broadcast infrastructure deployments requiring long-distance, lossless fiber transport. The board is compatible with AMX DXLink Multi-Format Simplex Transmitters and DXLink HDMI Simplex Receivers, and interoperates with Enova DGX systems using simplex fiber boards for cross-system signal routing.

Product Description

The EPICADGX288-VIO-SMF-S (FG1055-520) installs into the Epica DGX 288 Enclosure and delivers a full 16x16 matrix of single-mode fiber connections per board, with each port serving as both an input and an output. Up to 18 boards can be installed in a single Epica DGX 288 chassis, enabling configurations up to a full 288x288 matrix. Single-mode fiber (9/125 mm) supports transmission distances up to 6.21 miles (10 km), making this board ideal for campus-wide AV distribution, inter-building signal routing, and large venue infrastructure. The board supports HDMI with HDCP and embedded audio, with audio format compatibility covering Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, and up to 8-channel L-PCM. SmartScale Technology on compatible DXLink Fiber Receivers automatically scales output resolution to each display's native EDID, ensuring compatibility across diverse display environments without manual intervention. Simplex fiber boards can also exchange signals with AMX Enova DGX systems, making the Epica DGX 288 a viable central distribution hub in multi-system enterprise or broadcast AV installations.

Key Features

• Full 16x16 Per Board: Each board provides 16 bi-directional simplex fiber connections, functioning as a complete 16x16 matrix in a single chassis slot.
• Single-Mode Fiber up to 10 km: Supports transmission over 9/125 mm single-mode fiber at distances up to 6.21 miles — ideal for inter-building and campus-scale AV distribution.
• Uncompressed AV Transport: Passes pixel-perfect, uncompressed video and embedded audio with zero latency and zero signal degradation over fiber.
• HDMI with HDCP Support: Full HDCP compliance for secure distribution of protected content in commercial AV environments.
• Multi-Format Audio: Carries Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, and 2 CH through 8 CH L-PCM embedded in the fiber signal.
• SmartScale Receiver Compatibility: Paired DXLink Fiber Receivers auto-scale video to each display's native EDID, eliminating resolution mismatch across multi-display systems.
• Enova DGX Interoperability: Can receive and send signals to Enova DGX systems with simplex fiber boards, enabling cross-system routing in large AV infrastructures.
• Hot-Swap Ready: Designed for the Epica DGX 288's field-serviceable architecture, supporting individual board replacement without full system shutdown.

Typical Applications

• Government Command Centers: Long-distance, secure fiber signal distribution across secured facilities and multi-building government campuses.
• Broadcast Studios: High-density, uncompressed fiber routing for live production and multi-studio distribution at broadcast scale.
• Enterprise AV Infrastructure: Campus-wide AV signal routing between buildings using single-mode fiber at extended distances.
• Auditoriums and Large Venues: Multi-zone AV distribution from a central matrix to remote display and audio zones across large facilities.
• Training Rooms and Multi-Purpose Rooms: Scalable fiber matrix infrastructure for large corporate or educational campuses with distributed AV requirements.

Technical Specifications

Frequently Asked Questions

How many EPICADGX288-VIO-SMF-S boards can be installed in the Epica DGX 288 Enclosure?

Up to 18 boards can be installed in the Epica DGX 288 Enclosure, enabling a full 288x288 single-mode fiber matrix. Each board adds a 16x16 block of routing capacity.

Can single-mode and multimode fiber boards be mixed in the same Epica DGX 288 chassis?

Yes. The Epica DGX 288 Enclosure supports simultaneous use of single-mode (SMF-S) and multimode (MMF-S) fiber boards in the same chassis, with all inputs routable to any output regardless of board type.

What transmitters and receivers are compatible with this board?

The EPICADGX288-VIO-SMF-S is compatible with AMX DXLink Multi-Format Simplex Transmitters and DXLink HDMI Simplex Receivers. It also interoperates with Enova DGX systems using simplex fiber boards.

Is this board TAA compliant for government procurement?

Confirm TAA compliance status with your procurement team and Creation Networks before specifying for federal or DOD installations. Contact us at 1-888-230-3661 for guidance.

What installation and programming support is available?

Creation Networks provides full pre-sales design, integration, and post-sale technical support for Epica DGX 288 deployments nationwide. Contact our team for project scoping and expert assistance.
