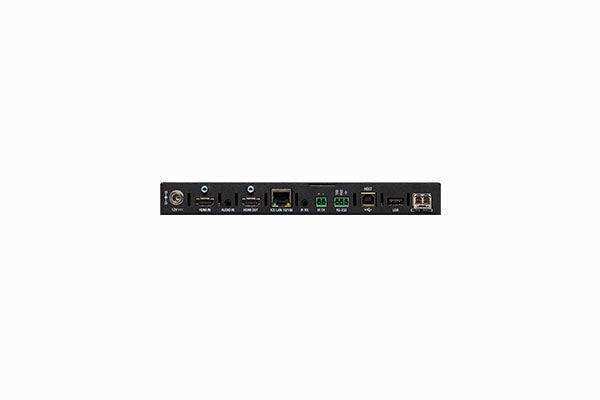

AMX DXFP-TX-4K60-TAA – DXLink 4K60 HDMI Fiber Transmitter (TAA Compliant)

Product Overview

The AMX DXFP-TX-4K60-TAA is the Trade Agreements Act-compliant version of the DXLink 4K60 HDMI Fiber Transmitter, functionally identical to the DXFP-TX-4K60 and required for federal government, DoD, and other TAA-mandated procurement environments. It transmits 4K60 4:4:4 HDMI video, audio, control, USB 2.0, and Ethernet over duplex fiber to a paired DXLink 4K60 Fiber Receiver or Enova DGX DXLink 4K60 Fiber input board at distances up to 300 m over multimode fiber, with field-replaceable SFP for single-mode extended runs.

Product Description

The DXFP-TX-4K60-TAA (FG1010-365-02) provides all the capabilities of the standard DXFP-TX-4K60 with the country-of-origin TAA compliance certification required for government procurement. It accepts HDMI 2.0 source input at up to 4K@60 Hz 4:4:4 8-bit and transmits over fiber with HDCP 1.4 and 2.2 compliance, HDR10, and 36-bit Deep Color. The included MMD SFP supports 300 m OM3 multimode runs and is field-replaceable with an SMD module for single-mode extended distances. USB HID and high-speed USB 2.0 extension over fiber enables peripheral devices at the transmitter to be accessed at the remote receiver location without additional USB cabling infrastructure.

Key Features

• TAA Compliant: Meets Trade Agreements Act requirements for federal, DoD, and government procurement mandates.
• 4K60 4:4:4 HDMI 2.0 Over Fiber: Full 4K60 chroma with HDMI 2.0 and HDCP 1.4/2.2 compliance.
• HDR10 and 36-Bit Deep Color: Full premium content fidelity from source to display.
• Up to 300 m Over Multimode Fiber: Included MMD SFP, field-replaceable with SMD for extended single-mode runs.
• USB 2.0 Extension Over Fiber: Point-to-point HID and high-speed USB 2.0 without separate USB hardware.
• HDCP 1.4 and 2.2: End-to-end content protection for government and broadcast environments.
• Enova DGX Compatible: Works with Enova DGX DXLink 4K60 Fiber input boards in matrix switcher systems.

Typical Applications

• Government Command Centers: TAA-compliant 4K60 fiber transmitter for DoD and federal AV infrastructure.
• Government Space: Secure HDMI-to-fiber source distribution in classified government facilities.
• Boardroom: TAA-compliant 4K60 source distribution for government executive meeting rooms.
• Conference Room: Long-distance secure HDMI fiber transport in government facilities.

Technical Specifications

Frequently Asked Questions

Why choose the DXFP-TX-4K60-TAA over the standard model?

The TAA version is required for federal, DoD, and procurement contracts with TAA compliance mandates. It is functionally identical to the DXFP-TX-4K60. Select the standard model when TAA compliance is not a requirement.

What receiver is paired with the DXFP-TX-4K60-TAA?

The DXFP-TX-4K60-TAA pairs with the DXFP-RX-4K60-TAA receiver for a fully TAA-compliant fiber transport kit, or with Enova DGX DXLink 4K60 Fiber input boards.

Can the SFP be replaced for longer fiber runs?

Yes. The included MMD SFP can be replaced with an SMD single-mode SFP in the field for runs beyond 300 m without returning the unit for service.
