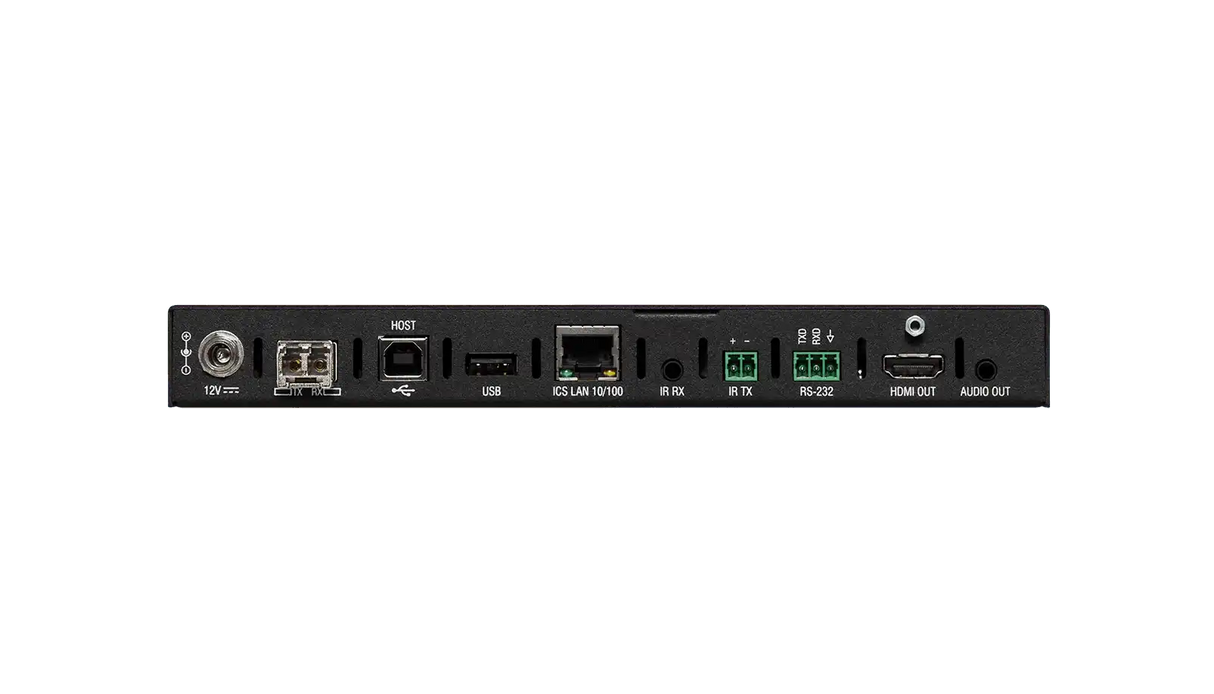

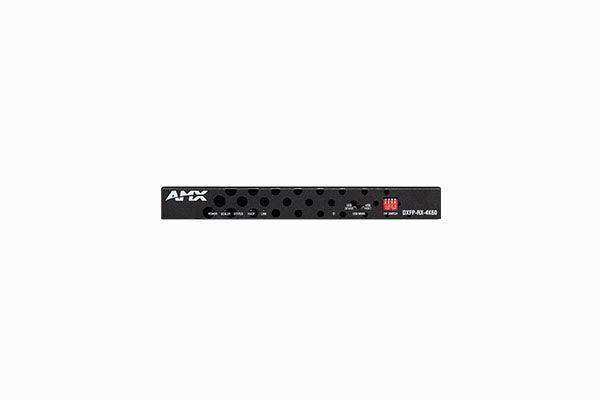

AMX DXFP-RX-4K60 – DXLink 4K60 HDMI Fiber Receiver

Product Overview

The AMX DXFP-RX-4K60 is a DXLink 4K60 HDMI fiber receiver supporting HDMI 2.0 and HDCP 2.2 for 4K60 4:4:4 signal reception, HDR10, 36-bit Deep Color, USB 2.0 extension, and full control and Ethernet transport over duplex fiber from a paired DXLink 4K60 Fiber Transmitter or compatible Enova DGX output card at distances up to 300 m. Designed for commercial AV environments requiring secure, long-distance 4K signal distribution to individual displays, the DXFP-RX-4K60 ships with a multimode duplex (MMD) SFP that can be field-replaced with a single-mode duplex (SMD) SFP for longer runs, providing flexibility across a wide range of AV infrastructure configurations.

Product Description

The AMX DXFP-RX-4K60 receives 4K60 4:4:4 HDMI video, embedded audio, bidirectional control, USB 2.0, and Ethernet over duplex fiber from AMX DXLink 4K60 Fiber Transmitters (DXFP-TX-4K60) or compatible Enova DGX DXLink 4K60 Fiber output boards (DGX-O-DXF-4K60), with the included MMD SFP supporting runs up to 300 m on OM3 multimode fiber. Fiber transport provides inherent electrical isolation and immunity to electromagnetic interference, making it the preferred choice for mission-critical, government, broadcast, and secure commercial AV installations where copper-based transport introduces noise or security concerns. HDR10 and 36-bit Deep Color support ensures full compatibility with premium content and displays, and USB 2.0 HID and high-speed USB extension supports webcams, USB storage, and other USB devices point-to-point between transmitter and receiver without separate USB over IP infrastructure. Scaler mode supports 4K resolutions at 4:4:4 up to 4096×2160@60 Hz; bypass mode passes native 4K HDR content at full quality. HDCP 1.4 and 2.2 compliance provides end-to-end content protection for commercial and broadcast deployments. The receiver is powered by an included desktop power supply and features LC Duplex fiber input, HDMI output, USB, RS-232, IR, and Ethernet rear connectors for full AV and control system integration.

Key Features

• 4K60 4:4:4 HDMI 2.0 Over Fiber: Full 4K60 at 4:4:4 chroma with HDMI 2.0 and HDCP 2.2 compliance for premium commercial display installations.
• HDR10 and 36-Bit Deep Color: Full HDR10 pass-through and 36-bit Deep Color for the highest-quality 4K image reproduction.
• Up to 300 m Over Multimode Fiber: Included MMD SFP supports OM3 multimode fiber runs to 300 m; field-replaceable with SMD SFP for single-mode extended runs.
• USB 2.0 Extension Over Fiber: HID and high-speed USB 2.0 transport point-to-point for webcams, storage, and control devices without separate USB infrastructure.
• Fiber Security and Isolation: Light-based transport is immune to electromagnetic interference and physical wiretapping — preferred for secure and mission-critical AV environments.
• Bidirectional Control and Ethernet: Full control and network data transport over fiber alongside AV signals — no separate control cable run required.
• HDCP 1.4 and 2.2 Support: End-to-end content protection for commercial, broadcast, and enterprise AV deployments.
• Compatible with Enova DGX: Direct compatibility with Enova DGX 800/1600/3200/6400 DXLink 4K60 Fiber output boards and DXLink 4K60 Fiber transmitters.

Typical Applications

• Government Command Centers: Secure 4K fiber signal distribution to individual display endpoints across mission-critical AV environments.
• Broadcast Studios: High-quality 4K60 4:4:4 signal delivery from central matrix switchers to studio monitors and production displays.
• Conference Room: Long-distance 4K display connectivity from a central Enova DGX or DXLink transmitter in an equipment room to a remote conference display.
• Boardroom: Premium 4K HDR display connectivity with full content protection and USB device extension for collaboration hardware.
• Auditorium: Reliable 4K fiber distribution to remote display positions across large auditorium installations.

Technical Specifications

Frequently Asked Questions

What fiber type and distance does the DXFP-RX-4K60 support?

The receiver ships with an MMD SFP supporting OM3 multimode fiber up to 300 m. For longer distances, the SFP can be field-replaced with a compatible Single-Mode Duplex (SMD) SFP. Contact Creation Networks at 1-888-230-3661 to confirm SFP options for your specific run length.

What transmitters are compatible with the DXFP-RX-4K60?

The DXFP-RX-4K60 is compatible with AMX DXLink 4K60 Fiber Transmitters (DXFP-TX-4K60 and DXFP-TX-4K60-TAA) and Enova DGX DXLink 4K60 Fiber output boards (DGX-O-DXF-4K60) for use in Enova DGX matrix switcher systems.

Does the DXFP-RX-4K60 pass USB over fiber?

Yes. The receiver supports USB HID and high-speed USB 2.0 extension point-to-point over fiber between the transmitter and receiver, enabling use of webcams, USB storage, and other USB devices at the remote display location without additional USB over IP hardware.

Is the DXFP-RX-4K60-TAA a different product?

The DXFP-RX-4K60-TAA is the TAA-compliant version of the receiver, required for federal government and DoD procurement. It is functionally identical to the standard DXFP-RX-4K60.
