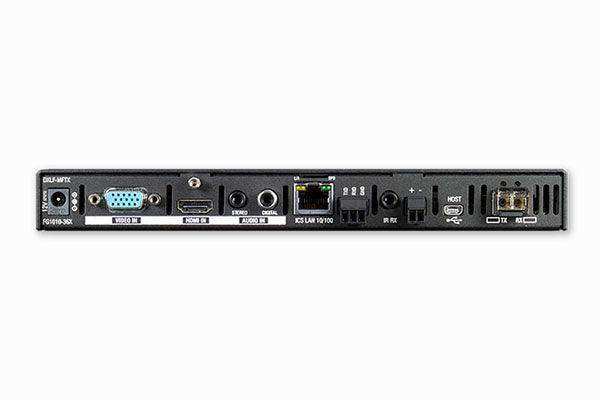

AMX DXF-TX-MMS – DXLink Multimode Fiber Transmitter (Simplex)
AMX DXF-TX-MMS – DXLink Multimode Fiber Transmitter (Simplex)
Product Overview
The AMX DXF-TX-MMS is a multi-format DXLink multimode fiber transmitter with simplex connectivity for one-directional HDMI/HDCP and analog multi-format video distribution over OM3 50/125 µm multimode fiber at distances up to 300 m. The simplex design transports video and audio over fiber without a bidirectional control return path — suitable for installations where control is managed through a supplemental network connection or is not required at the remote endpoint. It accepts HDMI/HDCP, RGBHV, Component, S-Video, and Composite sources from the same unit and is compatible with Enova DGX fiber input boards and DXLink multimode fiber receivers.
Product Description
The AMX DXF-TX-MMS is a DXLink multi-format multimode fiber transmitter in simplex configuration, extending audio, video, control, and Ethernet signals from an Enova DGX matrix input board or local source to a DXLink fiber receiver over a single multimode fiber strand. The simplex design uses a single fiber for signal transmission, reducing fiber infrastructure requirements in installations where a dedicated fiber run is available. It is designed for commercial AV systems requiring fiber signal extension beyond the 100-meter limit of twisted pair, in facilities with existing multimode fiber infrastructure.
Key Features
- OM3 Multimode Simplex Fiber up to 300 m: 50/125 µm multimode simplex for intra-building AV distribution without bidirectional control.
- Multi-Format Video Input: HDMI/HDCP and analog multi-format (RGBHV, Component, S-Video, Composite).
- HDCP InstaGate Pro: Uninterrupted HDMI/HDCP key management.
- Multi-Format Audio: Dolby TrueHD, DTS-HD MA, Dolby Digital, DTS, 2–8 CH L-PCM.
- USB HID Extension: USB Mini A/B for USB device pass-through.
Typical Applications
- Enterprise AV Infrastructure: Intra-building simplex fiber source distribution to central matrix switching.
- Conference Room: Multimode fiber source transport where control return is handled via network.
- Broadcast Studios: Simplex multimode fiber source input to Enova DGX systems.
Technical Specifications
| Specification | Detail |
|---|---|
| Fiber Type | Multimode — OM3 50/125 µm |
| Max Distance | 300 m (984 ft.) |
| Fiber Direction | Simplex — one-directional (no control return) |
| HDMI Input | HDMI, HDCP, DVI; up to 1920×1200@60 Hz |
| Analog Video Input | HD-15 — RGBHV, Component, S-Video, Composite |
| Audio | Dolby TrueHD, DTS-HD MA, DTS, Dolby Digital, 2–8 CH L-PCM |
