Product Overview

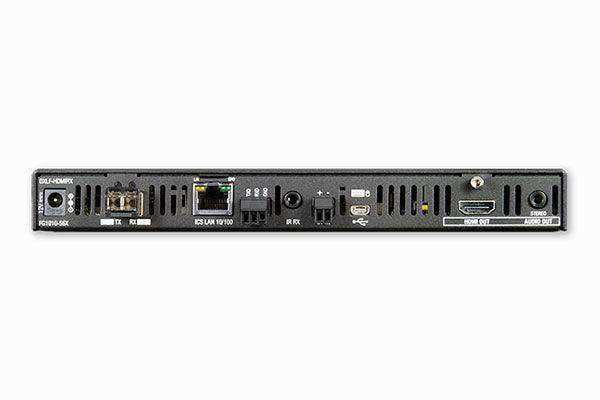

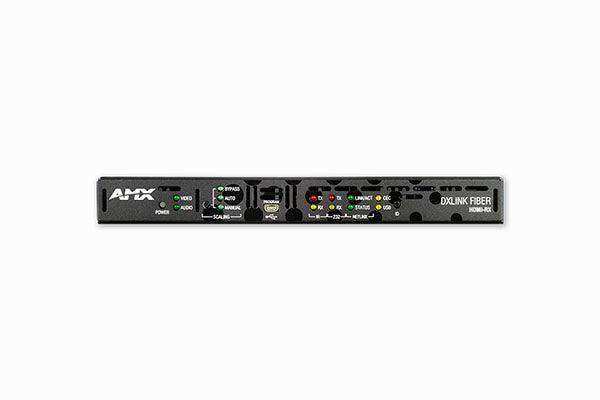

The AMX DXF-RX-MMD is a DXLink multimode fiber receiver with duplex connectivity for intra-building AV distribution over OM3 50/125 µm multimode fiber at distances up to 300 m. As a duplex model, it supports bidirectional control transport over fiber — including Ethernet, RS-232, IR, and USB HID return signals — from a compatible DXLink multimode duplex transmitter or Enova DGX fiber output board. It delivers clean HDMI output at the remote display with SmartScale auto-scaling for seamless multi-display compatibility.
Product Description
The AMX DXF-RX-MMD extends audio, video, control, and Ethernet signals over multimode fiber from an Enova DGX matrix or DXLink source to a remote display endpoint. Operating over multimode fiber eliminates electromagnetic interference susceptibility and supports transmission distances beyond the 100-meter twisted pair limit, making it well-suited for large facilities, campus deployments, and secure installations. The receiver connects to the DGX output or input board on one end and to the compatible DXLink endpoint at the remote location, carrying the complete AV signal set over a single fiber connection.
Key Features
- Multimode Duplex Fiber Receiver: Receives AV and bidirectional control over OM3 multimode duplex fiber up to 300 m.
- HDMI Output with HDCP: Clean HDMI output at the display endpoint with content protection.
- SmartScale Auto-Scaling: Automatic EDID-based display resolution matching.
- Bidirectional Control Return: Ethernet, RS-232, IR control return over fiber in both directions.
Typical Applications
- Conference Room: Multimode fiber HDMI display endpoint with control return in commercial meeting environments.
- Broadcast Studios: Duplex fiber receiver for display and control return in intra-facility routing.
- Enterprise AV: Intra-building HDMI distribution endpoint over existing OM3 fiber infrastructure.
Technical Specifications
| Specification | Detail |
|---|---|
| Fiber Type | Multimode — OM3 50/125 µm |
| Max Distance | 300 m (984 ft.) |
| Fiber Direction | Duplex — bidirectional control |
| HDMI Output | HDMI with HDCP |
| Scaling | SmartScale — auto EDID |
