HDMI 2.0 4K60 4:4:4 Over Distance -
Ideal for users running critical viewing applications such as operations centers requiring transport which use the full fidelity of their displays. -
High Dynamic Range (HDR) and Deep Color Support -
Support for HDR10 and up to 36-bit Deep Color. -
USB 2.0 -
High-speed USB 2.0 data from devices like conferencing cameras and storage devices are transmitted without the need for separate cables. -
RS-232 pass through -
Support bi-directional RS-232 pass-through to a remote DXLink receiver. -
Always, Just One Cable -
Video, audio and USB are delivered over a single twisted pair cable. 4K60 4:4:4 can be transmitted up to 40m when using Cat6a shielded cable or better. -
Powered locally or remotely -
Power is supplied by a DXLink power-sourcing device, such as DGX DXLink 4K60 Twisted Pair Input Board or DVX-4K All-In-One Presentation Switcher, or locally with a desktop power supply. -
Easy Installation -
Mounts in standard single-gang backbox
Loading...
Product Questions? Ask Our Experts!
888.230.3661
sales@creationnetworks.net
Contact us today for quantity & package discounts!

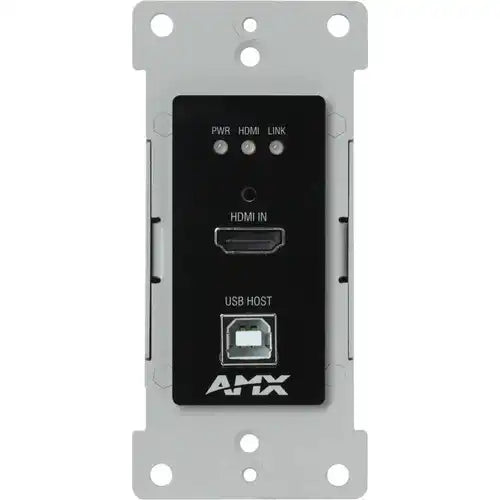

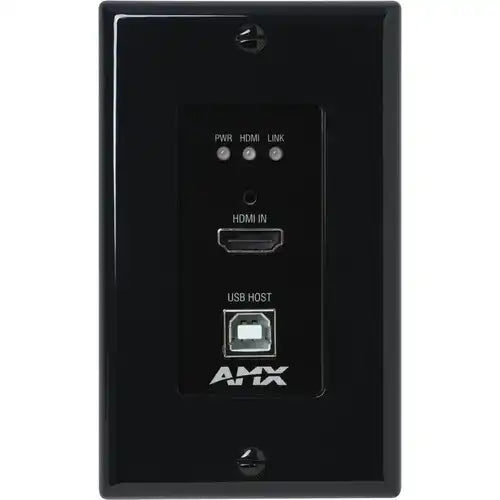

AMX DX-TX-DWP-4K60-BL DXLink 4K60 HDMI Wallplate Transmitter (Black)
Regular price
$821.94
Unit price
/
Unavailable
Shipping calculated at checkout.
AMX | SKU:
AMX-VTT0001B
AMX DX-TX-DWP-4K60-BL DXLink 4K60 HDMI Wallplate Transmitter (Black) is backordered and will ship as soon as it is back in stock.
Shipping Now*
Shipping Now*
Free Ground Shipping over $250.00
AMX DX-TX-DWP-4K60-BL DXLink 4K60 HDMI Wallplate Transmitter (Black)
Regular price
$821.94
Unit price
/
Unavailable

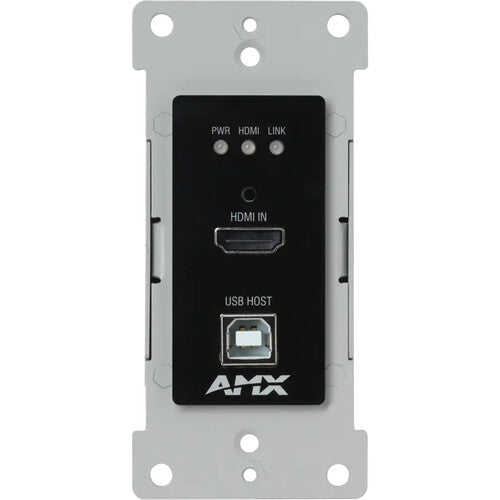

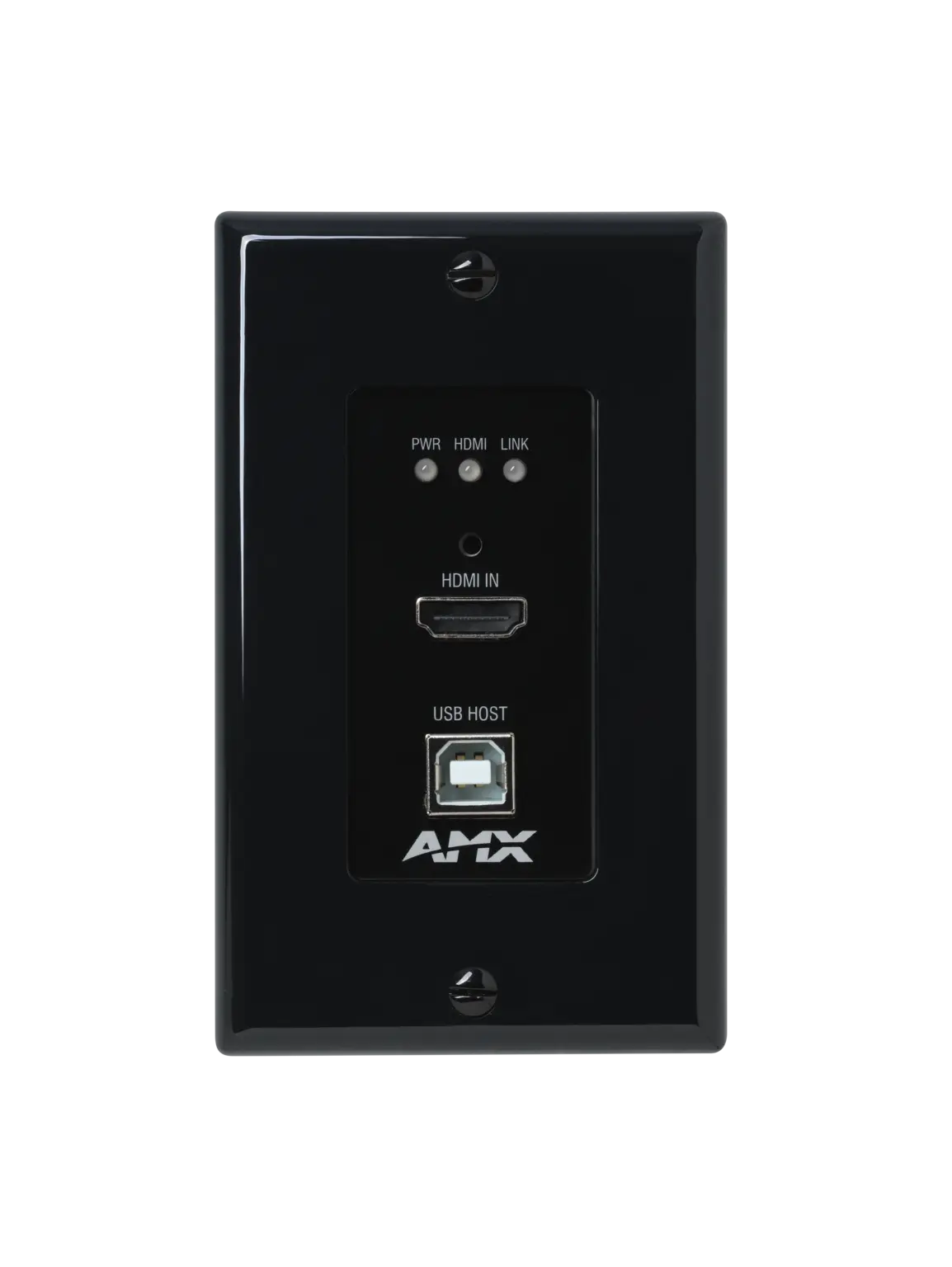

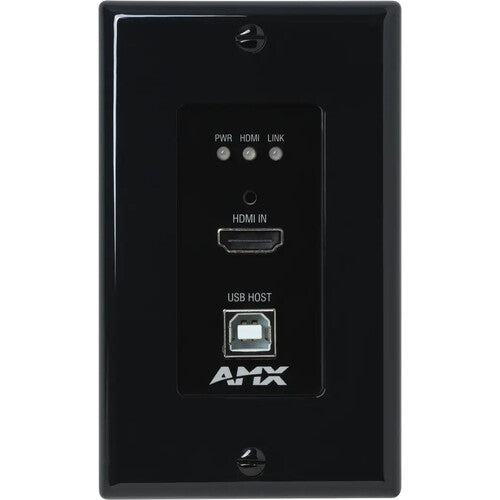

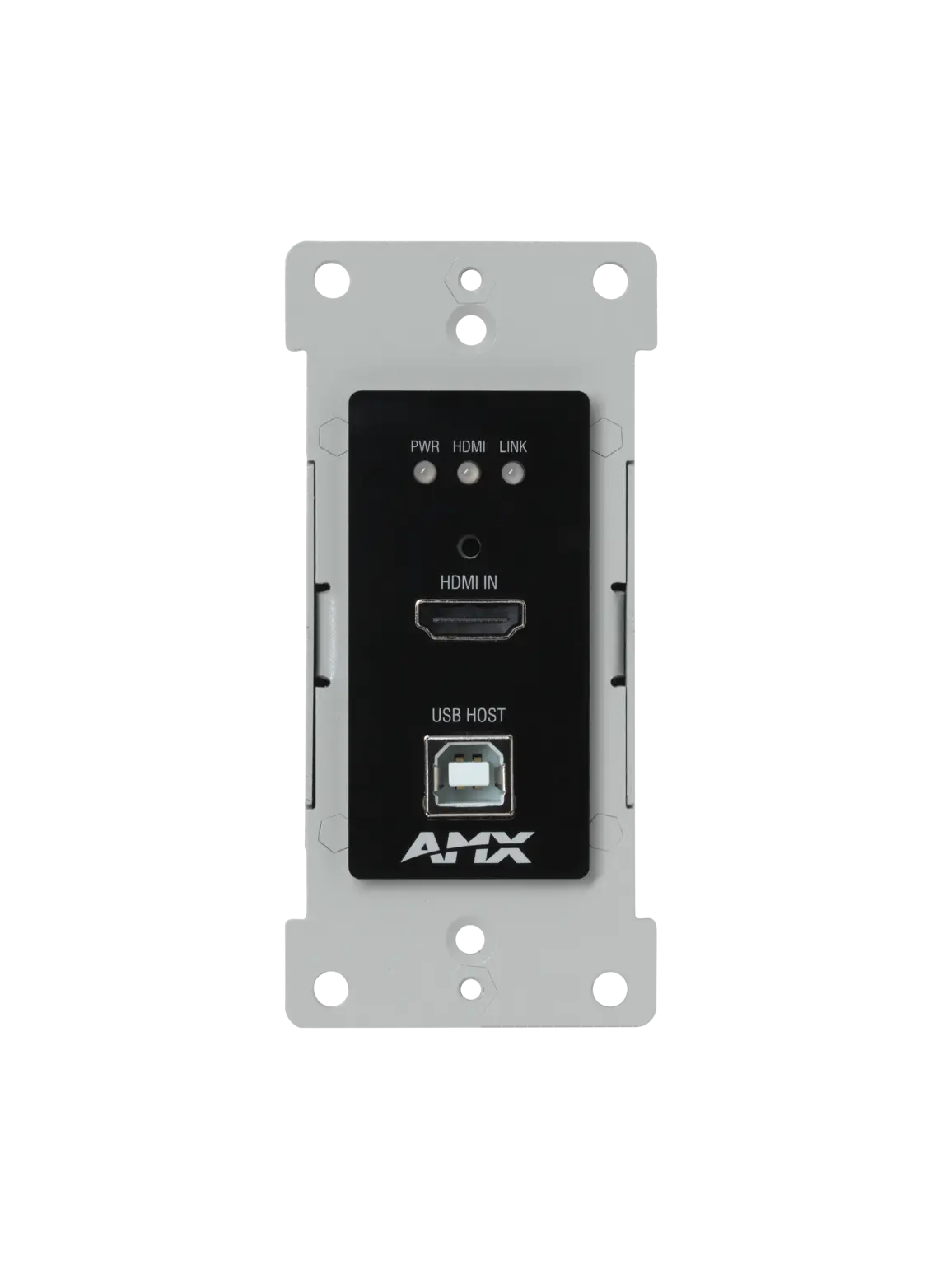

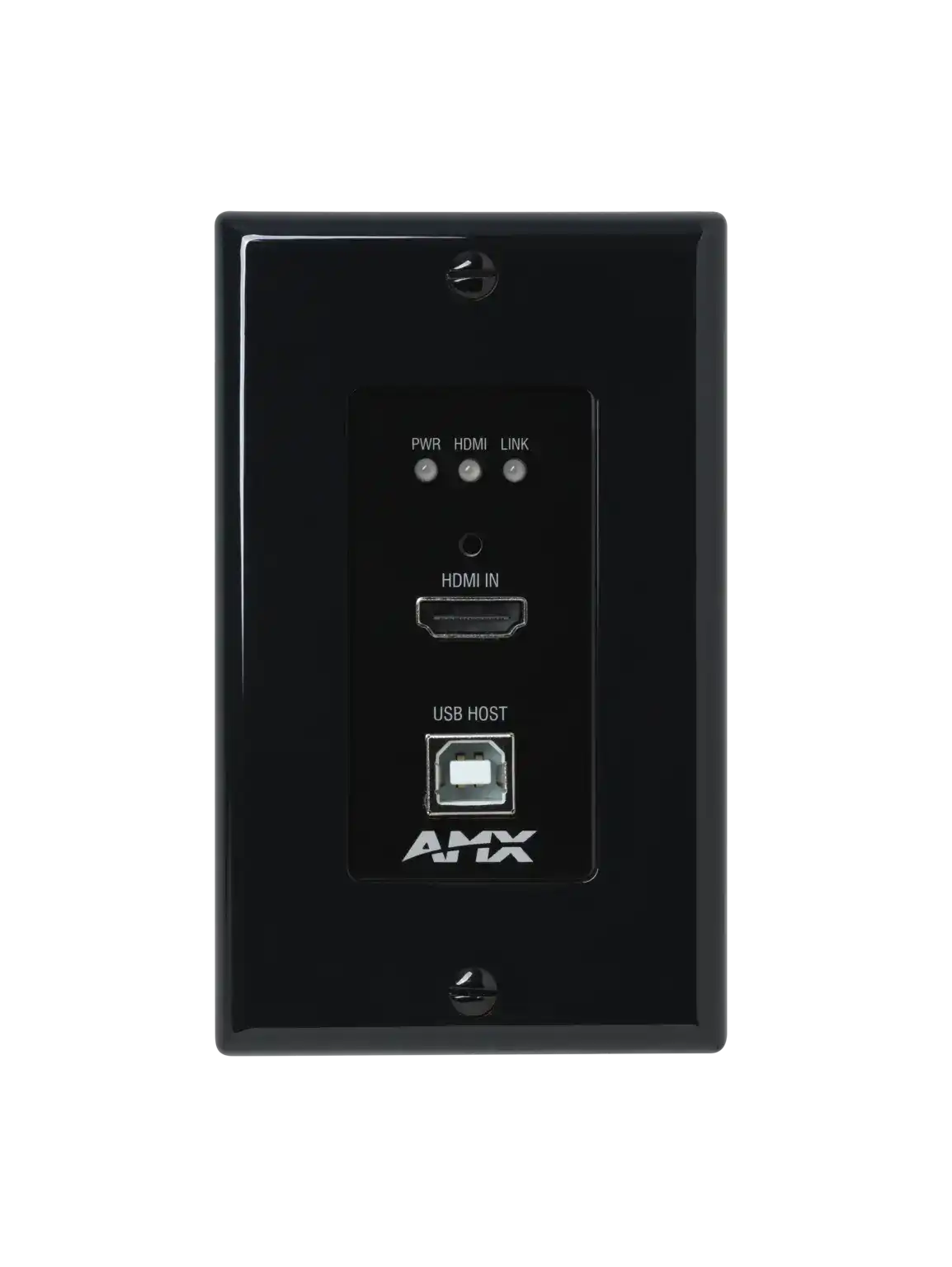

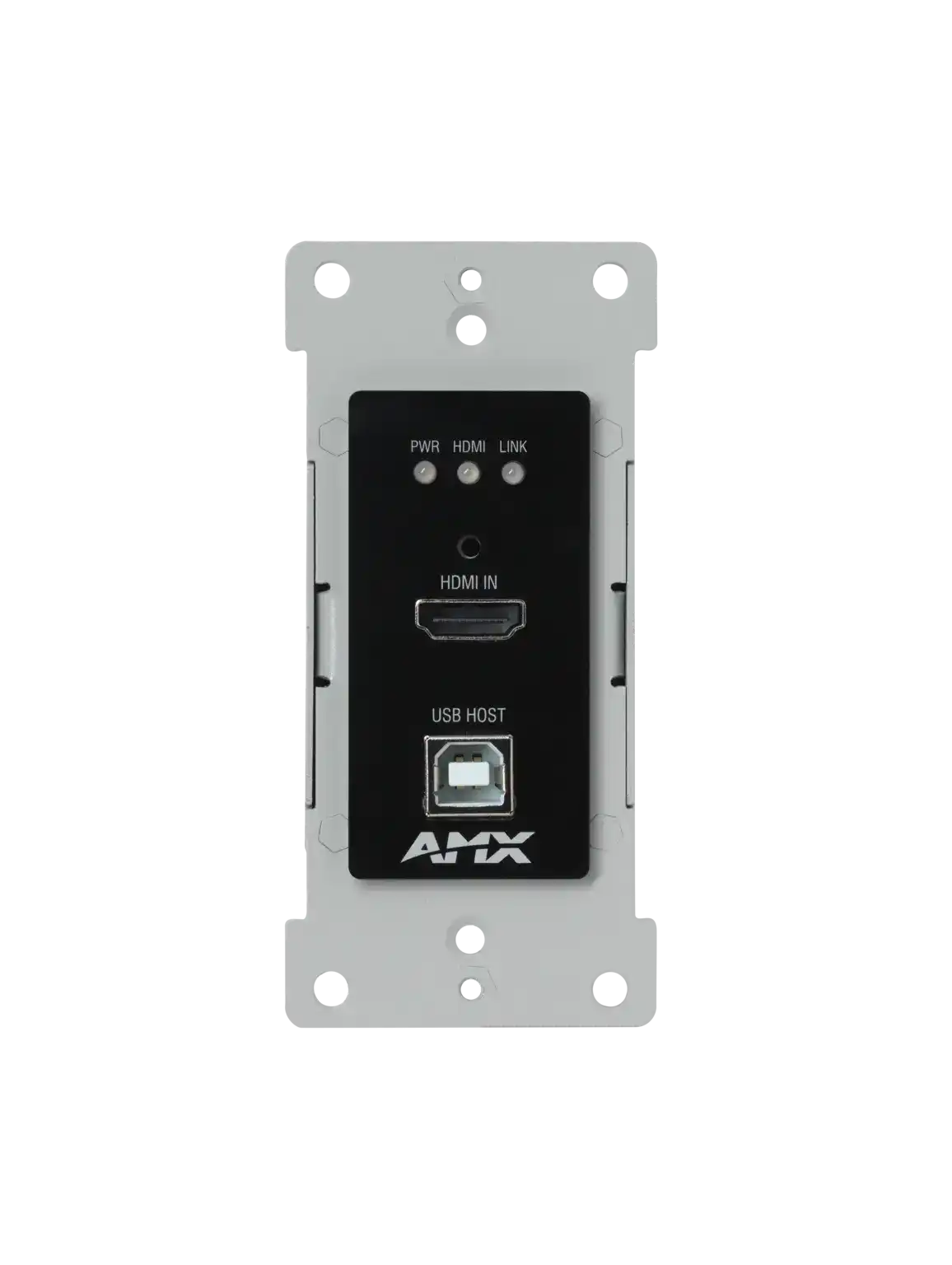

The AMX DXLink 4K60 HDMI Wallplate Transmitter is a 4K60 4:4:4 capable distance transport solution with support for HDMI 2.0 and HDCP 2.2. It transmits audio, video, and USB 2.0 over one shielded Cat6A or Cat7 standard twisted pair cable. DXLink 4K60 HDMI Wallplate Transmitters are perfect for sending HDMI and control signals over long distances to remote DXLink 4K60 Receiver Modules or other compatible AMX Receivers such as the DGX DXLink 4K60 Twisted Pair Input Board or DVX 4K60 All-In-One Presentation Switchers. The transmitter's built-in USB Host port can be connected to a laptop to provide access to USB devices such as a room cameras or soundbars, connected to a DXLink receiver near a display.
Features
Specs
| Dimensions (H x W x D) | 4.23’’(107.5mm) x 1.78’’ (45.3mm) x 2.01’’(51mm) |
| Front Connectors | (1) HDMI, (1) USB 2.0 Type B Host Port |

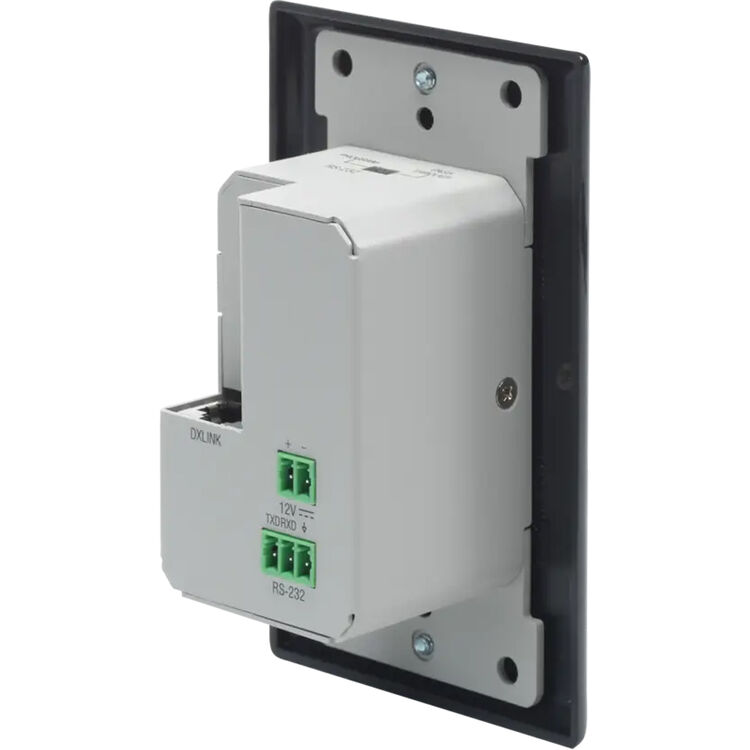

| Back Connectors | (1) 2-pin Phoenix Port for 12V DC Power, (1) RJ-45 DXLink Output Port, (1) 3-pin Phoenix Port for RS-232 |
| HDMI | Compatible Formats: HDMI, HDCP, DVI |
| Resolution Support | Progressive: Up to 4096x2160@60 Hz Interlaced: 1080i @ 50/60 Hz |
| Audio Format Support | Dolby TrueHD, Dolby Digital, DTS-HD MA, DTS, 2 CH L-PCM, 6 CH L-PCM, 8 CH L-PCM Dolby Digital and DTS support up to 48kHz, 5.1 channels |
| USB Transport | USB HID and USB 2.0 are supported point-to-point. Compatible with: DXLink 4K60 HDMI Receiver DXLite 4K60 HDMI Receiver Enova DGX with DXLink 4K60 Twisted Pair Input Board Enova DVX-4K Presentation Switcher. |
| Twisted Pair Cable Type & Length | Shielded Cat 6/6a/7 For shielded Cat 6 cable: Up to 115ft. (35m) for 4K@30/60Hz 4:4:4 Up to 197ft. (60m) for 1080P@60Hz For shielded Cat 6a/7 cable: Up to 131ft. (40m) for 4K@30/60Hz 4:4:4 Up to 230ft. (70m) for 1080P@60Hz |
| Power Requirements | 5.5W Max 12V DC |
| Environmental | • Operating Temperature: 32° F (0° C) to 104° F (40° C) • Storage Temperature: -40° F (-40° C) to 185° F (85° C) • Operating Humidity: 10% to 90%, non-condensing • Storage Humidity: 10% to 95%, non-condensing |
| Regulatory Compliance | FCC CE EN 55032 CE EN 55035 ICES-003 IEC 62368-1 UL 62368-1 VCCI-CISPR 32 RCM RoHS |
| Product Weight | 0.44 lbs (200g) |
| SKU Numbers | AMX-VTT0001B (DX-TX-DWP-4K60-BL - Black) AMX-VTT0001W (DX-TX-DWP-4K60-WH - White) |
