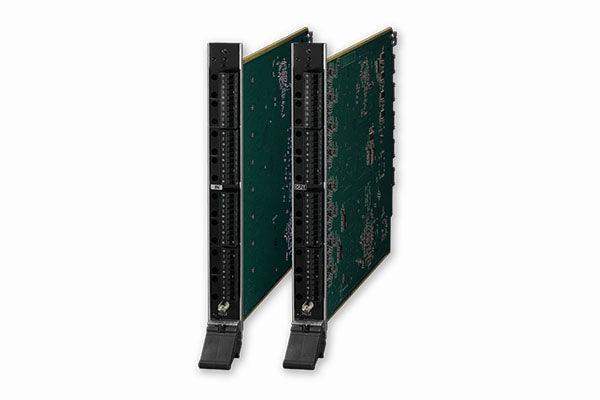

AMX DGX800/1600-ASB – Enova DGX Audio Switching Board Kit for DGX800/1600

Product Overview

The AMX DGX800/1600-ASB is an Audio Switching Board kit for Enova DGX800 and DGX1600 enclosures, adding integrated audio switching and routing capability to the DGX matrix for AV systems requiring decoupled audio distribution alongside video — enabling the DGX to route analog and digital audio independently of the HDMI signal path.

Product Description

The AMX DGX800/1600-ASB Audio Switching Board kit adds an internal audio routing fabric to Enova DGX800 and DGX1600 matrix enclosures — allowing the DGX system to switch and route audio independently of video signals, supporting multi-zone audio distribution, audio-follows-video configurations, and decoupled audio/video routing scenarios in performing arts, university, and enterprise AV distribution systems. The kit is specific to the DGX800 and DGX1600 chassis form factors; the DGX3200-ASB and DGX6400-ASB kits are required for larger enclosures. For Dante AV-over-IP audio routing, the DGX3200-ASB-DAN or DGX6400-ASB-DAN boards provide Dante integration.

Key Features

• Integrated audio switching in DGX chassis — No external audio matrix hardware needed.
• Independent audio/video routing — Decouple audio from video within the DGX system.
• DGX800 and DGX1600 specific — Sized for 8 and 16-slot DGX enclosures.
• Multi-zone audio distribution support — Route audio to multiple zones independently.

Technical Specifications

Typical Applications

• Enova DGX 800 and DGX 1600 matrix systems requiring embedded audio switching and per-zone DSP
• Government and DoD facilities requiring JITC-certified audio components within DGX AV systems
• Mid-size enterprise conference facilities combining DGX video switching with multi-zone audio routing
• Auditoriums and training rooms requiring independent EQ and volume control per output zone
• University AV systems with centralized DGX matrix distribution and distributed audio endpoints

Frequently Asked Questions

Which DGX enclosures does the DGX800/1600-ASB support?
The DGX800/1600-ASB supports the Enova DGX 800 (16×16, 8 inputs/outputs) and DGX 1600 (24×24, 16 inputs/outputs) enclosures. For the DGX 3200, refer to the DGX3200-ASB.

Does the DGX800/1600-ASB support Dante audio output?
Yes. The downmix input can be routed to auxiliary Dante-encoded audio outputs, enabling AoIP integration. For native Dante capability with this enclosure range, also see the DGX3200-ASB-DAN.

Is the DGX800/1600-ASB JITC approved?
Yes. The board carries JITC approval (April 2023), qualifying it for use in U.S. government and Department of Defense AV installations.
