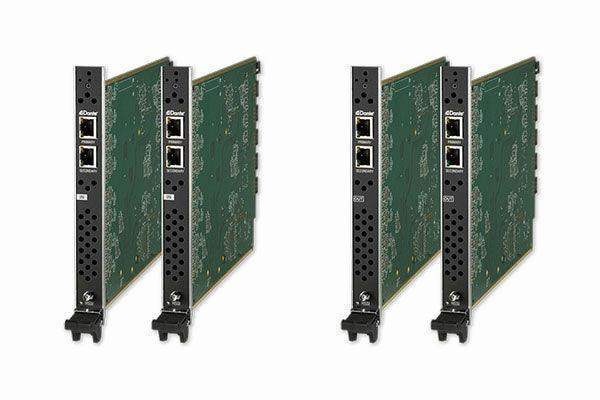

AMX DGX6400-ASB-DAN – Enova DGX Dante Audio Switching Board Kit for DGX6400

Product Overview

The AMX DGX6400-ASB-DAN is an 80×80 audio switching board kit for the Enova DGX 6400 enclosure, combining full matrix audio switching with native Dante/AES67 audio networking. It delivers per-output DSP control — including 10-band parametric EQ, compression, and sync delay — while enabling Dante-encoded audio output routing for AoIP-integrated commercial AV systems. JITC-approved for government deployments as of April 2023.

Product Description

The DGX6400-ASB-DAN adds a comprehensive 80×80 audio matrix with native Dante networking to the Enova DGX 6400 platform. With 64 embedded digital audio inputs from video input positions and 64 embedded digital outputs to video outputs, each output channel benefits from independent volume, 10-band parametric EQ, balance, and up to 200 ms of sync delay for audio/video alignment. Per-input compression is fully configurable with attack, release, ratio, and threshold controls meeting professional broadcast specifications. The Dante capability allows the downmix input — fed from any selectable DGX input board — to be routed across all embedded and auxiliary Dante-encoded audio outputs, making it straightforward to integrate with AoIP-connected devices such as amplifiers, DSPs, and recording systems. The board carries JITC approval for government and federal system use.

Key Features

• 80×80 Audio Switching Matrix: Full matrix routing with independent per-output DSP for complex multi-zone and multi-source environments.
• Native Dante Audio Networking: Downmix output routes across all embedded and auxiliary Dante-encoded audio outputs for AoIP system integration.
• 10-Band Parametric EQ Per Output: Variable center frequency (20 Hz–20 kHz), gain (-12 to +12 dB), Q (0.1–20), and multiple filter types per output band.
• Independent Input Compression: Attack (1–2000 ms), release (10–5000 ms), ratio (1–20), and threshold (-60 to 0 dB) configurable per input channel.
• 200 ms Sync Delay Per Output: Precise audio delay alignment for distributed display and multi-zone AV environments.
• Input Gain Compensation: -24 dB to +24 dB in 1 dB steps to normalize levels across diverse source inputs.
• JITC Approved: Certified for U.S. government and DoD installations (approved April 2023).
• Selectable Downmix Input: Any DGX input board can feed the downmix bus, providing flexible sub-mix routing to Dante and embedded outputs.

Typical Applications

• Enterprise and campus AV matrix systems with Dante AoIP-connected audio infrastructure
• Government and DoD facilities requiring JITC-certified AV components with AoIP capability
• Auditoriums and large conference facilities combining video switching with Dante amplifiers or DSPs
• Broadcast and production environments requiring multi-channel audio routing over IP
• Multi-zone commercial installations integrating Dante-enabled endpoints with DGX video switching

Technical Specifications

Frequently Asked Questions

What is the difference between the DGX6400-ASB and DGX6400-ASB-DAN?
Both boards provide identical audio switching and DSP capabilities. The DAN variant adds native Dante audio networking, allowing the downmix output to be routed to Dante-encoded audio outputs for AoIP integration with compatible amplifiers, DSPs, and recorders.

Is the DGX6400-ASB-DAN compatible with AES67?
Yes. Dante at the DGX6400-ASB-DAN level supports AES67 interoperability for integration with standards-based AoIP audio equipment.

Which enclosure is required for this board?
The DGX6400-ASB-DAN is designed exclusively for the Enova DGX 6400 enclosure. For DGX800/1600 or DGX3200 enclosures, refer to the DGX3200-ASB-DAN.
