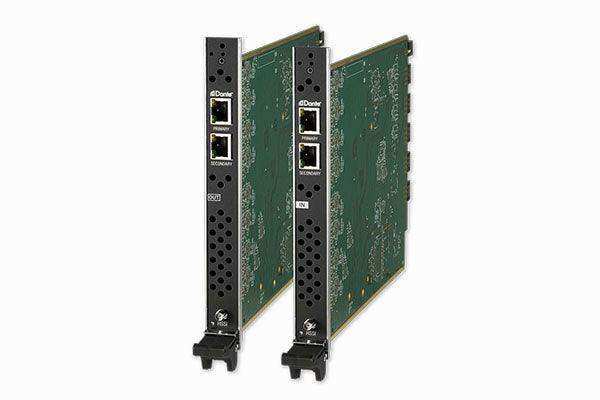

AMX DGX3200-ASB-DAN – Enova DGX Dante Audio Switching Board Kit for DGX800/1600/3200

Product Overview

The AMX DGX3200-ASB-DAN is a multi-enclosure Dante audio switching board kit compatible with the Enova DGX 800, DGX 1600, and DGX 3200 enclosures, providing scalable matrix audio switching from 16×16 to 40×40 with native Dante AoIP output. Each output includes independent DSP control with 10-band parametric EQ, compression, volume, and sync delay, while Dante networking enables the downmix bus to route audio to Dante-encoded outputs for IP audio system integration. JITC-approved as of April 2023.

Product Description

The DGX3200-ASB-DAN adds a Dante-enabled embedded audio switching matrix to DGX 800, DGX 1600, and DGX 3200 enclosures, scaling from 16×16 (DGX 800) to 24×24 (DGX 1600) to 40×40 (DGX 3200). With 8, 16, or 32 embedded digital inputs from video input positions and a matching number of outputs to video outputs, each channel benefits from fully independent per-output DSP: 10-band parametric EQ, volume, balance, and up to 200 ms of sync delay. Input compression is independently configurable with professional-grade attack, release, ratio, and threshold parameters. The Dante downmix output routes audio from any selectable DGX input board to all embedded and auxiliary Dante-encoded outputs, supporting integration with Dante-compatible amplifiers, DSPs, and recording systems. JITC certification qualifies this board for U.S. government and DoD AV installations.

Key Features

• Multi-Enclosure Compatibility: Single board kit supports DGX 800 (16×16), DGX 1600 (24×24), and DGX 3200 (40×40) enclosures.
• Native Dante AoIP Integration: Downmix output switchable to all embedded and auxiliary Dante-encoded audio outputs for AoIP-connected audio infrastructure.
• 10-Band Parametric EQ Per Output: Variable center frequency (20 Hz–20 kHz), gain (-12 to +12 dB), Q (0.1–20), and multiple filter types per output.
• Independent Input Compression: Attack (1–2000 ms), release (10–5000 ms), ratio (1–20), threshold (-60 to 0 dB) per input channel.
• 200 ms Sync Delay Per Output: Configurable audio delay per output for audio/video alignment in distributed and multi-zone AV environments.
• Input Gain Compensation: -24 dB to +24 dB in 1 dB steps for consistent signal level normalization.
• JITC Approved (April 2023): Certified for U.S. federal and Department of Defense AV system installations.

Typical Applications

• Enova DGX 800, 1600, or 3200 systems requiring embedded audio switching with Dante AoIP output
• Government and DoD facilities requiring JITC-certified audio components with AoIP capability
• Auditoriums and large enterprise meeting rooms combining DGX video switching with Dante amplifiers and DSPs
• Multi-zone commercial AV installations integrating Dante-enabled audio endpoints with DGX matrix switching

Technical Specifications

Frequently Asked Questions

Is the DGX3200-ASB-DAN compatible with DGX 800 and DGX 1600 enclosures?
Yes. The DGX3200-ASB-DAN is a single board kit compatible with the Enova DGX 800 (16×16), DGX 1600 (24×24), and DGX 3200 (40×40) enclosures. It scales automatically to the installed enclosure's matrix size.

What is the difference between DGX3200-ASB and DGX3200-ASB-DAN?
Both boards offer identical audio switching and DSP features. The DAN variant adds native Dante audio networking, routing the downmix bus to Dante-encoded audio outputs for AoIP system integration with compatible amplifiers, DSPs, and recorders.

Is Dante AES67 interoperability supported?
Yes. Dante at this board level supports AES67 for interoperability with standards-based AoIP audio equipment outside the Dante ecosystem.
