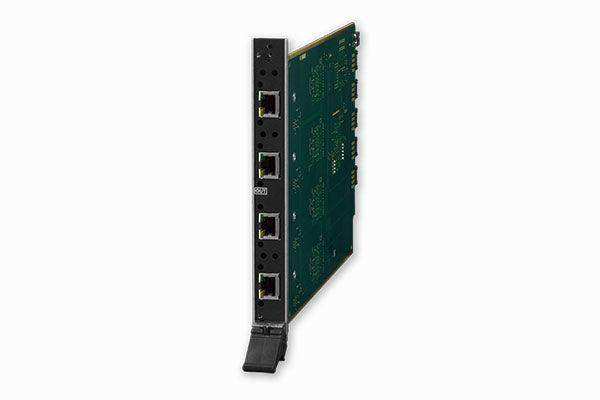

AMX DGX-O-DXL – Enova DGX DXLink Twisted Pair Output Board
AMX DGX-O-DXL – Enova DGX DXLink Twisted Pair Output Board is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
AMX DGX-O-DXL – Enova DGX DXLink Twisted Pair Output Board
AMX DGX-O-DXL – Enova DGX DXLink Twisted Pair Output Board
Product Overview
The AMX DGX-O-DXL is a DXLink twisted pair output board for Enova DGX enclosures, enabling HD matrix outputs to be routed over Cat-5e/6 to remote displays via DX-RX receivers — replacing long HDMI cable runs from the DGX chassis to distant room displays with structured cabling infrastructure.
Product Description
The AMX DGX-O-DXL modular DXLink twisted pair output board routes HD signals from the Enova DGX matrix over Cat-5e/6 cable to remote displays via compatible DXLink receivers — enabling displays across a building or campus to receive DGX matrix outputs without requiring HDMI cables from the DGX enclosure. It installs into any DGX enclosure slot and pairs with DGX HDMI or DXLink input boards to form a complete structured-cabling AV distribution system through the DGX matrix, making it the standard output board choice for campus and enterprise DGX deployments routing HD signals to distributed displays.
Key Features
- DXLink twisted pair output — Routes HD DGX matrix signals over Cat-5e/6 to remote displays.
- Structured cabling display distribution — No HDMI cable runs from DGX to displays.
- DGX modular slot board — All DGX enclosure sizes.
- Works with DX-RX receivers — Complete DXLink signal chain to display endpoints.
Technical Specifications
| Specification | Value |
|---|---|
| Output Type | DXLink twisted pair (Cat-5e/6) |
| Signal | HD (up to 1080p) |
| Compatible Enclosures | DGX800, DGX1600, DGX3200, DGX6400 |
| SKU | FG1058-580-FX |
Typical Applications
- HD AV signal output over twisted pair to DXLink endpoints in enterprise conference rooms and multi-zone meeting facilities
- Enova DGX systems distributing HD video to display locations over structured cabling up to 100 meters
- Digital signage and multi-display environments using DXLink HD twisted pair for signal extension from the DGX matrix
- Government and corporate facilities using DXLink HD twisted pair as the signal transport layer in DGX-based AV systems
Frequently Asked Questions
Which enclosures are compatible with this DXLink twisted pair board?
The board is compatible with Enova DGX 8, 16, 32, and 64 Digital Media Switcher Enclosures.
What cable type is required for DXLink twisted pair operation?
DXLink twisted pair boards operate over Cat 6 or Cat 6A UTP or STP cable. Refer to AMX DXLink endpoint specifications for exact cabling requirements and distance limits.
Can DXLink HD twisted pair boards and DXLink 4K60 boards coexist in the same DGX enclosure?
Yes. The Enova DGX enclosures support mixed board configurations, allowing HD and 4K60 DXLink boards to coexist within the same matrix system.
