AMX DGX-O-DXF-SMD – Enova DGX DXLink Single-Mode Fiber Output Board (Duplex)

Product Overview

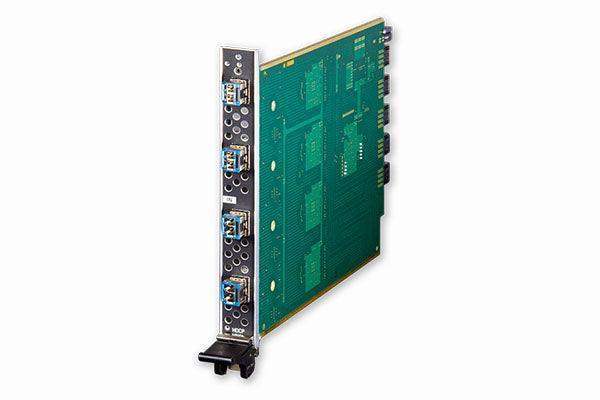

The AMX DGX-O-DXF-SMD is a DXLink single-mode fiber output board for Enova DGX enclosures with duplex LC connectors — enabling HD AV signal outputs from the DGX matrix to reach remote displays at significantly longer distances than multimode fiber, suited for large campus, inter-building, and long-haul AV distribution over single-mode fiber infrastructure.

Product Description

The AMX DGX-O-DXF-SMD DXLink single-mode fiber duplex output board routes HD signals from the Enova DGX matrix over OS1/OS2 single-mode fiber with duplex LC connectors — supporting longer fiber runs than multimode at the cost of higher per-unit board price. Single-mode fiber is the standard for large university campuses, government complexes, and enterprise facilities where AV signals must reach displays at distances of several hundred meters to kilometers between the DGX matrix enclosure and remote display endpoints. It installs into any DGX enclosure slot and pairs with single-mode DXLink fiber receivers at the display end.

Key Features

• Single-mode fiber output (duplex LC) — Long-distance HD routing over SM fiber infrastructure.
• Greater range than multimode — Appropriate for large campus and inter-building runs.
• Duplex LC connectors — Standard SM fiber patch cable compatible.
• DGX modular slot board — All DGX enclosure sizes.

Technical Specifications

Typical Applications

• Long-distance AV signal distribution across campuses, hospitals, or multi-building facilities where runs exceed 100 meters
• Enova DGX matrix systems requiring secure, interference-free AV transport in electromagnetically noisy environments
• Government and federal AV installations where fiber's physical tap-resistance meets security requirements
• Broadcast facilities distributing video over single-mode fiber infrastructure shared with IT networks
• Large auditoriums and conference centers requiring fiber backbone connectivity between DGX and remote DXLink receivers

Frequently Asked Questions

What is the maximum transmission distance of the DGX-O-DXF-SMD?
The DGX-O-DXF-SMD transmits AV signals over single-mode fiber at distances up to 10 km to a compatible DXLink receiver, making it suitable for campus-wide and multi-building AV distribution.

What signals does the DGX-O-DXF-SMD carry over fiber?
The board transmits audio, video, control, and Ethernet over single-mode fiber from the Enova DGX enclosure to a compatible DXLink fiber receiver at the remote display endpoint.

Which Enova DGX enclosures are compatible with the DGX-O-DXF-SMD?
The DGX-O-DXF-SMD is compatible with the Enova DGX 8, 16, 32, and 64 Digital Media Switcher Enclosures.

Are the SFP modules field-serviceable?
Yes. The DGX-O-DXF-SMD includes field-serviceable SFP modules, allowing on-site replacement without returning the board for service.
