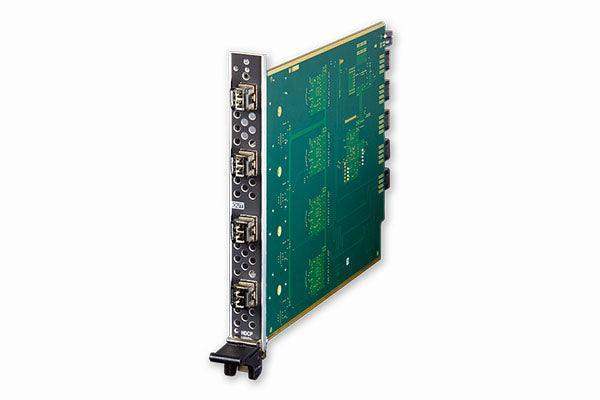

AMX DGX-O-DXF-MMD – Enova DGX DXLink Multimode Fiber Output Board (Duplex)
Product Overview
The AMX DGX-O-DXF-MMD is a DXLink multimode fiber output board for Enova DGX enclosures with duplex LC fiber connectors — enabling HD AV signal outputs from the DGX matrix to be routed over multimode fiber to remote displays at inter-building or long-distance campus AV distribution ranges.
Product Description
The AMX DGX-O-DXF-MMD DXLink multimode fiber duplex output board routes HD signals from the Enova DGX matrix over standard OM3/OM4 multimode fiber with duplex LC connectors to remote DXLink fiber receivers — suitable for inter-building AV signal distribution where existing multimode fiber infrastructure is already in place between buildings or across a campus. Multimode fiber supports shorter distances than single-mode but is lower cost and more common in campus LAN infrastructure. It installs into any DGX enclosure slot and pairs with compatible DXLink fiber receivers at the display end for complete fiber-optic AV signal distribution from the DGX matrix.
Key Features
- Multimode fiber output (duplex LC) — Routes HD DGX signals over campus MM fiber infrastructure.
- Duplex LC connectors — Standard multimode fiber patch cable compatible.
- Inter-building AV distribution — Extends DGX outputs beyond Cat-cable range.
- DGX modular slot board — Installs into all DGX enclosure sizes.
Technical Specifications
| Specification | Value |
|---|---|
| Output Type | DXLink multimode fiber, duplex LC |
| Signal | HD (up to 1080p) |
| Compatible Enclosures | DGX800, DGX1600, DGX3200, DGX6400 |
| SKU | FG1058-632-FX |
Typical Applications
- Medium-distance AV signal distribution over multimode fiber within a single building or campus where runs exceed 100m twisted pair limits
- Enova DGX systems distributing AV signals to display endpoints connected via existing multimode fiber infrastructure
- Government, enterprise, and higher education AV installations leveraging building multimode fiber for interference-free signal transport
- Broadcast and production facilities routing AV over multimode fiber between equipment rooms and presentation spaces
Frequently Asked Questions
What is the maximum distance for the DGX-O-DXF-MMD over multimode fiber?
The DGX-O-DXF-MMD transmits over multimode fiber to a compatible DXLink multimode fiber receiver. Maximum distance depends on the fiber type and SFP module installed — consult the AMX DXLink multimode fiber endpoint specifications for distance details.
Which Enova DGX enclosures are compatible with the DGX-O-DXF-MMD?
The DGX-O-DXF-MMD is compatible with the Enova DGX 8, 16, 32, and 64 Digital Media Switcher Enclosures.
Are the SFP modules field-serviceable?
Yes. The DGX-O-DXF-MMD uses field-serviceable SFP modules for on-site replacement without returning the board.
