Product Overview

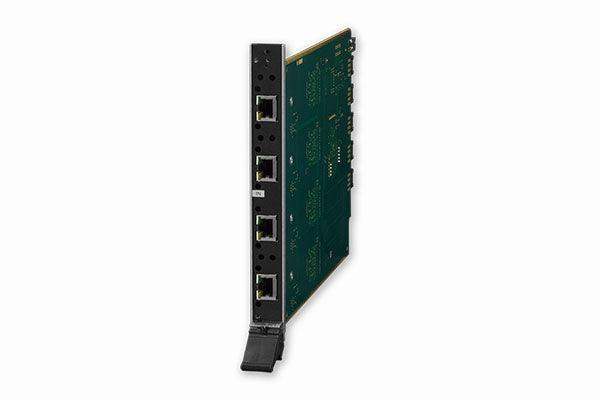

The AMX DGX-I-HDMI-4K is a 4K HDMI input board for Enova DGX enclosures, supporting 4K30 HDMI source signals for DGX matrix systems being upgraded from HD to 4K infrastructure. It bridges HD-era DGX deployments into the 4K signal world for facilities standardizing on 4K displays and sources but operating DGX800/1600/3200/6400 chassis.
Product Description
The AMX DGX-I-HDMI-4K modular 4K HDMI input board provides 4K30 HDMI signal input capability in Enova DGX matrix enclosures — the step up from the DGX-I-HDMI for facilities deploying 4K sources and displays that require more than 1080p signal handling, while the full 4K60 4:4:4 of the DGX-I-HDMI-4K60 board is not yet required. It installs into any DGX enclosure slot and enables HDMI 4K input routing within the DGX matrix fabric, pairing with DXLink 4K or HDMI 4K output boards for a complete 4K signal chain.
Key Features
- 4K HDMI input (up to 4K30) — 4K signal support for DGX matrix systems.
- DGX modular slot board — Installs into DGX800/1600/3200/6400.
- 4K upgrade path for HD DGX systems — Cost-effective step into 4K without full chassis replacement.
- Mix with DXLink or HDMI output boards — Flexible I/O configuration.
Technical Specifications
| Specification | Value |
|---|---|
| Signal | HDMI 4K (up to 4K30) |
| Type | Input board |
| Compatible Enclosures | DGX800, DGX1600, DGX3200, DGX6400 |
| SKU | FG1061-540-FX |
Typical Applications
- 4K UHD HDMI source integration in Enova DGX matrix systems for boardrooms, conference rooms, and command centers
- Digital signage systems with 4K HDMI sources requiring centralized DGX matrix switching
- Government and enterprise facilities expanding DGX matrix systems with direct 4K HDMI input card capacity
- Broadcast and production environments routing 4K HDMI sources through a central DGX switching matrix
Frequently Asked Questions
Which Enova DGX enclosures are compatible with the DGX-I-HDMI-4K?
The DGX-I-HDMI-4K is compatible with Enova DGX 8, 16, 32, and 64 Digital Media Switcher Enclosures.
What is the difference between the DGX-I-HDMI-4K and DGX-I-HDMI-4K60?
The DGX-I-HDMI-4K supports up to 4K (typically 30fps) while the DGX-I-HDMI-4K60 supports full 4K60 4:4:4 frame rates. For 60Hz 4K content, the 4K60 board is required.
Does the DGX-I-HDMI-4K support HDCP?
Yes. The board is HDCP compliant for protected 4K content distribution through the DGX switching matrix.
