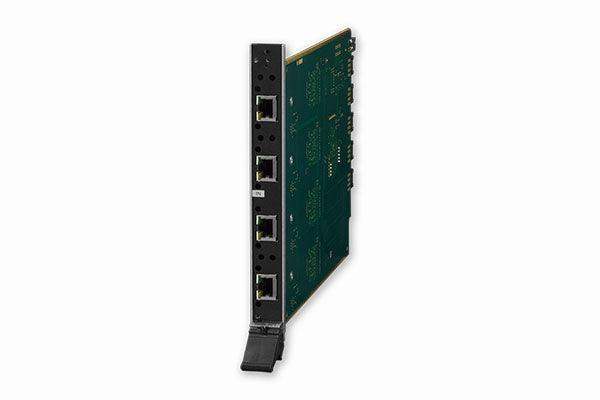

AMX DGX-I-DXL-4K – Enova DGX DXLink Twisted Pair 4K Input Board
AMX DGX-I-DXL-4K – Enova DGX DXLink Twisted Pair 4K Input Board
Product Overview
The AMX DGX-I-DXL-4K is a DXLink twisted pair 4K input board for Enova DGX enclosures, enabling 4K30 DXLink source connections over Cat-5e/6 structured cabling into the DGX matrix — the 4K step-up from the DGX-I-DXL for facilities upgrading to 4K source and display infrastructure.
Product Description
The AMX DGX-I-DXL-4K DXLink 4K twisted pair input board adds 4K30 DXLink input capability to Enova DGX matrix enclosures — supporting 4K HDMI sources connected via Cat-5e/6 structured cabling through DX-TX-4K or compatible DXLink 4K transmitters. It enables 4K source signal routing through the DGX matrix fabric over structured cabling infrastructure, appropriate for campus AV systems transitioning to 4K displays and sources while retaining the Cat-cable DXLink infrastructure. Pairs with DGX DXLink or HDMI 4K output boards for a complete 4K structured-cabling AV distribution system through the DGX matrix.
Key Features
- DXLink twisted pair 4K input — 4K30 signals over Cat-5e/6 into DGX matrix.
- 4K DXLink source integration — Works with DX-TX-4K transmitters at source locations.
- DGX modular slot board — Installs into all DGX enclosure sizes.
Technical Specifications
| Specification | Value |
|---|---|
| Input Type | DXLink twisted pair (Cat-5e/6) |
| Signal | 4K (up to 4K30) |
| Compatible Enclosures | DGX800, DGX1600, DGX3200, DGX6400 |
| SKU | FG1061-570-FX |
Typical Applications
- 4K UHD signal reception in Enova DGX matrix systems over twisted pair cable infrastructure up to 100m
- Enterprise boardrooms and large meeting facilities distributing 4K content through a centralized DGX matrix
- Digital signage systems requiring 4K resolution source input into the DGX switching matrix
- Government and corporate facilities extending 4K sources from DXLink transmitters to the DGX input board over structured cabling
Frequently Asked Questions
What is the maximum cable run supported by the DGX-I-DXL-4K?
The DGX-I-DXL-4K supports twisted pair cable runs up to 100 meters to a compatible DXLink 4K transmitter endpoint.
Which DGX enclosures is the DGX-I-DXL-4K compatible with?
The DGX-I-DXL-4K is compatible with the Enova DGX 800, DGX 1600, DGX 3200, and DGX 6400 Digital Media Switcher Enclosures.
Does the DGX-I-DXL-4K support HDCP?
Yes. The board is HDCP compliant, supporting protected 4K content distribution from compliant sources through the DGX switching matrix.
