AMX DGX-I-DXFP-4K60 – Enova DGX DXLink 4K60 Fiber Input Board
AMX DGX-I-DXFP-4K60 – Enova DGX DXLink 4K60 Fiber Input Board is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
AMX DGX-I-DXFP-4K60 – Enova DGX DXLink 4K60 Fiber Input Board
AMX DGX-I-DXFP-4K60 – Enova DGX DXLink 4K60 Fiber Input Board
Product Overview

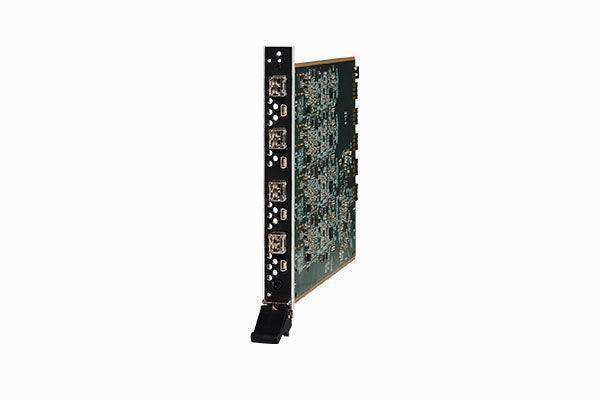

The AMX DGX-I-DXFP-4K60 is a DXLink 4K60 fiber input board for Enova DGX enclosures, enabling 4K60 4:4:4 HDR signal input over fiber optic cable from sources at distances exceeding Cat-cable range — suited for inter-building signal routing, long-distance campus AV distribution, and electrically-isolated signal paths in large venue and enterprise AV infrastructure.
Product Description
The AMX DGX-I-DXFP-4K60 DXLink 4K60 fiber input board accepts 4K60 4:4:4 HDR signals from DXLink fiber transmitters over multimode or single-mode fiber optic cable — enabling signal distances far beyond the 100m limit of Cat-cable DXLink, making it the appropriate input board for university campus AV systems distributing 4K60 sources across multiple buildings, broadcast facilities with electrically-isolated signal paths, and government or performing arts installations with long cable runs. It installs into any Enova DGX enclosure slot and pairs with fiber or twisted pair DGX output boards for complete long-distance 4K60 AV distribution through the DGX matrix.
Key Features
- 4K60 4:4:4 HDR fiber input — Extends DXLink 4K60 over fiber beyond Cat-cable limits.
- Inter-building signal routing — Multi-building and campus-wide AV source integration.
- Electrical isolation — Fiber eliminates ground loop and noise issues between buildings.
- DGX modular slot board — All DGX enclosure sizes.
Technical Specifications
| Specification | Value |
|---|---|
| Input Type | DXLink fiber (MM or SM) |
| Signal | 4K60 4:4:4 HDR |
| Compatible Enclosures | DGX800, DGX1600, DGX3200, DGX6400 |
| SKU | FG1061-624 |
Typical Applications
- Long-distance 4K60 AV signal distribution across large campuses, hospitals, and multi-building enterprise facilities
- Government and federal AV installations requiring fiber's electromagnetic interference immunity and physical tap-resistance
- Broadcast studios and production environments distributing 4K60 signals over existing single-mode fiber infrastructure
- Large venue and auditorium systems where DXLink fiber endpoints are positioned beyond twisted pair cable distance limits
- Secure government facilities requiring intrusion-resistant signal transport over long-haul fiber runs
Frequently Asked Questions
What is the maximum transmission distance for the DGX-I-DXFP-4K60 over fiber?
The DGX-I-DXFP-4K60 connects to DXLink fiber receivers and transmitters capable of distances well beyond the 100m twisted pair limit. Refer to the compatible DXLink fiber endpoint for the specific distance specification based on fiber type.
Which Enova DGX enclosures is the DGX-I-DXFP-4K60 compatible with?
The DGX-I-DXFP-4K60 is compatible with the Enova DGX 8, 16, 32, and 64 Digital Media Switcher Enclosures.
Does the DGX-I-DXFP-4K60 support HDCP?
Yes. DGX DXLink fiber boards support HDCP-compliant signal transport for protected content distribution in commercial AV environments.
