AMX DGX-AIE – Enova DGX Audio Insert/Extract Board

Product Overview

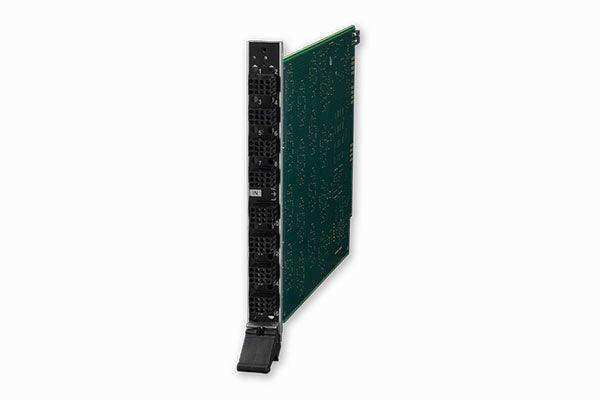

The AMX DGX-AIE is an Audio Insert/Extract board for Enova DGX matrix enclosures — enabling analog audio to be embedded into or de-embedded from the HDMI signal stream within the DGX matrix without external audio processing hardware, for AV systems where independent analog audio routing alongside video distribution is required.

Product Description

The AMX DGX-AIE Audio Insert/Extract board provides analog audio embedding and de-embedding capability within the Enova DGX matrix chassis — allowing audio from external microphone preamplifiers, DSPs, or audio mixers to be inserted into the HDMI video stream at the matrix, or analog audio to be extracted from HDMI signals for routing to amplifiers or audio processors, all within the DGX slot architecture without external hardware. For DGX-based AV distribution systems in performing arts, university, or enterprise environments where audio and video must be routed independently or audio sources are separate from the video signal, the DGX-AIE eliminates the need for external embedder/de-embedder hardware at each distribution point.

Key Features

• Analog audio insert and extract — Embed analog audio into HDMI or extract audio from HDMI within DGX matrix.
• No external hardware required — Audio processing within the DGX slot architecture.
• DGX modular slot board — Installs into all DGX enclosure sizes.
• Supports independent audio/video routing — Decouple audio from video within the DGX matrix.

Technical Specifications

Typical Applications

• Enova DGX systems requiring analog audio insert and extract alongside video switching for DSP integration
• Conference rooms and auditoriums combining DGX video matrix switching with external analog audio processing equipment
• Broadcast facilities extracting embedded audio from switched video signals for routing to external mixers or recorders
• Enterprise AV systems integrating third-party audio DSPs with the Enova DGX matrix for independent audio processing

Frequently Asked Questions

What does the DGX-AIE enable in the Enova DGX system?
The DGX-AIE provides analog audio insert and extract capability, allowing external audio signals to be inserted into the DGX video matrix or extracted from switched video outputs for routing to external DSPs, amplifiers, or recording equipment.

Which Enova DGX enclosures are compatible with the DGX-AIE?
The DGX-AIE is compatible with the Enova DGX 8, 16, 32, and 64 Digital Media Switcher Enclosures.

Does the DGX-AIE replace the need for an audio switching board?
No. The DGX-AIE provides analog insert/extract capability for connecting external audio equipment. The DGX-ASB audio switching board kits provide the embedded DSP audio matrix switching functionality.
