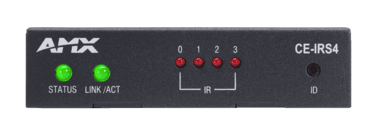

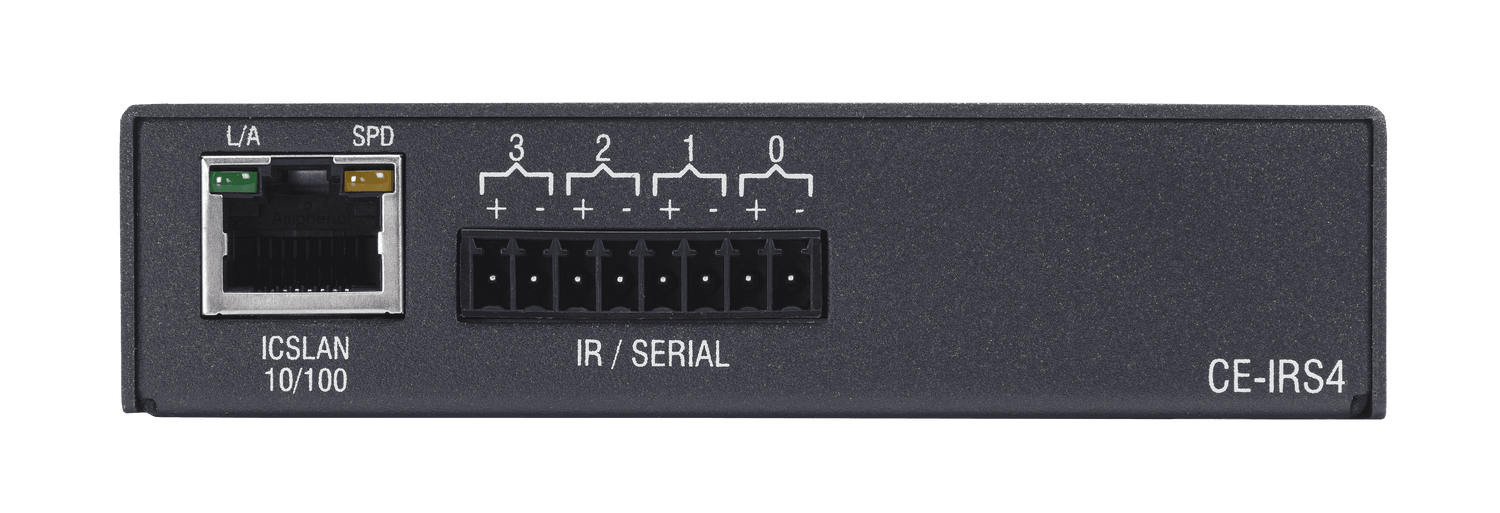

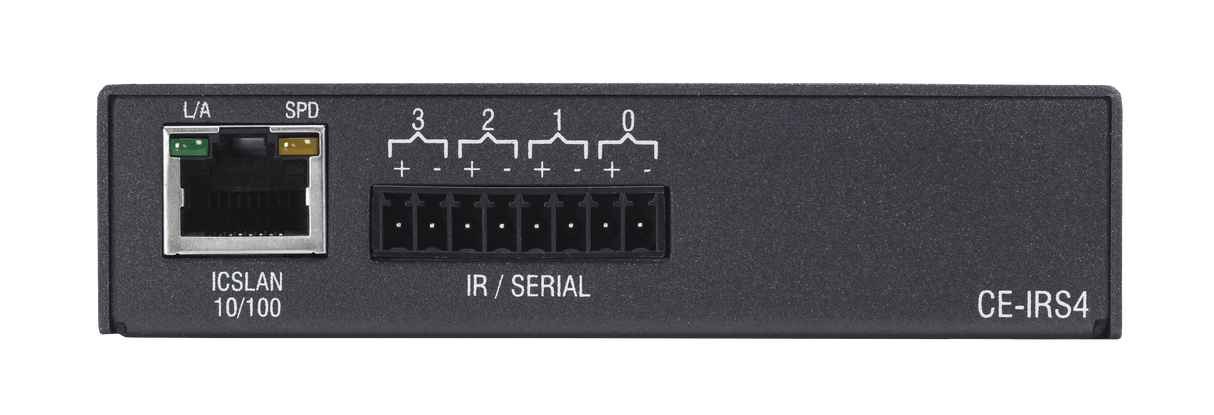

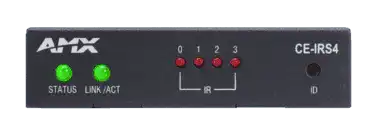

AMX CE-IRS4 – Universal Control Extender with 4 IR/Serial Ports

Product Overview

The AMX CE-IRS4 is a Universal Control Extender providing 4 IR/serial ports for expanding the IR and serial control capacity of AMX MUSE controllers — particularly the MU-1000, which has no onboard I/O ports. It connects to the MUSE controller over IP and adds IR blaster and serial control at the room edge without additional cabling back to the controller chassis.

Product Description

The AMX CE-IRS4 Universal Control Extender adds 4 IR/serial ports to AMX MUSE-controlled AV systems, enabling IR blaster output to displays, projectors, set-top boxes, and media players at the room edge — without running IR cables back to the controller chassis. It connects to the MUSE controller via IP over the room network, making it suitable for above-ceiling or furniture placement near the devices being controlled. As an expansion module for MUSE AV control systems, the CE-IRS4 is most commonly paired with the MU-1000 (which has no onboard ports) or the MU-1300 (which has 2 IR ports) to reach the IR port count required for a specific room AV device roster without stepping up to a larger MUSE controller.

Key Features

• 4 IR/serial control ports — IR blaster output plus serial option per port.
• IP-connected expansion — Connects to MUSE controller over the room network; no additional control cable back to rack.
• Expands MU-1000/1300 — Adds IR capacity without stepping up to a larger MUSE controller.
• PoE powered — No external power supply required.
• Room-edge placement — Install near displays and sources for short IR cable runs.

Typical Applications

• Adding IR control ports to MUSE MU-1000 deployments
• Expanding MU-1300 from 2 to 6 IR ports
• Room-edge IR control for display, projector, and cable box
• Ceiling-mount or AV furniture IR expansion

Technical Specifications
