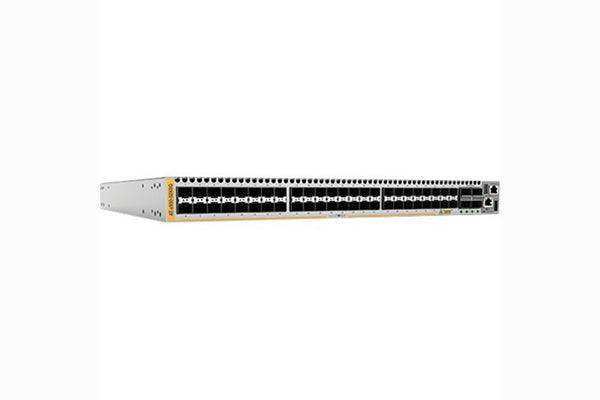

Allied Telesis AT-X950-52XSQ – 52-Port 10G/100G Stackable Layer 3+ Switch

Product Overview

The Allied Telesis AT-X950-52XSQ is a high-density 52-port stackable Layer 3+ switch delivering 10 Gigabit access density combined with native 40G and 100G uplink connectivity. Designed for enterprise network core and distribution deployments, the X950-52XSQ features a 1.92 Tbps switching fabric that eliminates congestion in large-scale converged network environments. With 48 x 1/10GbE SFP+ ports, 4 x 40G/100G QSFP28 uplink ports, and VCStack virtual chassis stacking, this switch provides the port density and resilience required for Smart City, IoT aggregation, and high-availability campus network core applications.

Product Description

The X950 Series represents Allied Telesis's top-tier fixed-configuration stackable switch platform. The AT-X950-52XSQ provides 48 SFP+ ports operating at 1G or 10G, plus 4 built-in QSFP28 ports capable of 40G or 100G operation — the latter supporting direct 100GbE backbone connectivity to data center core switches or spine layer devices without additional transceivers or breakout cables.

The 1.92 Terabit non-blocking switching fabric ensures that all 52 ports operate at full line rate simultaneously with no internal oversubscription. This capacity is critical for deployments aggregating large numbers of 10G server connections, high-throughput video surveillance systems, or high-density wireless access point uplinks in campus environments.

The X950-52XSQ supports VCStack, Allied Telesis’s virtual chassis stacking technology, which presents multiple physical switches as a single logical device. VCStack enables cross-unit link aggregation, allowing bonded port channels to span multiple physical units — providing both bandwidth multiplication and hardware-level redundancy without spanning-tree blocking. The stack can be managed through a single IP address and a unified configuration file.

Network-wide automation is delivered by the Allied Telesis Autonomous Management Framework (AMF). AMF’s zero-touch node recovery automatically restores a failed or replaced switch to its last known configuration without manual intervention — a significant operational advantage in distributed campus and multi-site enterprise deployments. AMF Guestnode extends visibility to third-party devices such as IP cameras, VoIP phones, and IoT endpoints directly within the AMF topology.

An onboard expansion bay provides additional interface flexibility without requiring a chassis replacement, allowing incremental capacity additions as network demands grow. Power consumption is rated at 266.10W, making the X950-52XSQ suitable for standard enterprise rack deployments without requiring special power circuits. For procurement and configuration support, contact Creation Networks.

Key Features

• 48 x 1/10GbE SFP+ Ports — High-density 10 Gigabit access layer connectivity with dual-speed auto-negotiation to 1G or 10G per port.
• 4 x 40G/100G QSFP28 Uplink Ports — Native 100GbE backbone ports for direct high-speed connectivity to spine or data center core switches.
• 1.92 Tbps Non-Blocking Switching Fabric — Full line-rate forwarding across all 52 ports simultaneously with no internal oversubscription.
• VCStack Virtual Chassis Stacking — Stack multiple X950 units into a single logical device with cross-unit LAG and unified management.
• Allied Telesis AMF Support — Centralized network management, zero-touch recovery, and plug-and-play node replacement across the full AMF domain.
• Onboard Expansion Bay — Add interface modules to increase port density or add connectivity types without chassis replacement.
• Layer 3+ Routing — Full IPv4 and IPv6 wire-speed routing with support for OSPF, BGP, RIP, and policy-based routing.
• Smart City and IoT Ready — Capacity and management automation designed for converged IoT, surveillance, and wireless aggregation deployments.
• 1U Rack-Mountable — Standard 1U form factor for space-efficient rack installation.
• 266.10W Power Consumption — Compatible with standard enterprise rack PDUs; no special circuit requirements.
• Optical Fiber Connectivity — All SFP+ and QSFP28 ports accept Allied Telesis and MSA-compatible optical transceivers.

Typical Applications

• Campus network core and distribution layer
• Data center top-of-rack and aggregation
• Government network infrastructure
• Smart City converged network aggregation
• High-density wireless access point aggregation
• Enterprise headquarters core switching

Technical Specifications

Frequently Asked Questions

How many units can be stacked with VCStack on the X950-52XSQ?

VCStack supports stacking multiple X950 units into a single logical switch. Cross-unit link aggregation is supported across all stacked members. Contact Creation Networks for the maximum supported stack size in your specific deployment scenario.

Can the 40G/100G ports operate in 40G mode for legacy connectivity?

Yes. All 4 QSFP28 uplink ports support both 40GbE and 100GbE operation, selectable per-port. This allows backward compatibility with existing 40G infrastructure while providing a clear migration path to 100G.

What transceivers are compatible with the AT-X950-52XSQ?

The X950-52XSQ accepts Allied Telesis SFP+ modules (SP10 series) and QSFP28 modules in the uplink ports. MSA-compliant third-party transceivers may also be compatible. Creation Networks carries a full range of Allied Telesis transceivers for this platform.

Does the X950-52XSQ support AMF zero-touch recovery?

Yes. When operating within an AMF domain, a failed or replaced X950-52XSQ unit automatically downloads its configuration from the AMF master and resumes operation without requiring manual CLI intervention at the physical switch.

What routing protocols does the X950-52XSQ support?

The X950-52XSQ supports Layer 3+ routing including static routes, OSPFv2, OSPFv3, BGP4, RIPv2, and policy-based routing for both IPv4 and IPv6 address families.

Is the AT-X950-52XSQ suitable for IoT and Smart City deployments?

Yes. The 1.92 Tbps fabric capacity, AMF network automation, and AMF Guestnode support for third-party device onboarding make the X950-52XSQ well-suited for IoT aggregation, smart city infrastructure, and converged surveillance and wireless deployments.

What support and warranty are included?

The AT-X950-52XSQ-B01 includes Allied Telesis standard warranty coverage. Extended NCP support contracts are available. Contact Creation Networks for warranty details and support contract options.
