Allied Telesis AT-X930-52GPX-B91 – 48-Port PoE+ Layer 3 Switch

Product Overview

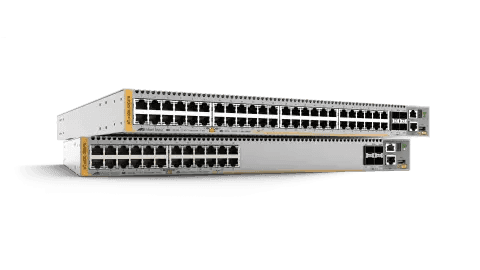

The Allied Telesis x930-52GPX Layer 3 switch (AT-X930-52GPX-B91) is a 48-port Gigabit PoE+ stackable switch designed for enterprise campus and commercial network deployments. Offering 48 x 10/100/1000Base-T PoE+ access ports and SFP+ uplink expansion, this 48-port PoE+ gigabit switch delivers the Layer 3 routing, VCStack stacking, and network automation capabilities of the x930 Series in a configuration suited for organizations deploying unified wired and wireless infrastructure. With redundant PSU support, Continuous PoE, and a comprehensive security feature set, it is a reliable access and distribution layer platform for medium to large enterprise environments.

Product Description

The AT-X930-52GPX-B91 is part of Allied Telesis’s x930 Series — a family of advanced Gigabit Layer 3 stackable switches positioned for distribution and core network roles in enterprise campus and commercial environments. As an x930 series enterprise switch, it combines high port density with full Layer 3 routing capability, supporting IPv4 and IPv6 with OSPF, BGP, and RIP for versatile deployment across access, distribution, and aggregation layers. All 48 10/100/1000Base-T access ports deliver IEEE 802.3at PoE+ at up to 30W per port, enabling support for IP phones, wireless access points, and IP cameras without external power injectors. The SFP+ expansion slots provide 10 Gigabit Ethernet uplink capacity for aggregation to core switching infrastructure. Allied Telesis VCStack technology allows up to eight x930 units to operate as a single logical switch with up to 160 Gbps of stacking bandwidth, while VCStack LD enables stack formation over fiber for distributed building topologies. Continuous PoE ensures connected powered devices maintain uninterrupted power during stack failover events, a critical requirement in VoIP and physical security deployments. Redundant power supply support ensures high availability for environments that cannot tolerate PSU-related downtime. Network management is handled through Allied Telesis AMF, Vista Manager EX, and the Device GUI — providing graphical monitoring and AMF-driven automation for both wired and wireless network infrastructure. The AT-X930-52GPX-B91 x930 series enterprise switch also supports G.8032 Ethernet Ring Protection and EPSRing for resilient ring topology failover, Precision Time Protocol (PTP) Transparent Mode, and Active Fiber Monitoring for proactive link health diagnostics.

Key Features

• 48 x PoE+ Ports (802.3at) — Delivers up to 30W per port across all 48 access ports for IP phones, wireless APs, and IP cameras.
• SFP+ 10G Uplink Slots — 10 Gigabit Ethernet expansion for high-bandwidth aggregation uplinks to core switching infrastructure.
• Layer 3 Routing — Full IPv4/IPv6 routing including OSPF, BGP, RIP, and static routes for access and distribution layer deployments.
• VCStack Stacking (up to 8 units) — Up to 160 Gbps stacking bandwidth per switch for scalable, simplified management across campus networks.
• Continuous PoE — Maintains uninterrupted PoE delivery to connected devices during stack failover, critical for VoIP and surveillance systems.
• Redundant Hot-Swap PSU Support — Dual load-sharing power supplies support online replacement without network or PoE service interruption.
• Allied Telesis AMF — Automates network-wide configuration management, firmware upgrades, and zero-touch device recovery.
• EPSRing & G.8032 Ring Protection — Sub-50ms resilient failover for ring-based topologies across distributed network segments.
• VCStack LD (Long Distance Stacking) — Extends VCStack across fiber links for multi-building and distributed campus deployments.
• Precision Time Protocol (PTP) Transparent Mode — IEEE 1588v2 support for time-synchronization-sensitive applications.
• Active Fiber Monitoring (AFM) — Proactive monitoring of fiber data and stacking links for early fault detection.

Typical Applications

• Enterprise campus access and distribution layer switching for wired and wireless convergence
• Commercial office buildings deploying high-density IP telephony and unified communications
• Multi-building campus networks using VCStack LD for distributed switch infrastructure
• Enterprise networks with IP surveillance requiring reliable Continuous PoE delivery
• Medium to large organizations requiring scalable, stackable Layer 3 switching

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the AT-X930-52GPX-B91 and the AT-X930-52GPX-B1?

Both are commercial variants of the x930-52GPX platform. The -B1 and -B91 designations reflect different regional power supply configurations and bundled PSU options. Both support dual hot-swappable PSUs, 48 PoE+ ports, 4 SFP+ uplinks, and the full x930 Series feature set. Contact Creation Networks at creationnetworks.net for region-specific procurement guidance.

Q: How many switches can be stacked on the AT-X930-52GPX-B91?

Up to eight x930 Series switches can form a single VCStack with up to 160 Gbps of stacking bandwidth per unit. VCStack LD allows stacks to extend over fiber links for deployments across multiple buildings or campuses.

Q: Does this switch support IPv6 routing?

Yes. The AT-X930-52GPX-B91 includes a comprehensive IPv6 feature set with full Layer 3 routing support including OSPFv3, BGP, and static IPv6 routes, making it suitable for networks transitioning to or running native IPv6.

Q: What happens to PoE-powered devices during a stack failover?

The Continuous PoE feature ensures that PoE delivery to connected devices is maintained during stack failover events. This is critical for IP phones, access control panels, and surveillance cameras that require uninterrupted power during network reconfiguration.

Q: What security features does the AT-X930-52GPX-B91 include?

The switch includes tri-authentication (802.1X, MAC-based, and web-based authentication) for comprehensive end-point access control, loop guard, traffic type controls, and protection against network attacks including DoS. Secure management is available via SSH and SNMPv3.

Q: Is this switch compatible with Allied Telesis AMF networks?

Yes. The AT-X930-52GPX-B91 fully supports Allied Telesis AMF (Autonomous Management Framework), enabling it to participate in network-wide automated management, zero-touch provisioning, and disaster recovery alongside other AMF-compatible Allied Telesis devices.

Q: Where can I purchase the AT-X930-52GPX-B91?

The AT-X930-52GPX-B91 is available at Creation Networks (https://creationnetworks.net), an authorized Allied Telesis reseller with expertise in enterprise networking solutions.
