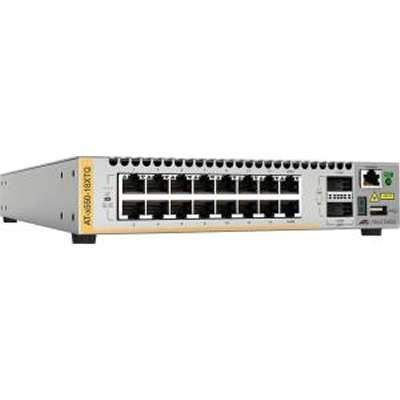

Allied Telesis AT-X550-18XTQ-10 – 10GBase-T Stackable Switch with 40G Uplinks

Product Overview

The Allied Telesis AT-X550-18XTQ-10 is an Allied Telesis x550 10GBase-T stackable switch designed for high-density 10 Gigabit wiring closet and campus aggregation deployments. Featuring 16 x 1G/10GBase-T copper ports and 2 x 40G QSFP uplinks, this Layer 3 switch delivers wire-speed 10GbE connectivity over standard Cat6A cabling. Long-tail keywords: 10GBase-T stackable Layer 3 switch with 40G uplinks, Allied Telesis x550 campus aggregation switch.

Product Description

The AT-X550-18XTQ-10 is part of the Allied Telesis x550 Series, a purpose-built platform for 10 Gigabit aggregation at the campus distribution layer and wiring closet. Its 16 x 1G/10GBase-T ports provide dual-speed flexibility for connecting servers, NAS appliances, or high-performance workstations over existing Cat6A structured cabling, eliminating the cost of fiber optic infrastructure at the access tier. The 2 x 40G QSFP ports serve as high-bandwidth uplinks to core switches or as VCStack inter-switch links, giving each stack up to 80Gbps of stacking bandwidth. AlliedWare Plus, Allied Telesis's enterprise-class operating system, runs on all x550 models and delivers a comprehensive Layer 3 feature set including OSPF, BGP, Policy-Based Routing, and IPv6. VCStack technology allows multiple x550 switches to operate as a single logical device, simplifying management and providing a no single-point-of-failure architecture across the distribution layer. EPSRing and IEEE G.8032 Ethernet Ring Protection enable rapid failover for ring topologies, making the x550-18XTQ suitable for resilient building distribution designs. The switch is SDN-ready with OpenFlow v1.3 and supports sFlow for real-time performance monitoring and traffic analysis. With a power consumption of 128 W and a compact 1U rack form factor, the AT-X550-18XTQ-10 fits standard data closets and supports front-end management access. Order the AT-X550-18XTQ-10 from Creation Networks, your authorized Allied Telesis reseller.

Key Features

• 16 x 1G/10GBase-T Copper Ports — Supports both 1GbE and 10GbE over Cat6A twisted-pair cabling up to 100 meters, preserving existing copper infrastructure investment.
• 2 x 40G QSFP Uplinks — Dual 40 Gigabit QSFP ports provide high-bandwidth uplinks to core switches or act as VCStack inter-unit links.
• Layer 3 Switching — Full Layer 3 routing with OSPF, BGP4, static routing, and Policy-Based Routing enables scalable, routed distribution layer designs.
• VCStack Stacking — Stack multiple x550 units via QSFP ports for a single logical switch with no single point of failure and simplified management.
• AlliedWare Plus OS — Enterprise-class operating system with a broad protocol suite, CLI, SNMP v1/v2c/v3, SSH, Web GUI, and RESTful API support.
• OpenFlow v1.3 (SDN-ready) — Supports Software Defined Networking for centralized network programmability and traffic engineering.
• sFlow Monitoring — Built-in sFlow agent provides real-time network performance data and traffic analysis without dedicated probes.
• EPSRing & G.8032 Ring Protection — Sub-50ms convergence on ring-based topologies ensures high availability for campus distribution designs.
• AMF (Autonomous Management Framework) — Automates zero-touch node recovery, centralized configuration management, and plug-and-play network expansion.
• 1U Rack-Mountable Form Factor — Compact 1U chassis fits standard 19" rack enclosures with front-to-back airflow and a fixed internal power supply.

Typical Applications

• Campus distribution layer aggregating 1G/10G access switches
• Data center top-of-rack switch for server 10GBase-T connectivity
• Enterprise wiring closet deploying 10GbE over existing Cat6A cabling
• High-performance workgroup switching for media production or engineering environments
• Building distribution with resilient ring topology and 40G uplinks to core
• SDN-enabled network segments with OpenFlow controller integration

Technical Specifications

Frequently Asked Questions

Q: Is the AT-X550-18XTQ-10 compatible with other Allied Telesis x550 switches in a stack?

Yes. The AT-X550-18XTQ-10 supports VCStack via its QSFP ports, allowing multiple x550 units to operate as a single logical device with unified management and no single point of failure.

Q: What cabling is required for the 10GBase-T ports?

The 16 x 10GBase-T ports support Cat6A cabling at 10Gbps speeds up to 100 meters, and also operate at 1GbE speeds on Cat5e/Cat6 cabling, providing backward compatibility with existing infrastructure.

Q: What transceivers are compatible with the 40G QSFP ports?

The QSFP ports support 40GBase-SR4 and 40GBase-LR4 QSFP transceivers. Allied Telesis recommends Allied Telesis-branded QSFP modules for guaranteed compatibility and support.

Q: Can the AT-X550-18XTQ-10 be managed remotely?

Yes. The switch supports full remote management via CLI (SSH/Telnet), SNMP v1/v2c/v3, Web GUI, and Allied Telesis AMF for centralized multi-switch management across the network.

Q: Does the x550-18XTQ support SDN?

Yes. The switch is OpenFlow v1.3 certified and can be integrated with SDN controllers for programmable traffic engineering and centralized network control.

Q: What routing protocols does the AT-X550-18XTQ-10 support?

The switch supports OSPF, BGP4, RIP, static routing, Policy-Based Routing, and a full IPv6 protocol suite via the AlliedWare Plus operating system.

Q: What is the warranty for the AT-X550-18XTQ-10?

Allied Telesis provides a limited lifetime hardware warranty on x550 Series switches. Contact Creation Networks for full warranty and support terms.

Q: Where can I buy the AT-X550-18XTQ-10?

Purchase the AT-X550-18XTQ-10 directly from Creation Networks, an authorized Allied Telesis reseller offering competitive pricing and expert pre-sales support.
