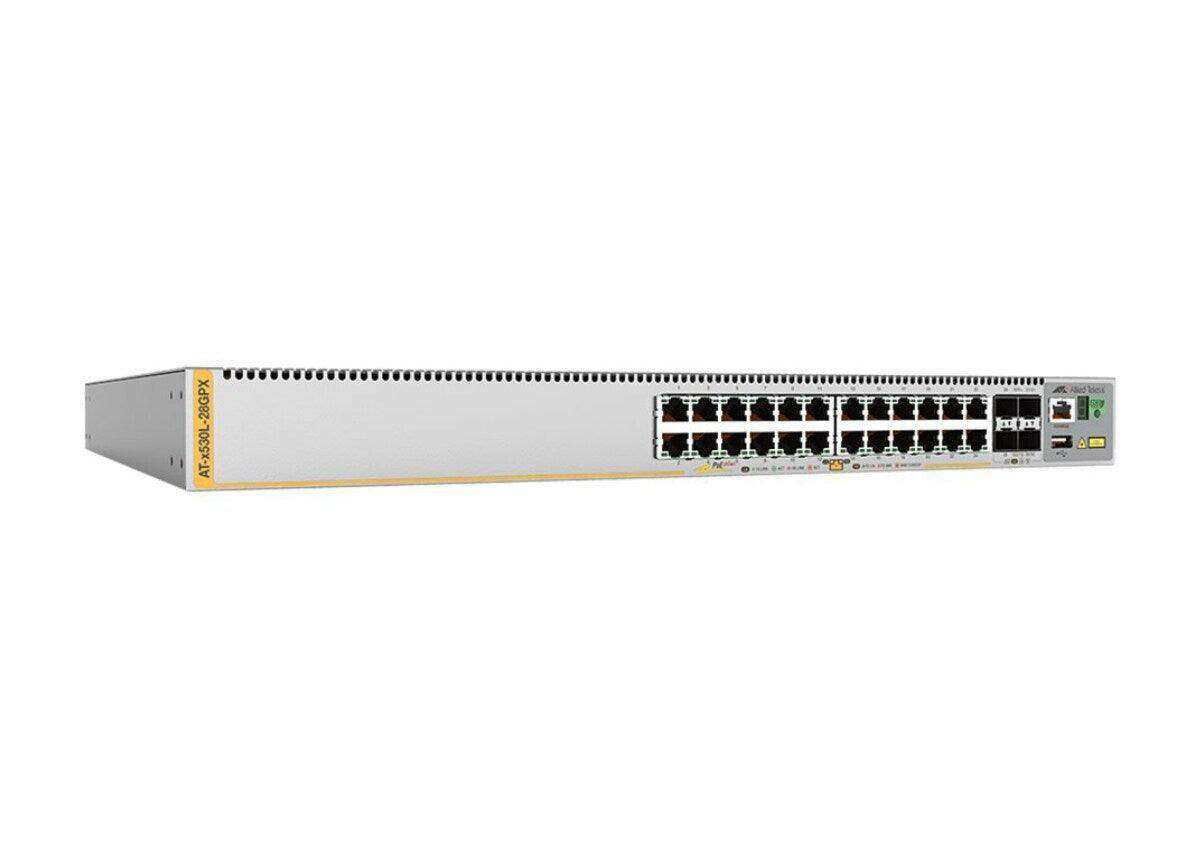

Allied Telesis AT-X530L-28GPX-90 – 24-Port PoE+ L3 Stackable Switch, 4x SFP+

Product Overview

The Allied Telesis AT-X530L-28GPX-90 is a TAA-compliant Allied Telesis x530L 24-port PoE+ stackable switch built for enterprise campus access deployments that require both Power over Ethernet and high-speed uplinks. It delivers 24 x 10/100/1000T PoE+ ports with a 740W PoE power budget, plus 4 x 10G SFP+ ports for distribution-layer connectivity, all in a 1U rack-mountable chassis. The -90 suffix denotes the 90W PoE++ per-port capability available on the GHXm models within the series; the 28GPX variant supports up to 30W PoE+ per port across all 24 copper ports with the 740W total budget. Available from Creation Networks, an authorized Allied Telesis reseller.

Product Description

The AT-X530L-28GPX-90 is purpose-built for access-layer deployments where powering IP cameras, VoIP phones, wireless access points, and other PoE-powered endpoints is required alongside full Layer 3 routing. All 24 copper RJ-45 ports support IEEE 802.3at PoE+ at up to 30W per port, with a total PoE budget of 740W sourced through dual fixed AC power supplies. Continuous PoE technology maintains uninterrupted power to connected endpoints even during a switch firmware upgrade, eliminating the need to schedule maintenance windows for software updates. The four 10G SFP+ ports provide high-bandwidth uplinks to distribution or core switches and can alternatively be configured as VCStack stacking ports. VCStack supports up to 8 x530L-series units in a single logical stack, managed as one device. The AT-FL-x53L-MSTK license enables mixed stacking with x530-series switches. AlliedWare Plus delivers the full enterprise feature set, including AMF Plus for zero-touch provisioning, EPSRing and G.8032 ERPS for sub-50ms ring protection, and Active Fiber Monitoring for fiber link security. The switch is TAA compliant, qualifying it for US Government and Department of Defense procurement. FIPS 140-2 certification and JITC listing are available at the series level. Power consumption without PoE load is 70W; under full PoE+ load, maximum system draw reaches 890W requiring adequate PDU capacity.

Key Features

• 24 x 10/100/1000T PoE+ ports — IEEE 802.3at PoE+ up to 30W per port for cameras, APs, and VoIP phones.
• 740W total PoE power budget — Supports simultaneous powering of all 24 PoE+ endpoints at shared load.
• 4 x 10G SFP+ uplink ports — High-bandwidth fiber or DAC uplinks; dual-use as VCStack stacking ports.
• Continuous PoE — Endpoints remain powered during firmware upgrades, eliminating maintenance downtime.
• VCStack up to 8 units — Stack x530L switches locally or over distance as a single logical device.
• TAA Compliant — Meets Trade Agreement Act requirements for US Government procurement.
• AlliedWare Plus OS — Enterprise-class operating system with full L3 feature set and industry-standard CLI.
• AMF Plus — Zero-touch provisioning, automated config backup, and plug-and-play node recovery.
• EPSRing and G.8032 ERPS — Sub-50ms ring protection switching for campus backbone resilience.
• Active Fiber Monitoring (AFM) — Detects unauthorized physical taps on fiber stacking and uplink links.
• Dual fixed AC power supplies — Redundant load-sharing PSUs for continuous uptime; 70W base consumption.
• FIPS 140-2 certified (series) — Validated cryptographic module for secure government and defense deployments.

Typical Applications

• Enterprise campus wiring closets with high PoE endpoint density (APs, cameras, VoIP)
• Wi-Fi 6 access point aggregation with PoE+ power delivery
• IP surveillance deployments requiring 24-port PoE+ with resilient stacking
• US Government and DoD campus access switching (TAA compliant)
• Smart building infrastructure: lighting controllers, badge readers, and PoE sensors
• Stackable distribution layer with long-distance VCStack to reduce management overhead

Technical Specifications

Frequently Asked Questions

Q: What is the total PoE power budget of the AT-X530L-28GPX-90?

The switch provides a total PoE budget of 740W distributed across all 24 PoE+ ports. Individual ports support up to 30W under IEEE 802.3at. Maximum system power draw under full PoE+ load is 890W.

Q: Does the switch maintain power to endpoints during firmware upgrades?

Yes. Continuous PoE (licensed via AT-FL-x53L-CPOE) maintains uninterrupted power to all PoE endpoints during AlliedWare Plus firmware upgrades, eliminating the need to schedule maintenance windows.

Q: How many switches can be stacked using VCStack?

Up to 8 x530L-series units can be stacked. With the AT-FL-x53L-MSTK mixed stacking license, x530L switches can also be stacked with x530-series units.

Q: Is this switch TAA compliant for US Government procurement?

Yes. The AT-X530L-28GPX-90 is TAA compliant and is listed on the JITC Approved Products List (APL) at the series level, qualifying it for US Government and DoD purchases.

Q: What SFP+ transceivers are compatible with the uplink ports?

The four 10G SFP+ ports accept Allied Telesis-branded SFP+ transceivers (SR, LR, ER) and compatible DAC cables. Consult Allied Telesis compatibility documentation for approved options.

Q: Does this model support PoE++ (90W) per port?

The 28GPX model supports IEEE 802.3at PoE+ at up to 30W per port. The x530L-GHXm models (10-port and 18-port) within the series support PoE++ at up to 90W per port.

Q: Where can I purchase the AT-X530L-28GPX-90?

Available from Creation Networks, an authorized Allied Telesis reseller. Visit creationnetworks.net for pricing and to request a quote.
