Allied Telesis AT-X530L-18GHXM-B11 – 16-Port Multi-Gigabit PoE++ Switch with 1-Year NCP

Product Overview

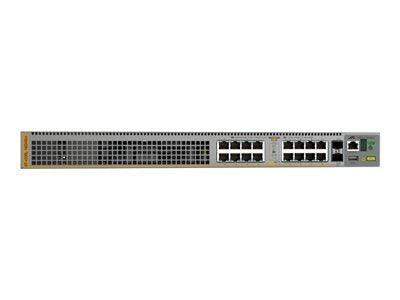

The Allied Telesis AT-X530L-18GHXM-B11 is a 16-port multi-gigabit PoE++ Layer 3 stackable switch bundled with a 1-year Allied Telesis Network Coverage Plan (NCP) software maintenance agreement. This is the -B11 bundle variant of the x530L-18GHXM platform — the hardware is identical to the -10 standard variant, but the -B11 suffix indicates the inclusion of a 1-year NCP bundle covering software updates, access to new AlliedWare Plus feature releases, and Allied Telesis support entitlement for the covered term. The switch delivers 16 x 100M/1G/2.5G/5G-T PoE++ copper ports and 2 x SFP+ uplinks in a single fixed 1U chassis. For procurement teams seeking an Allied Telesis x530L 16-port multi-gigabit PoE++ switch with 1-year NCP, the -B11 is the correct SKU — eliminating the need for a separate NCP purchase at the time of deployment.

Product Description

The AT-X530L-18GHXM-B11 combines proven x530L multi-gigabit hardware with the convenience of a pre-bundled 1-year NCP software maintenance agreement, simplifying the procurement process for organizations that require software support coverage from day one. The switch provides 16 x 100M/1G/2.5G/5G-T copper ports, all PoE++-capable under IEEE 802.3bt, delivering up to 90W per port and a total PoE budget of 720W for powering the latest generation of high-power wireless access points, PTZ cameras, digital signage, and enhanced lighting controllers. The auto-negotiating multi-speed ports operate over existing Cat5e or Cat6 cabling, protecting prior infrastructure investments while delivering the bandwidth necessary for Wi-Fi 6 and Wi-Fi 6E backhaul. Two SFP+ expansion slots accept 1G or 10G fiber or copper transceivers for aggregation uplinks. The switch ships with a single fixed internal power supply — a design characteristic of the x530L series that delivers the appropriate cost-performance balance for access layer deployments where upstream redundancy is handled at the distribution tier. AlliedWare Plus (AW+) provides the full suite of Layer 3 routing protocols, QoS, security ACLs, VLAN capabilities, and IPv6 support. Allied Telesis Autonomous Management Framework Plus (AMF Plus) enables the network to be managed as a single virtual device, with zero-touch provisioning, automated configuration backup, and plug-and-play recovery. VCStack supports up to 81 units in a virtual chassis, locally or across long-distance fiber links. The included 1-year NCP bundle covers Allied Telesis software updates for AlliedWare Plus, ensuring the deployed switch receives security patches and feature enhancements throughout the coverage period without a separate licensing purchase.

Key Features

• 1-Year NCP Bundle Included — The -B11 suffix means a 1-year Network Coverage Plan software maintenance agreement is pre-bundled at purchase, covering software updates and Allied Telesis support entitlement.
• 16 x PoE++ Multi-Gigabit Ports — IEEE 802.3bt (PoE++) at up to 90W per port across 100M/1G/2.5G/5G auto-negotiating copper interfaces.
• 720W Total PoE Budget — Sustains simultaneous high-power delivery to up to 16 endpoints including next-generation Wi-Fi 6E APs and high-resolution PTZ cameras.
• 2 x SFP+ Uplinks — 10G-capable fiber or copper uplink slots for aggregation connectivity to distribution or core switching.
• VCStack up to 81 Units — Local or long-distance virtual chassis stacking with a single unified management plane across the entire stack.
• AlliedWare Plus OS — Enterprise Layer 3 operating system with full routing, QoS, security, and optional premium license features.
• AMF Plus Automation — Autonomous Management Framework Plus for zero-touch provisioning, automated backup, and self-healing network recovery.
• Single PSU Fixed Config — Cost-optimized x530L form factor with one internal power supply; single-chassis design suited for deployments with upstream distribution-tier redundancy.

Typical Applications

• Enterprise wiring closet deployments where bundled NCP simplifies procurement and day-one software support coverage
• High-density Wi-Fi 6/6E access layer requiring 2.5G or 5G backhaul per port with PoE++ power delivery
• IP video surveillance networks with high-power PTZ cameras requiring up to 90W PoE++ per port
• Campus access distribution with VCStack for simplified large-scale management
• Education and government projects where multi-year software maintenance compliance is a procurement requirement

Technical Specifications

Frequently Asked Questions

Q: What does the -B11 suffix mean on the AT-X530L-18GHXM-B11?

The -B11 suffix indicates that this SKU includes a 1-year Allied Telesis Network Coverage Plan (NCP) software maintenance bundle. NCP covers access to AlliedWare Plus software updates, security patches, and Allied Telesis support services for a 12-month period from the date of activation. The hardware is identical to the -10 variant.

Q: Is this the same hardware as the AT-X530L-18GHXM-10?

Yes, the hardware platform is identical. The only difference is the inclusion of the 1-year NCP bundle with the -B11 SKU. If you already have an active NCP agreement or do not require bundled software maintenance, the -10 variant provides the same switch at a lower initial cost.

Q: What PoE standard does this switch support?

All 16 copper ports support IEEE 802.3bt (PoE++), delivering up to 90W per port on select ports. The total PoE budget is 720W. This exceeds the requirements of virtually all current Wi-Fi 6E access points, PTZ cameras, and high-power IoT endpoints.

Q: Does the -B11 come with a single or dual power supply?

The AT-X530L-18GHXM-B11 ships with a single fixed internal power supply. This is consistent with the x530L series design. For deployments requiring hardware PSU redundancy at the switch level, consider the full x530 series which includes dual power supplies.

Q: Can this switch stack with AT-X530 (non-L) units?

Yes, with the appropriate mixed stacking license (AT-FL-x53L-MSTK). Without this license, the x530L stacks only with other x530L units. Up to 81 x530L units can form a VCStack locally or over long-distance fiber links.

Q: What is the NCP renewal process after the first year?

After the initial 1-year NCP period covered by the -B11 bundle expires, NCP can be renewed through Allied Telesis or an authorized reseller such as Creation Networks. Renewal maintains access to AlliedWare Plus software updates and Allied Telesis support entitlement.

Q: Where can I purchase the AT-X530L-18GHXM-B11?

The AT-X530L-18GHXM-B11 is available directly from Creation Networks at creationnetworks.net. Our team can assist with NCP renewal planning, volume pricing, and pre-sales technical support.
