Allied Telesis AT-X530L-10GHXM-90 – Compact 8-Port PoE++ Multi-Gigabit L3 Switch

Product Overview

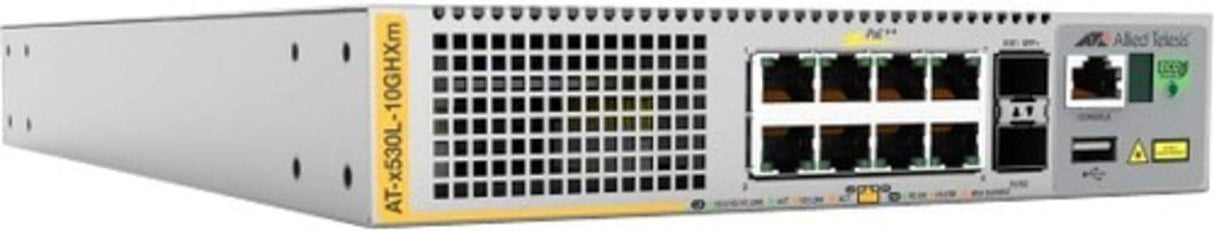

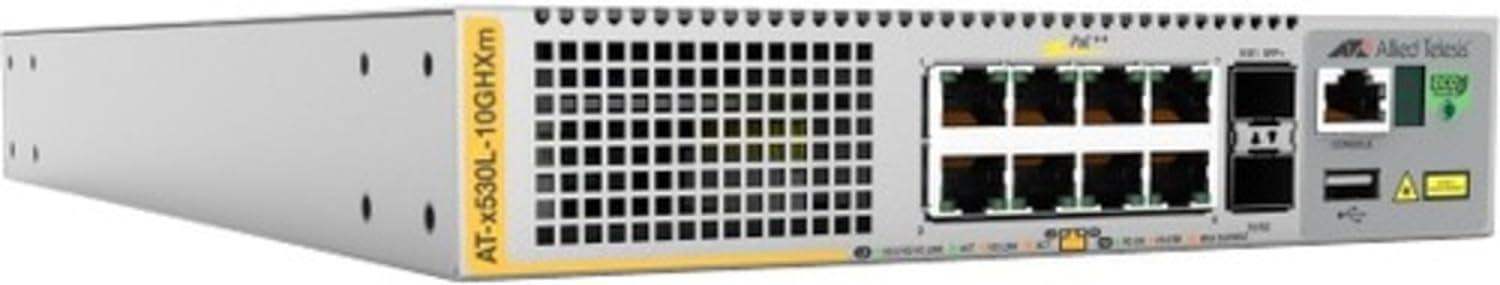

The Allied Telesis x530L-10GHXm (AT-X530L-10GHXM-90) is an ultra-compact, TAA-compliant Layer 3 stackable switch purpose-built for wiring closets and high-density PoE access deployments. It delivers 8 x 100M/1/2.5/5G multi-gigabit PoE++ access ports and 2 x 10G SFP+ uplinks in a space-efficient 1U chassis that measures just 8.27 inches wide—making it the right tool when you need concentrated high-power endpoint delivery with a minimal rack footprint. The -90 suffix indicates TAA compliance with no bundled support contract, giving procurement teams clean acquisition for government and regulated environments.

Product Description

The Allied Telesis x530L 8-port PoE++ multi-gigabit compact switch is engineered for environments where a small number of high-power endpoints—PTZ cameras, 802.11ax access points, intelligent LED lighting controllers, or video intercoms—must be powered and connected at speeds beyond standard gigabit. Each of the 8 RJ-45 access ports auto-negotiates at 100M, 1G, 2.5G, or 5G, providing the bandwidth headroom that Wi-Fi 6 and Wi-Fi 6E APs demand over existing Cat5e/Cat6 cabling without a costly rewire. IEEE 802.3bt PoE++ per-port delivery reaches 90W on up to 5 simultaneous ports, with a total PoE budget of 500W—sufficient to run a full complement of PTZ cameras at maximum wattage. Two fixed 10G SFP+ ports serve as high-speed uplinks or VCStack stacking interconnects, allowing up to 8 x530L units to be logically combined into a single managed stack with a 120Gbps switching fabric and 89.2Mpps forwarding rate. Continuous PoE ensures that powered devices remain online even when the switch performs a firmware upgrade—a critical operational benefit in always-on surveillance and access control deployments. The AlliedWare Plus enterprise operating system provides full Layer 3 routing, OSPF, RIP, ACLs, 802.1X, and AMF Plus network automation support. FIPS 140-2 certification and JITC approval make the x530L-10GHXm a qualified option for Department of Defense and federal civilian networks. The -90 SKU is TAA compliant and ships without a software support bundle, allowing separate procurement of Net Cover support as needed. Available from Creation Networks with expert pre-sales and post-sales support at creationnetworks.net.

Key Features

• 8 x 100M/1/2.5/5G PoE++ Ports (IEEE 802.3bt) — Up to 90W per port; supports Wi-Fi 6/6E APs and high-power PTZ cameras over existing Cat5e/Cat6 infrastructure.
• 500W Total PoE Budget — Sustains up to 5 ports at full 90W simultaneously; adequate for demanding multi-device wiring closet deployments.
• 2 x 10G SFP+ Uplink/Stack Ports — Dual-purpose ports configurable as 10G uplinks or VCStack stacking links for multi-unit logical switch aggregation.
• VCStack — Up to 8 Units — Stack locally or over long-distance fiber with a single management plane and no single point of failure.
• Continuous PoE — Powered devices stay online during switch firmware upgrades, eliminating endpoint downtime during maintenance windows.
• Ultra-Compact Form Factor — 210 x 362 x 42.5mm (8.27 x 14.25 x 1.67 in); rack-mountable or wall-mountable with optional brackets.
• TAA Compliant (-90 SKU) — Meets Trade Agreements Act requirements for US Government and DoDIN procurement.
• AlliedWare Plus OS — Enterprise routing and switching feature set with AMF Plus automation, EPSRing, ERPS G.8032, and FIPS 140-2 cryptographic certification.

Typical Applications

• Wiring closet PoE access switch for Wi-Fi 6/6E access point deployments over multi-gigabit links
• Physical security edge switch powering PTZ cameras, NVRs, and access control panels at 90W per port
• Federal and government network edge (TAA compliant, JITC approved, FIPS 140-2 certified)
• Stacked multi-unit access layer alongside x530L-28 or x530L-52 models for unified management
• Smart building IDF closets where rack space is constrained but PoE wattage demand is high

Technical Specifications

Frequently Asked Questions

Q: What does the -90 suffix mean on AT-X530L-10GHXM-90?

The -90 suffix indicates TAA (Trade Agreements Act) compliance and no included Net Cover support bundle. The hardware is identical to other x530L-10GHXm variants; support can be added separately through Allied Telesis Net Cover.

Q: How many ports can deliver 90W PoE++ simultaneously?

The x530L-10GHXm supports 90W (PoE++) on up to 5 ports simultaneously within the 500W total PoE budget. All 8 ports support PoE++ at 60W, or PoE+ at 30W across all 8 ports.

Q: Can this switch stack with other Allied Telesis models?

Yes. The x530L-10GHXm supports VCStack with other x530L models. Mixed stacking with x530 (non-L) models requires the optional AT-FL-x53L-MSTK license.

Q: What is Continuous PoE and why does it matter?

Continuous PoE (requires AT-FL-x53L-CPOE license) maintains power to connected endpoints even during a switch firmware upgrade. This is critical for surveillance cameras, access control readers, and VoIP phones that must not lose power during maintenance.

Q: Is the x530L-10GHXm suitable for Wi-Fi 6 access point backhaul?

Yes. The 2.5G and 5G access port speeds align precisely with Wi-Fi 6 and Wi-Fi 6E AP throughput requirements, and the 90W PoE++ budget accommodates high-power tri-band APs that draw 30–60W.

Q: How does this differ from the x530L-18GHXm?

The x530L-10GHXm has 8 multi-gigabit PoE++ ports vs. 16 on the x530L-18GHXm, and a narrower 210mm chassis vs. 441mm. It is optimized for smaller closets needing fewer but high-wattage connections. The 18GHXm adds dual PSUs and higher total PoE budget (720W).

Q: Where can I purchase the AT-X530L-10GHXM-90 with technical support?

Creation Networks is an authorized Allied Telesis reseller. Visit creationnetworks.net for pricing, availability, and pre-sales engineering assistance.
