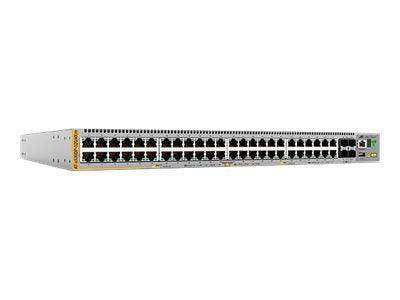

Allied Telesis AT-X530DP-52GHXM – 52-Port PoE++ Layer 3 Stackable Switch

Product Overview

The Allied Telesis x530DP-52GHXM is a high-density Allied Telesis x530DP stackable PoE enterprise switch engineered for demanding enterprise campus wiring closets and distribution layers. Delivering 1,480 W of PoE++ budget across 48 ports, this Layer 3 switch is purpose-built for organizations deploying high-power IP devices at scale, including IEEE 802.3bt-compliant endpoints. As a managed enterprise PoE stackable switch with 10G uplinks, the AT-X530DP-52GHXM is an ideal foundation for converged wired and wireless network infrastructure requiring both performance and resilience.

Product Description

The AT-X530DP-52GHXM provides 24 x 10/100/1000T PoE++ ports (IEEE 802.3bt, up to 90 W per port), 16 x 10/100/1000T non-PoE access ports, 8 x combo SFP/RJ45 ports supporting up to 5 Gigabit, and 4 x SFP+ 10 Gigabit uplink expansion slots — totaling 52 physical ports. With a 1,480 W PoE budget, the switch can simultaneously power demanding devices such as multi-radio Wi-Fi 6/6E access points, IP cameras, and smart building controllers without external injectors. Layer 3 routing capabilities — including static routing, RIP, and OSPF via AlliedWare Plus — enable efficient inter-VLAN communication and distributed routing architectures. The switch supports Virtual Chassis Stacking (VCStack) of up to eight units, allowing the stack to appear and be managed as a single logical device for simplified operations and enhanced resiliency. Long Distance Stacking (VCStack LD) extends stacking over fiber links, making it suitable for distributed campus environments. Allied Telesis Autonomous Management Framework (AMF) enables zero-touch provisioning, automated backup and recovery, and network-wide configuration management from a single pane of glass. Vista Manager EX provides graphical monitoring and management of the entire AMF network including Autonomous Wave Control (AWC) wireless devices. Ethernet Protection Switched Ring (EPSRing) and IEEE G.8032 Ethernet Ring Protection deliver sub-50ms failover for high-availability ring topologies. The AlliedWare Plus operating system underpins all switching and routing functions with enterprise-grade security including tri-authentication (802.1X, MAC-based, and web authentication), ACLs, and DHCP snooping. The AT-X530DP-52GHXM ships with 19-inch rack-mount brackets and is EU RoHS and China RoHS certified.

Key Features

• 1,480 W Total PoE++ Budget — Powers up to 48 IEEE 802.3bt devices simultaneously; up to 90 W per port for high-draw endpoints.
• 24 x PoE++ + 16 x Non-PoE GbE Access Ports — Flexible port mix supports mixed-device deployments without over-provisioning.
• 8 x Combo SFP/RJ45 Multi-Gigabit Ports (up to 5G) — Future-ready uplinks for high-density wireless aggregation over existing cabling.
• 4 x SFP+ 10G Uplink Expansion Slots — High-throughput connectivity to distribution or core layer switches.
• VCStack — Stack up to 8 Units — Logical single-device management, no single point of failure, near-hitless failover.
• VCStack LD (Long Distance Stacking) — Create stacks across fiber links for geographically distributed wiring closets.
• Allied Telesis AMF (Autonomous Management Framework) — Zero-touch provisioning, automated backup, and unified network-wide management.
• AlliedWare Plus Operating System — Enterprise-class OS with full Layer 3 routing, security, and QoS feature set.
• EPSRing & G.8032 Ethernet Ring Protection — Sub-50ms failover for resilient ring network topologies.
• Layer 3 Routing (Static, RIP, OSPF) — Reduces reliance on a dedicated router for inter-VLAN and campus routing.
• Tri-Authentication (802.1X / MAC / Web) — Comprehensive access control for wired endpoints and guest networks.
• EU & China RoHS Certified — Meets international environmental compliance requirements.

Typical Applications

• Enterprise campus wiring closet switch for high-density PoE deployments (Wi-Fi 6/6E APs, IP cameras, VoIP, smart building IoT sensors)
• Distribution-layer aggregation in multi-building campus networks with VCStack LD over fiber
• Unified wired and wireless network management via AMF and Vista Manager EX
• Converged access switch for mixed PoE and non-PoE device environments
• Resilient ring topology deployments using EPSRing or G.8032 ERPS

Technical Specifications

Frequently Asked Questions

Q: How many units can be stacked with the AT-X530DP-52GHXM?

Up to eight x530DP units can be stacked using VCStack, presenting as a single logical device. VCStack LD extends stacking across fiber links for distributed campus environments.

Q: What is the total PoE budget and maximum per-port PoE power?

The AT-X530DP-52GHXM provides 1,480 W of total PoE budget. Individual PoE++ ports support up to 90 W per port under IEEE 802.3bt, suitable for high-draw devices like multi-radio Wi-Fi 6E access points and pan-tilt-zoom cameras.

Q: Which PoE standard does this switch support?

The switch supports IEEE 802.3bt (PoE++), which is backward compatible with IEEE 802.3at (PoE+) and IEEE 802.3af (PoE) devices.

Q: What SFP modules are compatible with the 4 x SFP+ uplink slots?

The SFP+ slots are compatible with Allied Telesis-certified 10G SFP+ transceivers including SR, LR, and DAC options. Use of Allied Telesis-qualified optics is recommended to ensure full feature support and warranty coverage.

Q: Does the AT-X530DP-52GHXM support mixed stacking with other Allied Telesis switches?

The x530DP series stacks with x530 series switches using VCStack, enabling mixed-model stacks of up to eight units for flexible network expansion.

Q: What Layer 3 routing protocols are supported?

AlliedWare Plus supports static routing, RIPv1/v2, OSPFv2/v3, and BGP, providing full Layer 3 routing capabilities for campus distribution and core deployments.

Q: Where can I purchase the AT-X530DP-52GHXM and get pre-sales support?

The AT-X530DP-52GHXM is available through Creation Networks at creationnetworks.net. Contact our team for volume pricing, configuration assistance, and compatibility guidance.
