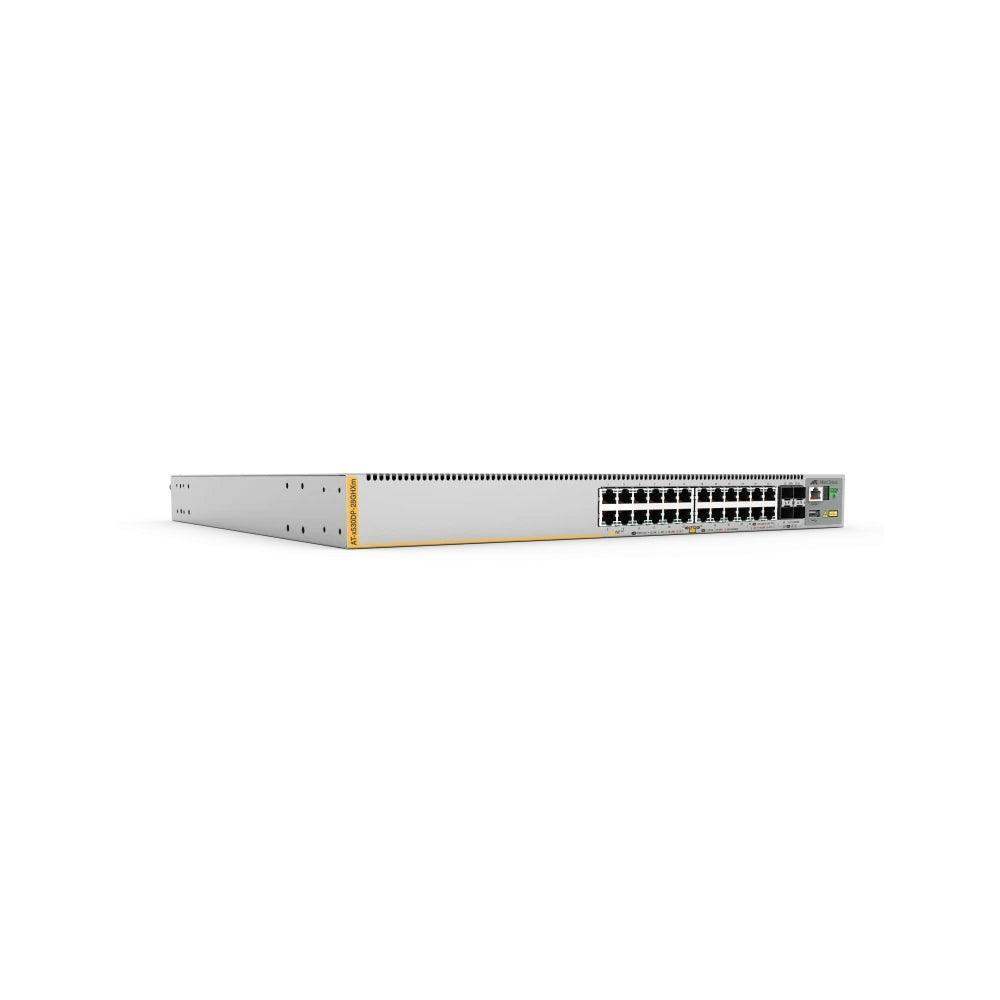

Allied Telesis AT-X530DP-28GHXM-B01 – 24-Port PoE++ Multi-Gigabit Layer 3 Switch, 1-Year NCP

Product Overview

The Allied Telesis AT-X530DP-28GHXM-B01 is an Allied Telesis x530DP 24-port PoE++ multi-gigabit Layer 3 switch with a 1-year NCP software bundle. The -DP designation stands for Dense PoE, indicating 802.3bt PoE++ capability delivering up to 60W per port and a total system PoE budget of 1480W — approximately double that of the AT-X530-28GPXM-B11 (802.3at PoE+, 740W budget). This makes it the correct choice for high-wattage endpoints including 802.3bt access points, PTZ pan-tilt-zoom cameras, and other 45–60W powered devices. The -B01 suffix designates the 1-year NCP bundle, identical in structure to the -B11 on the GPXM model.

Product Description

The AT-X530DP-28GHXM-B01 is purpose-built for enterprise and industrial environments where high-wattage powered devices are the norm. The x530DP platform doubles the per-port and total PoE power budget compared to the standard x530-28GPXM: 802.3bt PoE++ at up to 60W per port versus 802.3at PoE+ at up to 30W, and a 1480W total budget versus 740W. This capacity is essential for powering 802.3bt wireless access points, multi-sensor IP cameras, digital signage, industrial controllers, and other devices that exceed the 30W ceiling of PoE+. All 24 copper ports support PoE++, with 20 ports at 10/100/1000Base-T PoE++ and 4 ports at multi-gigabit 100M/1G/2.5G/5G PoE++. The latter four ports allow direct-connect high-bandwidth endpoints over Cat5e/Cat6 without fiber rewiring. Four SFP+ slots provide 10G uplinks to the distribution layer. The -B01 suffix indicates a 1-year NCP (Network Coverage Program) software bundle, covering AlliedWare Plus license updates, firmware maintenance, priority technical support, and advance hardware replacement. This is the same NCP coverage structure as the -B11 on the GPXM model, applied here to the DP (PoE++) platform. Dual hot-swappable power supplies maximize uptime, and VCStack allows up to 8 units to form a resilient virtual chassis over local or long-distance fiber links. AMF provides zero-touch provisioning and automated backup across the entire AMF network domain. The switch includes FIPS 140-2 validation, UL/cUL safety certification, and supports full IPv4/IPv6 Layer 3 routing. Available at creationnetworks.net.

Key Features

• 802.3bt PoE++ on All 24 Copper Ports — Up to 60W per port; 1480W total PoE budget for high-wattage PTZ cameras, 802.3bt APs, and industrial endpoints.
• 4x Multi-Gigabit PoE++ Ports (100M/1G/2.5G/5G-T) — 2.5G/5G copper speeds with full PoE++ power delivery over Cat5e/Cat6.
• Dual Hot-Swappable Power Supplies — Maximize uptime; higher PoE budgets supported versus standard x530 models.
• 1-Year NCP Bundle (-B01) — AlliedWare Plus software subscription, priority support, and advance replacement included for year one.
• 4x SFP+ 10G Uplinks — Fiber or DAC uplinks to distribution or core switching.
• VCStack (up to 8 units) — Local or long-distance fiber stacking for virtual chassis resilience.
• AMF (Autonomous Management Framework) — Zero-touch provisioning, automated backup, and plug-and-play node recovery.
• FIPS 140-2 Validated — Cryptographic security validation for regulated environments.

Typical Applications

• Enterprise access layer with high-wattage 802.3bt APs and PTZ IP cameras
• Surveillance deployments requiring 45–60W per port for multi-sensor cameras
• Healthcare facilities powering medical-grade devices over PoE++
• Industrial and government networks where FIPS 140-2 cryptographic validation is required
• Large campuses needing bundled NCP software coverage with first-year procurement

Technical Specifications

Frequently Asked Questions

Q: What does -DP mean in x530DP?

DP stands for Dense PoE. The x530DP models deliver 802.3bt PoE++ at up to 60W per port with a 1480W total budget, compared to the standard x530 PoE+ models which provide 802.3at at 30W per port and a 740W budget.

Q: What is the difference between the -B01 and no-bundle (AT-X530DP-28GHXM) SKU?

The AT-X530DP-28GHXM-B01 includes a 1-year NCP (Network Coverage Program) software subscription covering AlliedWare Plus licenses, firmware updates, priority support, and advance hardware replacement. The standalone AT-X530DP-28GHXM ships without NCP and is priced lower accordingly.

Q: How does this compare to the AT-X530-28GPXM-B11?

The GHXM-B01 provides 802.3bt PoE++ (up to 60W per port, 1480W total), while the GPXM-B11 provides 802.3at PoE+ (30W per port, 740W total). Both include a 1-year NCP bundle. Choose the GHXM-B01 when your endpoints exceed 30W or when future-proofing for high-draw devices.

Q: Is this switch JITC certified?

No. JITC certification applies only to the AT-X530-28GTXM-J90. The x530DP models are certified under UL, FIPS 140-2, FCC Class A, and other commercial and federal standards, but are not JITC listed.

Q: What NCP coverage is included with -B01?

The -B01 NCP bundle provides 1 year of software coverage: AlliedWare Plus feature license, access to firmware updates, priority telephone and online technical support, and advance hardware replacement (next business day where available).

Q: Can this switch stack with other x530 models?

VCStack supports mixing compatible x530 and x530DP models in the same stack. Up to 8 units can be stacked locally or over fiber using VCStack LD.
