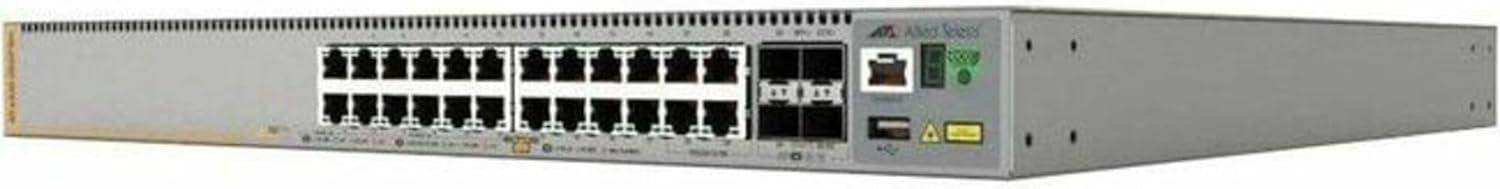

Allied Telesis AT-X530-28GPXM-J90 – JITC Certified L3 Switch, Mixed PoE+ and PoE++ Ports

Product Overview

The Allied Telesis AT-X530-28GPXM-J90 is a JITC-certified Layer 3 stackable switch designed for Department of Defense, federal, and classified network environments requiring Joint Interoperability Test Command approval. It provides a mixed PoE architecture of 20 standard 10/100/1000T PoE+ ports (IEEE 802.3at) alongside 8 NBASE-T multi-gigabit PoE++ ports (IEEE 802.3bt, up to 5G), plus four SFP+ 10G uplinks — combining broad device coverage with targeted high-bandwidth connections for Wi-Fi 6/6E APs and HD surveillance systems. The -J90 suffix specifically denotes JITC certification, distinguishing it from the commercial AT-X530-28GPXM (no suffix) and the 5-year warranty bundle AT-X530-28GPXM-B15. Available from Creation Networks at creationnetworks.net.

Product Description

The AT-X530-28GPXM-J90 delivers a hybrid access port design that matches the real-world device mix in federal and DoD facility networks. The 20 standard Gigabit PoE+ ports (IEEE 802.3at, up to 30W) serve IP phones, legacy APs, badge readers, and general PoE endpoints, while the 8 multi-gigabit NBASE-T PoE++ ports (100M/1G/2.5G/5G, IEEE 802.3bt) provide the higher bandwidth and wattage needed for Wi-Fi 6/6E access points and high-definition PTZ cameras. The combined 740W PoE budget provides ample headroom for fully loaded deployments. Running AlliedWare Plus on JITC-certified firmware, the switch satisfies DoD Unified Capabilities (UC) approval requirements, enabling it to be deployed on NIPRNet and SIPRNet edge infrastructure. VCStack supports up to eight x530 units in a logical stack with near-hitless failover, eliminating spanning tree convergence delays in mission-critical environments. Long Distance Stacking (VCStack LD) extends this capability over fiber links, enabling distributed building or campus topologies without sacrificing single-management-plane simplicity. Allied Telesis Management Framework (AMF) provides zero-touch node recovery, automated configuration backup, and centralized management — critical in federal environments where manual re-provisioning of remote nodes is operationally impractical. EPSRing and G.8032 ERPS deliver sub-50ms ring failover. Advanced security features include 802.1X tri-authentication, MACsec support (where applicable), dynamic ARP inspection, IP source guard, private VLAN, and control plane policing. The dual built-in power supplies provide PSU redundancy in a 1U chassis without an external RPS requirement, important for high-availability government network closets.

Key Features

• JITC Certified (-J90 Variant) — Meets DoD Joint Interoperability Test Command requirements for NIPRNet/SIPRNet edge deployment; distinct from non-certified commercial variants.
• 20 x 10/100/1000T PoE+ Ports (IEEE 802.3at) — Up to 30W per port for IP phones, legacy APs, badge readers, and general PoE devices.
• 8 x NBASE-T Multi-Gig PoE++ Ports (IEEE 802.3bt) — Auto-negotiates 100M/1G/2.5G/5G over Cat5e/Cat6; up to 90W per port for Wi-Fi 6/6E APs and HD cameras.
• 4 x SFP+ 10G Uplinks — Non-blocking fiber uplinks to aggregation, core, or data center switching.
• 740W Total PoE Budget — Mixed PoE+/PoE++ budget distributed dynamically across 28 access ports.
• Dual Built-In Power Supplies — Integrated redundant PSUs for high availability without an external RPS chassis.
• VCStack (up to 8 units, VCStack LD) — Scale to logical 224-port stacks; long-distance stacking over fiber for distributed government campus deployments.
• AlliedWare Plus OS (JITC Firmware) — Full Layer 3 routing (OSPF, BGP, VRRP), DoD-compliant security hardening, and comprehensive IPv6 support.
• Allied Telesis Management Framework (AMF) — Zero-touch provisioning and automated recovery critical for remote federal facilities.
• EPSRing and G.8032 ERPS — Sub-50ms ring failover for high-availability ring topologies.

Typical Applications

• DoD NIPRNet and SIPRNet edge access switching requiring JITC certification
• Federal agency wiring closets with mixed PoE device populations (phones, APs, cameras, badge readers)
• Military base and installation network infrastructure with high-bandwidth Wi-Fi 6/6E access point aggregation
• Intelligence community and classified network environments requiring UC-approved switching hardware
• Distributed government campus topologies using VCStack LD for centralized management over fiber

Technical Specifications

Frequently Asked Questions

Q: What does JITC certification mean for the AT-X530-28GPXM-J90?

JITC (Joint Interoperability Test Command) certification confirms the switch has been tested and approved for use on DoD networks including NIPRNet and SIPRNet. The -J90 suffix is the JITC-certified SKU. Commercial variants without this suffix are not cleared for these networks.

Q: How does the mixed PoE architecture work on this switch?

Ports 1-20 are standard 10/100/1000T PoE+ (IEEE 802.3at, up to 30W) suitable for IP phones, legacy APs, and general PoE endpoints. Ports 21-28 are NBASE-T multi-gig PoE++ (IEEE 802.3bt, up to 5G speed and 90W per port) for high-bandwidth, high-wattage devices like Wi-Fi 6/6E APs and HD PTZ cameras. The combined PoE budget is 740W.

Q: How does the AT-X530-28GPXM-J90 differ from the standard AT-X530-28GPXM?

The -J90 suffix designates JITC certification. The base model AT-X530-28GPXM is a commercially-sold switch without federal compliance validation. For any DoD or federal deployment requiring JITC-approved hardware, the J90 variant is required.

Q: What is the total PoE budget and how is it distributed?

The AT-X530-28GPXM-J90 provides a 740W total PoE budget distributed dynamically across all 28 access ports. Budget allocation prioritizes port usage so available wattage is shared across active PoE devices without static per-port reservation.

Q: Can VCStack be used to create larger stacks for high-density federal installations?

Yes. Up to eight AT-X530-28GPXM-J90 units can be stacked via VCStack into a single logical switch. VCStack LD extends this over long-distance fiber, enabling distributed building or campus stacks under a single management plane — ideal for large federal installation campuses.

Q: Does this switch support AMF for zero-touch recovery in remote locations?

Yes. Allied Telesis Management Framework (AMF) enables zero-touch node recovery: a replacement unit automatically receives its configuration upon connection, reducing mean time to restore for remote or unattended federal facilities.

Q: Where can I purchase the AT-X530-28GPXM-J90?

The AT-X530-28GPXM-J90 is available from Creation Networks at creationnetworks.net. Contact our team for DoD procurement vehicle compatibility, lead times, and volume pricing.
