Allied Telesis AT-X530-10GHXM-B15 – 8-Port Multi-Gig PoE++ Layer 3 Switch, 5-Year Warranty

Product Overview

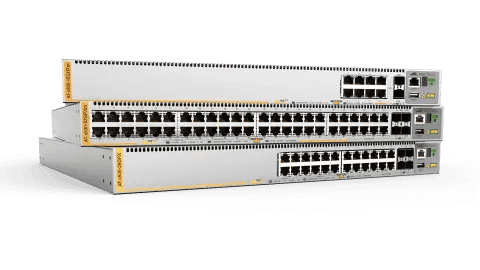

The Allied Telesis AT-X530-10GHXM-B15 is a compact 8-port multi-gigabit PoE++ Layer 3 stackable switch delivering 100M/1G/2.5G/5G NBASE-T speeds on every access port, backed by a 5-year warranty bundle (the -B15 suffix). With only 8 copper access ports plus two SFP+ 10G uplinks, this is a purpose-built high-density wireless aggregation switch — not a general-purpose 24- or 48-port access switch — designed to feed next-generation Wi-Fi 6/6E and Wi-Fi 7 access points that require multi-gigabit backhaul at up to 90W PoE++ per port. The -B15 suffix specifically denotes the 5-year warranty bundle, distinguishing it from the standard AT-X530-10GHXM. Available from Creation Networks at creationnetworks.net.

Product Description

The Allied Telesis x530 multi-gigabit PoE++ Layer 3 switch series addresses the bandwidth gap between 1G access infrastructure and the throughput requirements of modern wireless access points. The AT-X530-10GHXM-B15 provides 8 ports of IEEE 802.3bt PoE++ (up to 90W per port) with auto-negotiated speeds of 100M, 1G, 2.5G, and 5G over standard Cat5e/Cat6 cabling — eliminating the need for fiber drops or cable replacement when deploying Wi-Fi 6E or Wi-Fi 7 APs. The 720W total PoE budget ensures all 8 ports can simultaneously supply high-wattage devices including outdoor APs, PTZ cameras, and digital displays. Running AlliedWare Plus, the switch supports full Layer 3 routing including OSPFv2/v3, BGP, and VRRP, enabling it to serve as a routed distribution point in compact deployments. Two SFP+ 10G fiber uplinks provide non-blocking connectivity to the aggregation or core layer. VCStack enables up to eight x530 units to operate as a single logical switch, making it straightforward to scale by adding units as wireless density grows. Allied Telesis Management Framework (AMF) delivers zero-touch provisioning, automated configuration backup, and single-console management across the entire wired and wireless network. EPSRing and G.8032 ERPS provide fast-failover ring protection for high-availability topologies. The dual built-in power supplies provide inherent PSU redundancy without requiring an external RPS module. The -B15 suffix confirms this unit ships with a 5-year Allied Telesis hardware warranty, providing extended coverage for long-horizon deployments.

Key Features

• 8 x Multi-Gig NBASE-T PoE++ Ports (IEEE 802.3bt) — Auto-negotiates 100M/1G/2.5G/5G over Cat5e/Cat6; up to 90W per port for Wi-Fi 6/6E/7 APs and high-power edge devices.
• 720W Total PoE Budget — Full concurrent PoE++ delivery across all 8 access ports without power throttling.
• 2 x SFP+ 10G Fiber Uplinks — Non-blocking 10G uplinks to aggregation or core switching infrastructure.
• 5-Year Warranty Bundle (-B15) — Extended hardware coverage; distinguishes this SKU from the standard AT-X530-10GHXM without the warranty bundle.
• Dual Built-In Power Supplies — Integrated redundant PSUs provide high availability without an external RPS chassis.
• VCStack (up to 8 units) — Scale to a logical 64-port multi-gig stack; near-hitless failover with no STP convergence delay.
• AlliedWare Plus OS — Full Layer 3 routing (OSPF, BGP, VRRP), advanced QoS, and IPv6 support.
• Allied Telesis Management Framework (AMF) — Zero-touch provisioning and centralized management for multi-site networks.
• EPSRing and G.8032 ERPS — Sub-50ms ring failover for resilient distribution topologies.
• OpenFlow SDN Support — Compatible with SDN controllers for centralized traffic engineering.

Typical Applications

• High-density Wi-Fi 6/6E/7 access point aggregation requiring multi-gigabit backhaul and high-wattage PoE++
• Compact enterprise wiring closets where port count is limited but per-port bandwidth must exceed 1G
• Distributed campus environments using VCStack LD to logically connect remote closets over fiber
• Wireless-first network refreshes eliminating the need for cabling upgrades (Cat5e/Cat6 compatible at 5G)
• Edge deployments requiring dual PSU redundancy in a 1U footprint

Technical Specifications

Frequently Asked Questions

Q: What does the -B15 suffix mean on the AT-X530-10GHXM-B15?

The -B15 suffix designates a 5-year Allied Telesis hardware warranty bundle. The base model AT-X530-10GHXM carries standard warranty terms. If you require extended coverage for a long-term deployment, the -B15 is the correct SKU.

Q: How many total ports does the AT-X530-10GHXM-B15 have?

This switch has 8 copper access ports (multi-gig NBASE-T PoE++) and 2 SFP+ 10G fiber uplinks, for 10 total data ports. It is intentionally compact — the value is in per-port multi-gig bandwidth and PoE++ wattage, not raw port count.

Q: What PoE standard do the access ports support, and what is the maximum per-port wattage?

All 8 access ports support IEEE 802.3bt PoE++ with a maximum of 90W per port. The total PoE budget is 720W, enabling full concurrent high-wattage delivery. This makes it suitable for powering Wi-Fi 6E/7 APs, PTZ cameras, and other high-draw devices.

Q: Can this switch auto-negotiate speeds below 5G for legacy devices?

Yes. Each NBASE-T port auto-negotiates to 100M, 1G, 2.5G, or 5G, so legacy 1G devices work normally alongside multi-gig APs on the same switch.

Q: Does the AT-X530-10GHXM-B15 support stacking with other x530 models?

Yes, via VCStack. Up to eight x530 Series switches can be stacked into a single logical switch. This allows you to start with 8 ports and scale up to 64 multi-gig access ports without replacing the management plane.

Q: Does this switch have redundant power supplies?

Yes. The AT-X530-10GHXM-B15 includes dual built-in power supplies — not external RPS — providing PSU redundancy in a standard 1U footprint.

Q: Where can I purchase the AT-X530-10GHXM-B15?

The AT-X530-10GHXM-B15 is available from Creation Networks at creationnetworks.net. Contact our team for current pricing, lead times, and multi-unit discount options.
