Allied Telesis AT-X530-10GHXM-10 – 8-Port Multi-Gigabit PoE++ Layer 3 Switch

Product Overview

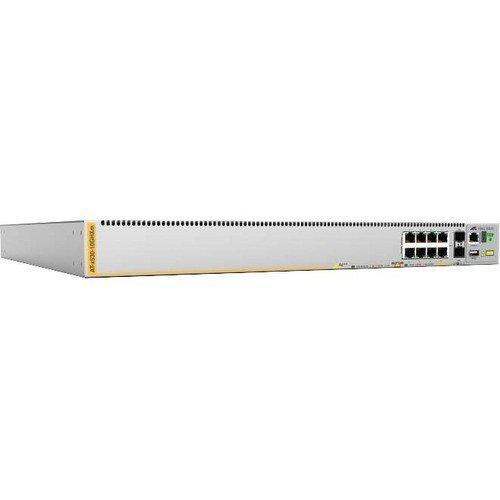

The Allied Telesis x530 multi-gigabit PoE++ Layer 3 switch 8-port (AT-X530-10GHXM-10) is a compact 1U switch delivering 8 x NBASE-T multi-rate ports (100M/1G/2.5G/5G) with IEEE 802.3bt PoE++ and a 720 W total PoE budget — up to 90 W per port. Designed for environments where high-power wireless access points, PTZ cameras, and digital signage require multi-gigabit bandwidth and maximum PoE wattage simultaneously, this switch eliminates the need for separate power injectors. Two 10G SFP+ uplinks connect to distribution or core switching with fiber or DAC cables. Available from Creation Networks, the AT-X530-10GHXM-10 is the purpose-built solution for Wi-Fi 6/6E deployments and high-density PoE++ edge applications.

Product Description

The AT-X530-10GHXM-10 occupies a specific niche in the Allied Telesis x530 series: a compact 8-port multi-gigabit switch optimized for maximum per-port PoE++ power delivery rather than raw port count. Each of the 8 RJ-45 ports auto-negotiates at 100 Mbps, 1G, 2.5G, or 5G (NBASE-T, IEEE 802.3bz), allowing the switch to connect to next-generation Wi-Fi 6 and Wi-Fi 6E access points that require 2.5G or 5G backhaul without replacing existing Cat5e or Cat6 cabling infrastructure. IEEE 802.3bt PoE++ delivers up to 90 W per port, sufficient to power high-PTZ cameras, digital signage, smart lighting controllers, and dual-radio 802.11ax access points from a single Ethernet cable with no external power injector. The total PoE budget of 720 W across 8 ports means all ports can simultaneously support devices drawing up to 90 W. Dual built-in power supplies ensure that both switching and PoE delivery continue uninterrupted if one PSU fails — a critical reliability requirement when PoE++ ports are powering always-on surveillance or access control infrastructure. The switch is fully manageable as a Layer 3 device under AlliedWare Plus, supporting static and dynamic routing (OSPFv2, BGP with premium license), advanced QoS, VLAN management, and tri-authentication (802.1X, MAC-based, web-based) for granular access control. VCStack allows up to eight x530 units to be combined into a single logical switch, enabling the AT-X530-10GHXM-10 to be integrated into a larger multi-gigabit access stack rather than managed as a standalone device. Allied Telesis AMF (Autonomous Management Framework) provides centralized management, automated configuration backup, and zero-touch node recovery across the entire network, reducing operational overhead in distributed deployments. EPSRing and G.8032 ERPS deliver sub-50 ms ring failover, ensuring that uplink failures do not interrupt PoE-powered endpoint operation. For network architects deploying Wi-Fi 6/6E or upgrading surveillance infrastructure to higher-power PoE++, the AT-X530-10GHXM-10 delivers the per-port power density and multi-gigabit throughput that single-speed GbE switches cannot provide. Contact Creation Networks to discuss deployment scenarios and obtain a quote.

Key Features

• 8 x NBASE-T multi-rate ports (100M/1G/2.5G/5G) — Auto-negotiation across all four speeds enables seamless integration with Wi-Fi 6/6E APs and legacy GbE devices on existing Cat5e/Cat6 cabling.
• IEEE 802.3bt PoE++ up to 90 W per port — Powers the most demanding PoE++ endpoints including high-PTZ cameras, dual-radio APs, and smart lighting — no external injector required.
• 720 W total PoE budget — All 8 ports can simultaneously supply full 90 W, supporting maximum-power deployments without port-level power throttling.
• Dual built-in power supplies — Load-sharing redundant PSUs maintain PoE delivery and switching if one supply fails, eliminating a single point of failure.
• 2 x 10G SFP+ uplinks — High-bandwidth uplinks to distribution or core switches via fiber or DAC, preventing upstream bandwidth bottlenecks from multi-gigabit access ports.
• VCStack up to 8 units — Stack multiple x530 switches (including mixed stacking with x530L) for a unified logical switch managing dozens of multi-gigabit PoE++ ports.
• AlliedWare Plus Layer 3 OS — Full enterprise routing and security feature set, consistent CLI, and IPv6 readiness across the entire x530 platform.
• AMF network automation — Autonomous Management Framework enables zero-touch provisioning, centralized config management, and automatic node recovery.
• EPSRing and G.8032 ERPS — Sub-50 ms ring failover protects network continuity for PoE-powered endpoints in ring-topology campus networks.
• OpenFlow SDN support — Enables software-defined networking integration for environments running SDN controllers alongside traditional routing.

Typical Applications

• Wi-Fi 6 and Wi-Fi 6E access point deployments requiring 2.5G or 5G backhaul and PoE++ power from existing structured cabling
• High-power PTZ IP surveillance camera installations where 60–90 W PoE++ eliminates external injectors
• Digital signage and smart building controllers requiring high-wattage PoE and multi-gigabit throughput
• Compact wiring closets where a small number of high-power multi-gigabit ports are needed without a large 48-port switch
• VCStack deployments combining multiple AT-X530-10GHXM-10 units into a unified logical switch for multi-gigabit PoE++ density

Technical Specifications

Frequently Asked Questions

Q: What is the maximum PoE wattage per port on the AT-X530-10GHXM-10?

Each of the 8 RJ-45 ports supports IEEE 802.3bt PoE++ at up to 90 W per port. The total PoE budget is 720 W, sufficient to power all 8 ports at full 90 W simultaneously.

Q: Does the AT-X530-10GHXM-10 support Wi-Fi 6 access points that need 2.5G connectivity?

Yes. All 8 RJ-45 ports are multi-rate NBASE-T, auto-negotiating at 100 Mbps, 1G, 2.5G, or 5G. Wi-Fi 6 and Wi-Fi 6E APs that include a 2.5G or 5G Ethernet port will connect and negotiate at the appropriate speed over existing Cat5e or Cat6 cabling.

Q: How does PoE++ at 90 W compare to standard PoE+ at 30 W?

IEEE 802.3bt PoE++ delivers up to 90 W (Type 4) or 60 W (Type 3) per port, compared to 30 W for IEEE 802.3at PoE+. This higher wattage powers devices such as high-PTZ cameras, dual-radio 802.11ax APs, smart lighting controllers, and thin-client terminals that exceed the 30 W PoE+ limit.

Q: Can the AT-X530-10GHXM-10 stack with the x530L series?

Yes, with the AT-FL-x53L-MSTK mixed stacking license installed on the x530L units, x530 and x530L switches can be combined into a single VCStack. Contact Creation Networks for mixed stacking configuration guidance.

Q: What happens if one of the two built-in power supplies fails?

The dual power supplies operate in a load-sharing configuration. On failure of one PSU, the remaining supply automatically assumes the full load, maintaining both switch operation and PoE delivery to all connected devices without any interruption.

Q: Does this switch require a separate AMF master or can it act as one?

The AT-X530-10GHXM-10 running AlliedWare Plus can be deployed as an AMF member switch, as an AMF master (with the appropriate AMF Plus master license), or as a standalone managed switch. AMF Plus master licensing is available per-stack from Allied Telesis.

Q: Where can I purchase the AT-X530-10GHXM-10?

The AT-X530-10GHXM-10 is available from Creation Networks at creationnetworks.net. Contact us for pricing, technical pre-sales support, and compatibility guidance.
