Allied Telesis AT-X320-10GH L3 GIGABIT SWITCH 8PORT 10/100/1000T POE++ 2PORT SFP

Product Overview

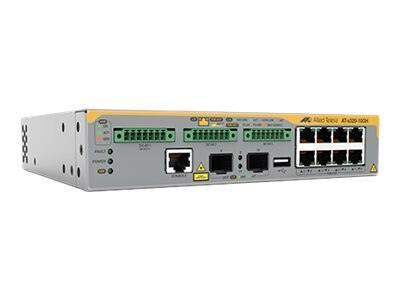

The Allied Telesis AT-X320-10GH is a compact Layer 3 managed switch delivering 8 x 10/100/1000T PoE++ access ports and 2 x 100/1000X SFP uplinks in a 1U rack-mountable or desktop-deployable chassis. As the primary Allied Telesis x320 8-port PoE++ Layer 3 switch, it supports up to 90W per port under IEEE 802.3bt, making it a strong fit for high-power wireless access points, PTZ cameras, and smart building IoT devices. Running AlliedWare Plus, the x320-10GH provides enterprise routing, AMF management, and tri-authentication in a fanless, silent enclosure. Unlike the x530 series — which targets larger aggregation deployments — the x320 is positioned as an access-tier switch optimized for smart building and work-area edge connectivity with a simpler feature footprint and lower power consumption.

Product Description

The x320-10GH supports the full PoE power spectrum: 15.4W (802.3af), 30W (802.3at PoE+), and 60W or 90W (802.3bt PoE++) per port, with a total PoE power budget expandable via up to three external power supply units to reach 720W aggregate. Continuous PoE capability allows the switch to restart for software upgrades without interrupting power delivery to connected PoE devices — a critical requirement for always-on security cameras, IP phones, and lighting controllers. The fanless design eliminates moving parts and enables silent operation, making the x320-10GH suitable for open-plan offices, classrooms, and ceiling-mount locations. Allied Telesis Autonomous Management Framework (AMF) automates configuration backup, zero-touch provisioning, and network-wide management from a single control point; AMF Guestnode extends visibility to third-party IP devices on the network. EPSRing and G.8032 Ethernet Ring Protection provide sub-50ms failover for resilient ring topologies. Security is enforced through 802.1X port-based authentication, DHCP snooping, STP root guard, BPDU protection, and dynamic VLAN assignment. The x320-10GH differs from the AT-X320-10GH-90 in that it is the standard commercial variant without TAA compliance designation; government procurement requiring TAA should use the -90 SKU. Physical dimensions are 1.7" H x 8.3" W x 7.1" D, weight 3.53 lb, 1U rack-mountable with included brackets.

Key Features

• 8 x 10/100/1000T PoE++ Ports (802.3bt) — Up to 90W per port supports Wi-Fi 6 APs, PTZ cameras, thin clients, and other high-power edge devices.
• 2 x 100/1000X SFP Uplinks — Fiber or copper SFP uplinks for flexible distribution-layer connectivity.
• Up to 720W Total PoE Budget — Triple external PSU support provides power resilience and full port-load capacity.
• Continuous PoE — Maintains power to connected devices during switch software restarts, eliminating device downtime during maintenance.
• Fanless Design — Silent operation; ideal for work areas, classrooms, and ceiling spaces without dedicated IT closets.
• AlliedWare Plus & AMF — Enterprise-class OS with automated management framework for zero-touch provisioning and centralized network control.
• Layer 3 Routing — Static routes and dynamic routing protocols for scalable inter-VLAN routing at the access tier.
• DIN Rail and Rack-Mount Options — Flexible deployment in standard 19" racks, wall spaces, or above-ceiling mounting.

Typical Applications

• Smart building access layer: powering and connecting Wi-Fi 6 APs, IP cameras, VoIP phones, and access control readers
• Work area or open-plan office switch deployments requiring silent fanless operation
• Retail and hospitality edge switching with PoE for digital signage and POS devices
• Education campus access tier where AMF zero-touch provisioning reduces on-site IT requirements
• Small to medium enterprise distribution switch for converged voice, data, and security networks

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the AT-X320-10GH and the AT-X320-10GH-90?

The AT-X320-10GH-90 is the TAA (Trade Agreements Act) compliant variant of the same hardware, required for US federal government procurement. The AT-X320-10GH is the standard commercial version without TAA designation.

Q: How does the x320-10GH differ from the x530 series?

The x320 series is optimized for smart building access-tier deployments with a focus on PoE flexibility and silent fanless operation. The x530 series targets larger aggregation and distribution-layer roles with higher port densities and 10G uplink options. The x320 has a smaller feature set and is designed for cost-effective edge connectivity.

Q: Can all 8 ports deliver 90W simultaneously?

Total PoE power delivery depends on the external PSU configuration. With the maximum triple PSU configuration providing up to 720W, it is possible to deliver high power to multiple ports simultaneously. Individual port maximums are 90W under 802.3bt.

Q: What does Continuous PoE mean?

Continuous PoE maintains power delivery to connected PoE devices even when the switch itself is restarting for a software upgrade. Security cameras, IP phones, and access control systems remain powered and operational during switch maintenance windows.

Q: Does the x320-10GH support stacking?

The x320 series supports Allied Telesis AMF (Autonomous Management Framework) for virtual chassis management across multiple switches, but does not use traditional hardware stacking cables. AMF provides centralized configuration and management across the network.

Q: Is the x320-10GH suitable for outdoor or industrial environments?

No. The x320-10GH is rated for standard commercial indoor environments. For industrial or outdoor deployments requiring extended temperature ranges, consider the Allied Telesis IE340 series.
