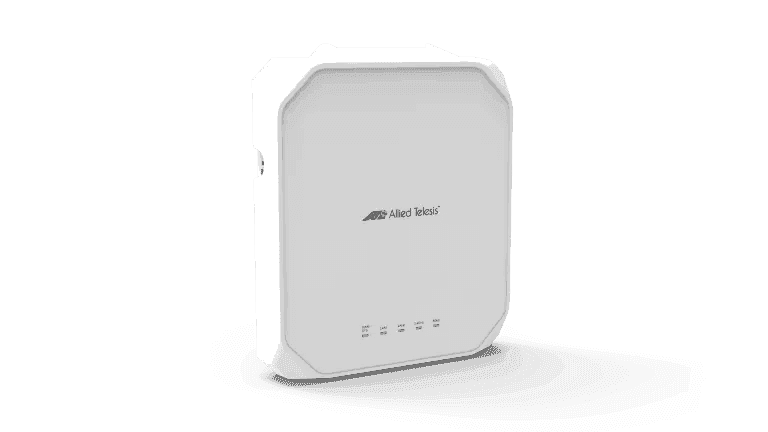

Allied Telesis AT-TQM6602 GEN2-01 – Wi-Fi 6 Enterprise Access Point

Product Overview

The Allied Telesis AT-TQM6602 GEN2-01 is an Allied Telesis TQM6602 Wi-Fi 6 enterprise access point delivering dual-band 802.11ax performance in a ceiling- or wall-mountable form factor designed for small to medium enterprise environments. With 4 spatial streams dedicated to the 5 GHz band and a combined wireless throughput of 3.55 Gbps, this 802.11ax Wi-Fi 6 access point for high-density enterprise wireless handles the demanding client loads of modern open offices, classrooms, and healthcare facilities. The TQM6602 GEN2 is AC-powered and fully supported by Allied Telesis AMF (Autonomous Management Framework) for zero-touch provisioning and centralized wireless LAN management without a dedicated controller appliance.

Product Description

The TQM6602 GEN2 is part of Allied Telesis’s TQm6000 Series, a lineup of Wi-Fi 6 (802.11ax) access points engineered for cost-effective, scalable wireless coverage. The AP features two radios: a 2.4 GHz radio and a 5 GHz radio with 4 spatial streams (4SS), delivering up to 3.55 Gbps aggregate wireless throughput via MIMO technology. Wi-Fi 6 OFDMA (Orthogonal Frequency Division Multiple Access) sub-divides channels to serve multiple clients simultaneously, significantly improving per-client throughput in high-density deployments compared to prior Wi-Fi generations. Two network ports — supporting Gigabit, 2.5 Gigabit, and 5 Gigabit Ethernet — provide flexible wired uplink options, and the unit supports IEEE 802.3at (PoE+) and 802.3bt (PoE++) as a powered device, accepting power directly from a compliant PoE switch. Internal antennas ensure a clean, unobtrusive appearance for ceiling and wall mounting in public-facing spaces. The security suite is comprehensive: WPA3-Personal, WPA3-Enterprise, WPA2-AES, and AES-CCMP are all supported, meeting modern enterprise wireless security standards. SNMPv3, RADIUS, HTTPS, and DHCP management protocols enable full integration with existing network management and authentication infrastructure. For teams running Allied Telesis AMF networks, the TQM6602 GEN2 participates in AMF managed Wi-Fi 6 access point zero-touch deployment, with automatic firmware updates, configuration push, and guest network provisioning without individual AP login. The 19 W power consumption is low enough to be powered by standard 802.3at PoE+ switches. This is a well-specified, deployable Allied Telesis TQM6602 Wi-Fi 6 enterprise access point at a competitive price point for mid-market enterprise wireless refresh projects.

Key Features

• Wi-Fi 6 (802.11ax) — Latest wireless standard with OFDMA for improved multi-client efficiency and throughput.
• 4 Spatial Streams (5 GHz) — High-capacity 5 GHz radio for bandwidth-intensive applications and dense client environments.
• 3.55 Gbps Aggregate Throughput — Combined dual-band wireless capacity for demanding enterprise workloads.
• Dual-Band 2.4 GHz and 5 GHz — Supports legacy and modern clients on separate bands simultaneously.
• PoE+ / PoE++ Powered (802.3at / 802.3bt) — Receives power directly from compatible PoE switches; no local power adapter required.
• Multi-Gigabit Ethernet Uplink — Two RJ-45 ports supporting 1G, 2.5G, and 5G Ethernet for future-proof wired backhaul.
• WPA3 Security — Supports WPA3-Personal, WPA3-Enterprise, and WPA2-AES for robust wireless security.
• Internal Antennas — Clean installation profile for ceiling, wall, and desktop placement.
• AMF Compatible — Zero-touch provisioning and centralized management via Allied Telesis Autonomous Management Framework.
• 19 W Power Consumption — Efficient operation compatible with standard IEEE 802.3at PoE+ infrastructure.

Typical Applications

• High-density wireless coverage in open-plan offices and corporate campuses
• Education environments: lecture halls, libraries, and student collaboration spaces
• Healthcare facilities requiring secure, segmented WLAN for clinical and guest networks
• Retail and hospitality venues with high simultaneous client counts
• Small to medium enterprise network refresh from Wi-Fi 5 to Wi-Fi 6
• AMF-managed multi-site enterprise deployments requiring zero-touch AP provisioning

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the TQM6602 and earlier TQm6000 models?

The GEN2 designation indicates second-generation hardware with refined performance and updated internal components. The TQM6602 GEN2 specifically features a 4-spatial-stream 5 GHz radio and multi-gigabit uplink ports not present on earlier variants.

Q: Does the TQM6602 GEN2 require a wireless LAN controller?

No. The AP operates in standalone mode and also integrates with Allied Telesis AMF (Autonomous Management Framework) for controller-less centralized management, making it suitable for deployments without a dedicated WLAN controller appliance.

Q: What PoE standard does the access point require?

The TQM6602 GEN2-01 is a PoE PD device consuming 19 W, compatible with IEEE 802.3at (PoE+) and 802.3bt (PoE++) switches. It also supports AC power input directly.

Q: What wireless security protocols are supported?

The AP supports WPA3-Personal, WPA3-Enterprise, WPA2-AES, WPA2-PSK, WPA-AES, AES-CCMP, WPA-TKIP, and legacy WEP. WPA3 is recommended for maximum security on modern deployments.

Q: How many clients can the TQM6602 GEN2 serve simultaneously?

Wi-Fi 6 OFDMA enables the AP to serve multiple clients in the same channel simultaneously. Practical concurrent client capacity depends on traffic profile; the AP is suitable for medium to high-density environments.

Q: Is the TQM6602 GEN2-01 certified for use in the United States?

Yes. The unit holds FCC (Part 15 Subparts C and E), IC, CE, and Wi-Fi Alliance certifications, among others listed in its compliance documentation.

Q: Where can I purchase the AT-TQM6602 GEN2-01?

The AT-TQM6602 GEN2-01 is available at Creation Networks for $1,100.
