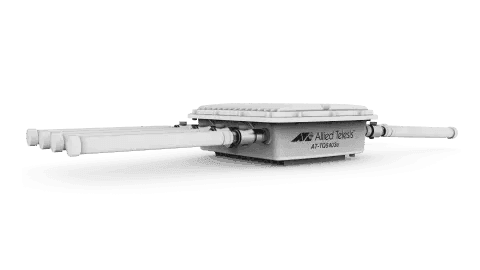

Allied Telesis AT-TQ5403E-01 OUTDOOR IEEE WAVE2 WRLS AP W/ TRI-BAND RADIOS & EMBEDDED ANT

Product Overview

The Allied Telesis AT-TQ5403E-01 is an enterprise-grade outdoor Wi-Fi 6 (IEEE 802.11ax) access point featuring three radios, embedded antennas, and a weather-resistant enclosure engineered for permanent outdoor installation. This Allied Telesis TQ5403E outdoor Wi-Fi 6 access point tri-band design delivers simultaneous coverage across 2.4GHz and dual 5GHz bands, serving high-density outdoor venues, campus environments, stadiums, transportation hubs, and industrial sites where indoor access points cannot operate. Network engineers and wireless LAN architects requiring IP-rated outdoor APs with Allied Telesis AWC controller integration and IEEE 802.11ax efficiency will find the TQ5403E-01 a purpose-built solution for demanding outdoor deployments.

Product Description

The AT-TQ5403E-01 is the outdoor, environmentally hardened variant of the Allied Telesis TQ5403 family — the E suffix designates the Extended/Environmental (outdoor) model with a weather-resistant enclosure rated for operation across an extended temperature range of -40°C to +65°C. The indoor TQ5403 is designed for controlled interior environments, while the TQ5403E is built for permanent exterior mounting on walls, poles, or outdoor structures. Three integrated radios provide simultaneous tri-band operation: one 2.4GHz radio (802.11ax/b/g/n) and two 5GHz radios (802.11ax/a/n/ac), enabling Channel Blanket hybrid operation that supports both multi-channel and single-channel configurations on the same AP. IEEE 802.11ax (Wi-Fi 6) technology delivers improved spectral efficiency, OFDMA, MU-MIMO, and BSS Coloring to handle higher client densities with lower latency compared to 802.11ac Wave 2. Band Steering automatically guides capable clients to the optimal radio for the best user experience. The AP is PoE-powered (PoE PD, 16W consumption) via its single Gigabit Ethernet RJ-45 port, eliminating the need for local AC power at the mounting location. Allied Telesis AWC (Autonomous Wave Control) integration provides automatic wireless optimization, channel planning, and AP management across the wireless infrastructure. Multiple SSIDs and Virtual APs support guest network segmentation, while Captive Portal enables straightforward user onboarding. Fast Roaming support ensures seamless client transitions between access points in high-mobility environments. Wall-mountable and pole-mountable installation options with included hardware. Dimensions: 10.1" W x 8.9" D x 3.5" H; weight: 8.82 lb. Available from Creation Networks with pre-sales wireless design support.

Key Features

• Outdoor Wi-Fi 6 (IEEE 802.11ax) — OFDMA, MU-MIMO, and BSS Coloring for higher client density and improved efficiency over 802.11ac.
• Tri-Band Tri-Radio Design — One 2.4GHz + two 5GHz radios for simultaneous multi-band coverage and Channel Blanket hybrid operation.
• Weather-Resistant Enclosure — Rated for -40°C to +65°C operating range; designed for permanent outdoor mounting on walls or poles.
• Embedded Antennas — Integrated antenna array eliminates external cabling complexity while maintaining wide coverage patterns.
• PoE Powered — Draws 16W via IEEE 802.3af/at PoE from a connected switch; no local AC outlet required at the mounting point.
• AWC Support — Allied Telesis Autonomous Wave Control for automatic wireless optimization, channel management, and AP coordination.
• Multiple SSIDs and Virtual APs — Supports guest segmentation, VLAN mapping, and Captive Portal for flexible user management.
• Fast Roaming — Enables seamless client transitions in high-mobility outdoor environments.

Typical Applications

• Outdoor campus Wi-Fi coverage for universities, hospitals, and corporate campuses
• Stadium and venue Wi-Fi supporting high-density concurrent users outdoors
• Transportation hubs: airports, rail stations, bus terminals requiring outdoor wireless
• Industrial and manufacturing sites with harsh environmental conditions
• Municipal outdoor Wi-Fi networks and smart city deployments
• Parks, plazas, and public spaces requiring all-weather wireless connectivity

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the TQ5403E-01 and the TQ5403-01 (indoor)?

The TQ5403E is the outdoor model. The E suffix designates an Environmental/Extended enclosure rated for -40°C to +65°C outdoor operation with a weather-resistant housing suitable for wall and pole mounting. The TQ5403 (without E) is designed for indoor, temperature-controlled environments. Do not install the indoor TQ5403 in exposed outdoor locations.

Q: Does the TQ5403E-01 support Wi-Fi 6 (802.11ax)?

Yes. The TQ5403E-01 supports IEEE 802.11ax (Wi-Fi 6), delivering OFDMA, MU-MIMO, Target Wake Time, and BSS Coloring for improved performance in high-density outdoor environments compared to 802.11ac Wave 2.

Q: What PoE standard does the TQ5403E-01 require?

The AP operates as a PoE Powered Device (PD) consuming 16W. It is compatible with IEEE 802.3af and 802.3at PoE-capable switches and injectors. Ensure the powering switch port can supply at least 16W.

Q: Can the TQ5403E be managed by the Allied Telesis AWC controller?

Yes. The TQ5403E integrates with Allied Telesis Autonomous Wave Control (AWC) for centralized wireless management, automatic channel optimization, and AP coordination across larger wireless deployments.

Q: How many SSIDs does the TQ5403E-01 support?

The TQ5403E supports multiple SSIDs via Virtual APs, enabling separate network segments (e.g., corporate and guest networks) mapped to different VLANs from a single access point.

Q: Where can I purchase the AT-TQ5403E-01?

Available from Creation Networks, an authorized Allied Telesis reseller with wireless LAN design expertise and post-sales technical support.
