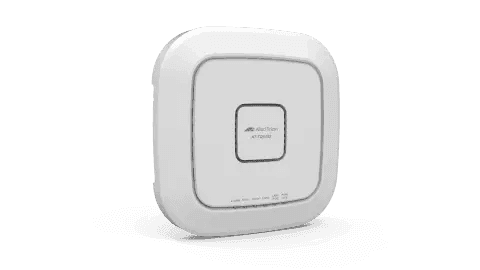

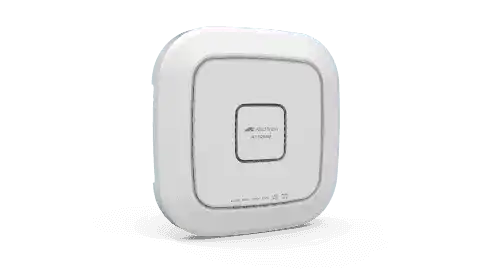

Allied Telesis AT-TQ5403-01 WAVE2 WRLS ACCESS POINT W TRI-B RADIOS EMBEDDED ANTENNA

Product Overview

The Allied Telesis TQ5403-01 is an indoor Wi-Fi 6 (802.11ax) tri-band access point designed for enterprise and mid-market wireless deployments that require high client density and centralized management. As the indoor model in the TQ5403 family — distinct from the TQ5403E, which is engineered for outdoor and harsh-environment use — the TQ5403-01 delivers tri-band coverage (one 2.4 GHz + two 5 GHz radios) with embedded antennas for clean ceiling or wall installation. IT managers replacing aging 802.11ac Wave 2 deployments or the previous-generation TQM6602 will benefit from significantly improved airtime efficiency, MU-MIMO spatial reuse, and native integration with Allied Telesis AMF (Autonomous Management Framework) and Autonomous Wave Control (AWC) wireless optimization.

Product Description

The Allied Telesis TQ5403-01 implements IEEE 802.11ax (Wi-Fi 6) across three concurrent radios: a dedicated 2.4 GHz radio for legacy device compatibility and two independent 5 GHz radios that dramatically expand available spectrum, reduce co-channel interference, and support higher aggregate throughput. MU-MIMO and OFDMA technologies allow the TQ5403-01 to serve multiple clients simultaneously across spatial streams, a critical capability for high-density environments such as conference rooms, lecture halls, and open-plan offices. Two 10/100/1000T Ethernet ports are included; these can be bonded via static link aggregation to double wired backhaul bandwidth from 1G to 2G, ensuring the uplink does not become the bottleneck in high-throughput scenarios. Power delivery is via 802.3at PoE+ (or optional AC adapter), simplifying cabling. Band steering directs capable devices toward the less-congested 5 GHz bands automatically. Virtual AP (VAP) support with per-SSID VLAN mapping enables logical network segmentation — separating corporate, guest, and IoT traffic — without additional hardware. Dynamic VLAN assignment via RADIUS further automates user provisioning at scale. For small deployments, the TQ5403-01 operates in standalone mode with an intuitive web GUI. For large rollouts, it integrates with Allied Telesis AWC via Vista Manager EX, supporting automated RF optimization and up to 3,000 managed APs from a single pane of glass. This is a direct successor consideration for organizations currently running TQM6602 access points seeking a Wi-Fi 6 upgrade path.

Key Features

• IEEE 802.11ax (Wi-Fi 6) Tri-Band — One 2.4 GHz + two 5 GHz radios provide three concurrent wireless segments, reducing contention in high-density environments.
• MU-MIMO and OFDMA — Simultaneous multi-user communication with improved spectral efficiency versus 802.11ac Wave 2.
• Dual 1G Ethernet Ports with Link Aggregation — Optional static LAG doubles wired backhaul to 2 Gbps; both ports are 802.3at PoE PD capable.
• Embedded Antennas — Low-profile design for ceiling or wall mount without external antenna protrusions.
• AWC Integration — Allied Telesis Autonomous Wave Control dynamically adjusts channels and power for zero-touch RF optimization.
• AMF-Compatible — Integrates with Allied Telesis AMF for automated provisioning, backup, and firmware management across the network.
• Virtual AP (VAP) and VLAN Support — Per-SSID VLAN assignment; up to 16 VAPs per radio for multi-tenant or role-based segmentation.
• Band Steering and Airtime Fairness — Automatically balances client load across bands; prevents any single client from monopolizing channel time.

Typical Applications

• Enterprise campus wireless upgrades replacing 802.11ac Wave 2 or legacy TQM6602 deployments
• High-density indoor environments: conference rooms, open-plan offices, lecture halls, libraries
• SMB networks requiring standalone operation without a wireless controller
• Multi-tenant environments requiring per-SSID VLAN segmentation and RADIUS-based dynamic VLAN assignment
• Retail, hospitality, and healthcare facilities requiring reliable indoor Wi-Fi 6 coverage
• Organizations standardizing on Allied Telesis AMF for end-to-end automated network management

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the TQ5403-01 (indoor) and the TQ5403E (outdoor)?

The TQ5403-01 is designed exclusively for indoor installations — offices, classrooms, and similar controlled environments. The TQ5403E is an outdoor/ruggedized variant built to withstand weather, UV exposure, and wider temperature extremes. Do not install the TQ5403-01 in exposed outdoor locations.

Q: How does the TQ5403-01 compare to the previous TQM6602?

The TQ5403-01 implements IEEE 802.11ax (Wi-Fi 6), offering higher spectral efficiency, OFDMA, improved MU-MIMO, and better performance in high-density environments compared to the legacy TQM6602 (802.11ac). It also adds a second 5 GHz radio for tri-band operation.

Q: Does the TQ5403-01 require a wireless controller?

No. It can operate in fully standalone mode using its built-in web interface — suitable for small deployments. For larger installations requiring centralized RF optimization, it integrates with Allied Telesis AWC via Vista Manager EX.

Q: What is Allied Telesis AMF and does the TQ5403-01 support it?

AMF (Autonomous Management Framework) is Allied Telesis' network automation platform for zero-touch provisioning, automated backup, and firmware management. The TQ5403-01 supports AMF, enabling it to be managed as part of a fully automated Allied Telesis campus network.

Q: Can the TQ5403-01 support multiple SSIDs for different user groups?

Yes. Virtual AP (VAP) functionality allows multiple SSIDs to be defined per radio, each mapped to a separate VLAN. This is commonly used to segment corporate, guest, and IoT wireless traffic on a single physical AP.

Q: What PoE standard does the TQ5403-01 require?

The TQ5403-01 requires 802.3at PoE+ (30W class). Standard 802.3af PoE (15.4W) is not sufficient for tri-band operation. Verify that the upstream switch or PoE injector provides 802.3at.

Q: Where can I purchase the AT-TQ5403-01?

The AT-TQ5403-01 is available through Creation Networks, an authorized Allied Telesis reseller providing competitive pricing and pre-sales engineering support.
