Allied Telesis AT-SPSX/I-90 – TAA Industrial-Temp 1000BASE-SX SFP
Overview

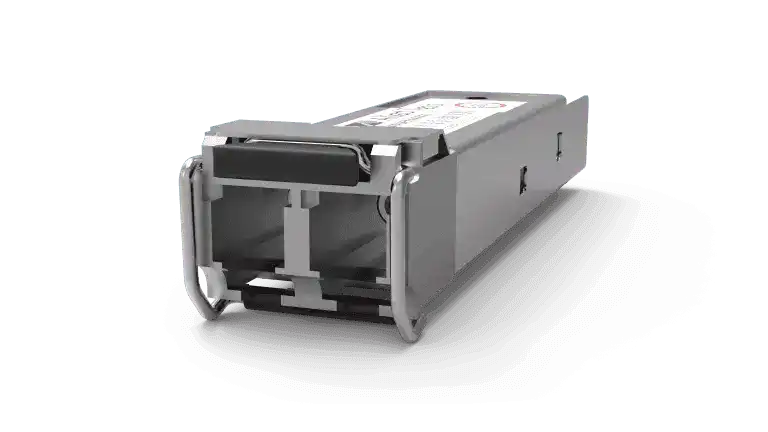

The Allied Telesis AT-SPSX/I-90 is a TAA-compliant 1000BASE-SX SFP transceiver rated for industrial temperature operation from -40°C to +85°C, making it suitable for deployments in harsh or uncontrolled environments. It uses an LC duplex connector and operates at 850nm over multimode fiber, supporting link distances of 220 meters over 62.5µm fiber and 550 meters over 50µm fiber. The -90 designation confirms compliance with the Trade Agreements Act for federal and government procurement. Hot-swap capability allows installation and replacement without disrupting host switch operation.
Description
The AT-SPSX/I-90 addresses GbE multimode fiber requirements in environments where commercial-grade optics cannot operate reliably. Industrial facilities, outdoor enclosures, transportation infrastructure, and utility substations frequently expose network equipment to temperature extremes that exceed commercial SFP ratings. This transceiver's -40°C to +85°C operating range covers those conditions without requiring additional thermal management. The 850nm wavelength and LC duplex connector align with standard 1000BASE-SX infrastructure, allowing the /I-90 to slot into existing multimode fiber runs without re-cabling. It supports 220m over 62.5/125µm OM1 fiber and 550m over 50/125µm OM2 fiber, covering typical intra-building and inter-building distances in industrial campus environments. TAA compliance is indicated by the -90 suffix, satisfying procurement requirements under GSA schedules and federal contracts. Hot-swappable design minimizes downtime when replacing a transceiver in a live network. For organizations managing both commercial and industrial sites, the AT-SPSX/I-90 provides a single, federally compliant optic that covers the more demanding thermal envelope. Available from Creation Networks with competitive lead times on federal and industrial orders.
Key Features
- Industrial Temperature Range (-40°C to +85°C): Operates reliably in harsh environments including outdoor enclosures, factories, and transportation infrastructure where commercial-grade optics fail.
- TAA Compliant (-90): Satisfies Trade Agreements Act requirements for U.S. federal and government procurement programs.
- 1000BASE-SX, 850nm: Standard GbE multimode wavelength compatible with existing 62.5µm and 50µm fiber plant, with 220m and 550m reach respectively.
- LC Duplex Connector: Industry-standard connector for straightforward integration with multimode patch panels and fiber runs.
- Hot-Swappable: Replace or install without powering down the host switch, reducing planned maintenance windows.
- Standard SFP Form Factor: Fits any Allied Telesis or MSA-compliant SFP slot, providing broad equipment compatibility.
Technical Specifications
| Specification | Value |
|---|---|
| Standard | 1000BASE-SX (IEEE 802.3z) |
| Connector | LC Duplex |
| Fiber Type | Multimode (MMF) |
| Wavelength | 850nm |
| Max Distance (62.5µm OM1) | 220m |
| Max Distance (50µm OM2) | 550m |
| Form Factor | SFP |
| Hot-Swappable | Yes |
| TAA Compliant | Yes (-90 designation) |
| Operating Temperature | -40°C to +85°C (Industrial) |
| Data Rate | 1.25 Gbps |
