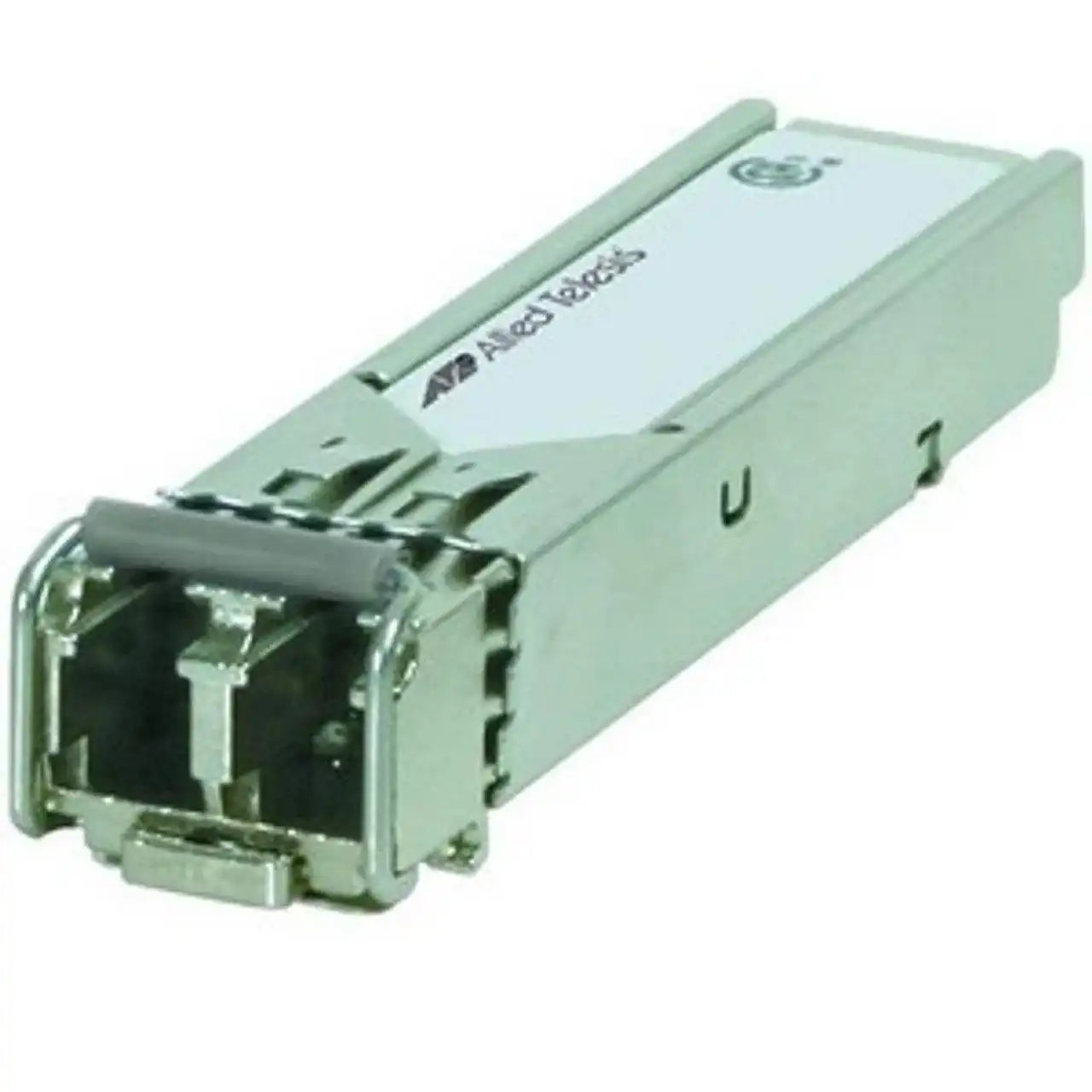

Allied Telesis AT-SPFXBD-LC-15 – 100BASE-FX BiDi SFP Transceiver

Overview

The Allied Telesis AT-SPFXBD-LC-15 is a 100BASE-FX bidirectional (BiDi) SFP transceiver designed for Fast Ethernet deployments over a single strand of single-mode fiber. It operates at 1310 nm for transmit and 1550 nm for receive, enabling full-duplex communication on one fiber rather than two. With a reach of up to 5 km, it suits access network aggregation and campus distribution links where fiber strand conservation is a priority. The transceiver is hot-swappable and conforms to the SFP MSA standard, ensuring broad compatibility with Allied Telesis and third-party SFP-capable equipment.

Description

Single-fiber BiDi technology is particularly valuable in environments where fiber conduit fill is constrained or where additional fiber runs are cost-prohibitive. The AT-SPFXBD-LC-15 uses wavelength-division multiplexing on a single LC-connected fiber strand, transmitting at 1310 nm and receiving at 1550 nm. This approach effectively doubles the usable capacity of an existing single-mode fiber plant without any physical recabling.

The transceiver supports 100 Mbps Fast Ethernet at distances up to 5 km, making it well suited for connecting remote closets, surveillance aggregation points, or branch office uplinks back to a central distribution switch. Hot-swap capability allows field replacement without disrupting other ports on the host device, an important operational consideration in always-on access networks.

Allied Telesis transceivers are manufactured and tested to align with the performance characteristics of Allied Telesis switching and routing platforms, reducing interoperability risk during procurement and deployment. The LC connector interface is the industry-standard choice for SFP fiber ports, simplifying patch panel integration.

For procurement support or volume pricing, contact Creation Networks.

Key Features

• Single-fiber BiDi operation: Uses one LC single-mode fiber strand for both transmit and receive, halving fiber consumption versus standard dual-fiber links.
• 5 km reach on single-mode fiber: Supports Fast Ethernet links up to 5 km, covering campus and access network distances.
• 1310 nm TX / 1550 nm RX wavelengths: Wavelength-division multiplexing on a single fiber eliminates the need for paired transceivers on each end using the same wavelengths.
• 100BASE-FX Fast Ethernet: Delivers 100 Mbps full-duplex throughput suitable for access-layer uplinks and legacy fiber infrastructure.
• Hot-swappable SFP form factor: Field-replaceable without power cycling the host device, minimizing downtime during maintenance.
• SFP MSA compliant: Compatible with any SFP cage that meets the MSA specification, providing deployment flexibility across vendors.
