Allied Telesis AT-SPFX/2-90 – TAA 100BASE-FX SFP 2km Multimode
Overview

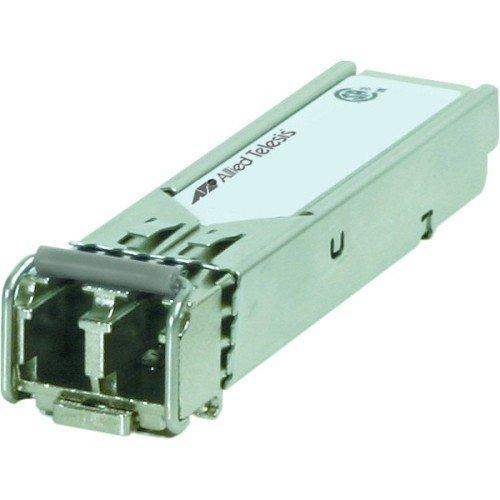

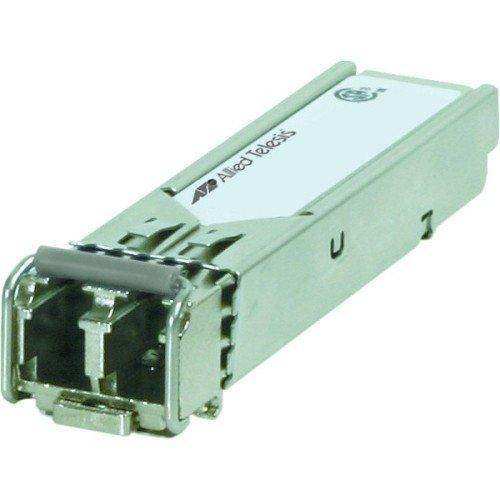

The Allied Telesis AT-SPFX/2-90 is a TAA-compliant 100BASE-FX SFP transceiver for Fast Ethernet fiber deployments over multimode fiber at distances up to 2 kilometers. It uses an LC duplex connector and operates at 1310nm, providing a compact and field-replaceable fiber uplink for switches and routers with SFP slots. The -90 suffix confirms Trade Agreements Act compliance for U.S. federal and government procurement. Hot-swap support allows the module to be installed or replaced in a live chassis without service interruption.
Description
Fast Ethernet fiber links remain in service across many enterprise and government networks, particularly on edge segments, legacy device connections, and specialized industrial equipment that does not require Gigabit speeds. The AT-SPFX/2-90 provides a standards-compliant 100Mbps fiber interface in a hot-swappable SFP form factor, enabling continued use of existing 100Mbps infrastructure without replacing end-of-life transceivers. Operating at 1310nm over multimode fiber, it reaches up to 2 kilometers, which covers most intra-campus building-to-building fiber runs. The LC duplex connector is compatible with standard multimode patch cords and panels. TAA compliance makes the AT-SPFX/2-90 appropriate for federal contracts, GSA schedule purchases, and government infrastructure modernization projects where TAA status is a procurement requirement. The SFP form factor provides compatibility with Allied Telesis and any MSA-compliant equipment that accepts standard SFP modules. Available from Creation Networks for fast delivery on federal and enterprise orders.
Key Features
- TAA Compliant (-90): Meets Trade Agreements Act requirements for federal and GSA-schedule procurement.
- 100BASE-FX, 2km Reach: Supports Fast Ethernet over multimode fiber up to 2 kilometers, covering most campus building-to-building links.
- 1310nm Wavelength, LC Duplex: Standard 100FX wavelength and connector for compatibility with existing multimode fiber plant.
- Hot-Swappable: Field-replaceable in a live chassis without powering down the host switch or router.
- Standard SFP Form Factor: Compatible with Allied Telesis and MSA-compliant third-party equipment accepting standard SFP optics.
- Commercial Temperature Range: Suited for controlled indoor environments including equipment rooms and wiring closets.
Technical Specifications
| Specification | Value |
|---|---|
| Standard | 100BASE-FX (IEEE 802.3u) |
| Connector | LC Duplex |
| Fiber Type | Multimode (MMF) |
| Wavelength | 1310nm |
| Maximum Distance | 2km |
| Data Rate | 100 Mbps |
| Form Factor | SFP |
| Hot-Swappable | Yes |
| TAA Compliant | Yes (-90 designation) |
| Temperature Range | Commercial (0°C to +70°C) |
