Allied Telesis X530L-28GTX-J90 JITC L3 STACKABLE SWITCHC24X 10/100/1000 T 4X SFP PORTS AND DUAL

Allied Telesis SKU: X530L-28GTX-J90
No reviews

Sale price$3,267.00


Allied Telesis X530L-28GTX Layer 3 Switch - 24 Ports - Manageable - Gigabit Ethernet - 10GBase-X, 10/100/1000Base-T - 3 Layer Supported - Modular - 39 W Power Consumption - Optical Fiber, Twisted Pair - Rack-mountable, Wall Mountable

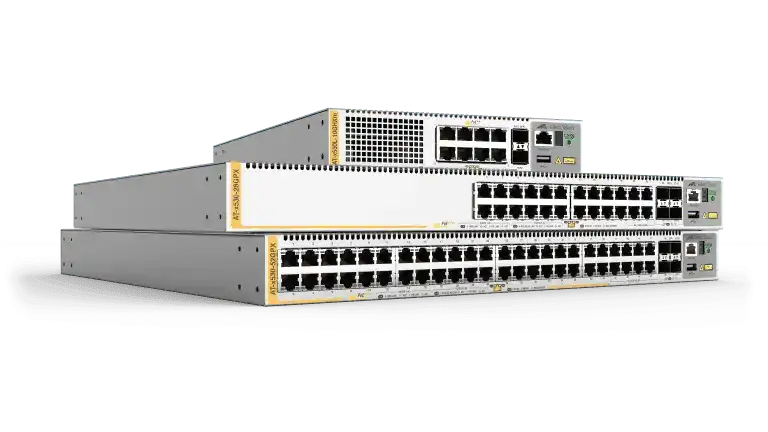

The Allied Telesis x530L Series are a high-performing and feature-rich choice for today's networks. The GHXm models feature 8 or 16 x 100M/1/2.5/5G Multi-Gigabit ports with 2 x 10 Gigabit uplinks, while 28 and 52 port models feature 24 or 48 x 10M/100M/1 Gigabit ports with 4 x 10 Gigabit uplinks. The ability to stack multiple units, enables a versatile solution for enterprise applications.

The GHXm models support PoE++ (up to 90W per port), while 28 or 52 port GPX models support PoE+ (up to 30W per port), making them perfect for connecting and powering devices at the network edge such as wireless access points, and IP surveillance cameras.

Network Management

Vista ManagerTM EX bundled with Allied Telesis Autonomous Management FrameworkTM (AMF) meets the increasing management requirements of modern networks. While AMF allows an entire network to be securely and easily managed as a single virtual device, Vista Manager EX provides an intuitive and powerful graphical tool for monitoring and managing AMF wired, Autonomous Wave Control (AWC) wireless, and third party (SNMP) devices.


The x530L Series acting as an AMF member is compatible with our AMFSecurity solution, which enables a self-defending network. The AMF-Sec controller responds immediately to any internal malware threats by instructing the x530L to isolate the affected part of the network, and quarantine the suspect device. Vista Manager EX alerts networks administrators of threats that have been dealt with.


Today's converging online services mean there is increasing demand for highly-available networks with minimal downtime. Allied Telesis Virtual Chassis Stacking (VCStackTM), in conjunction with link aggregation, provides a network with no single point of failure and application resiliency.

x530L Series switches can form a VCStack of up to eight units for enhanced resiliency and simplified management. Mixed stacking allows the x530L Series to stack with x530 Series Switches. Stacking over Long Distance (VCStackTM LD), which enables stacks to be created over long distance fiber links, makes the x530L Series the perfect choice for distributed environments too.

Allied Telesis Ethernet Protection Switched Ring (EPSRing™), and the standards-based G.8032 Ethernet Ring Protection, ensure that distributed network segments have high-speed, resilient access to online resources and applications.


The x530L Series was designed with reliability in mind, and guarantees continual delivery of essential services. The 28 and 52 port models feature dual built-in power supplies, and all models have near-hitless online stack reconfiguration, so maintenance does not affect network uptime.


A secure network environment is guaranteed. The x530L Series offers powerful control over network traffic types, secure management options, loop guard to protect against cabling mistakes, and tri-authentication for comprehensive access control.

High-speed wireless

The GHXm models provide support for both 2.5 and 5 Gigabit connectivity, allowing high-speed wireless to run at full capacity while avoiding the need to upgrade existing Cat5e/Cat6 cables.

  • Autonomous Management FrameworkTM (AMF)
  • Vista Manager EX compatible
  • AMF-Security compatible
  • VCStackTM up to 81 units locally, or over long distance
  • EPSRTM and G.8032 Ethernet Ring Protection for resilient rings
  • EPSR Master
  • Up to 740W PoE+ power (28 and 52 port models)
  • Up to 90W PoE++ per port (GHXm models)
  • Continuous PoE
  • Multi-Gigabit (100M/1G/2.5G/5G) ports (GHXm models)
Management & Protocols
Manageable Yes
Network & Communication
Layer Supported 3
I/O Expansions
Expansion Slot Type SFP+
Number of Total Expansion Slots 4
Number of SFP+ Slots 4
Media & Performance
Network Technology 10GBase-X
Ethernet Technology Gigabit Ethernet
Media Type Supported Twisted Pair
Optical Fiber
Application/Usage Network
Package Contents
  • X530L-28GTX Layer 3 Switch
  • 19 Inch Rack-Mount Brackets
Environmentally Friendly Yes
Environmental Certification China RoHS
Power Description
Power Source Power Supply
Frequency 60 Hz
50 Hz
Power Consumption 39 W
Number of Power Supplies Installed 2
Physical Characteristics
Weight (Approximate) 9.70 lb
Form Factor Rack-mountable
Wall Mountable
Height 1.7"
Width 17.4"
Depth 12.7"
General Information
Product Type Layer 3 Switch
Manufacturer Part Number ATX530L28GTXJ90
Manufacturer Website Address
Manufacturer Allied Telesis, Inc
Product Model X530L-28GTX
Product Name X530L-28GTX Layer 3 Switch
Product Series x530L
Brand Name Allied Telesis
Network (RJ-45) Yes
Modular Yes
Uplink Port Yes
Stack Port Yes
Total Number of Network Ports 24
Port/Expansion Slot Details 2 x Stack
4 x Gigabit Ethernet Expansion Slot
24 x Gigabit Ethernet Network
