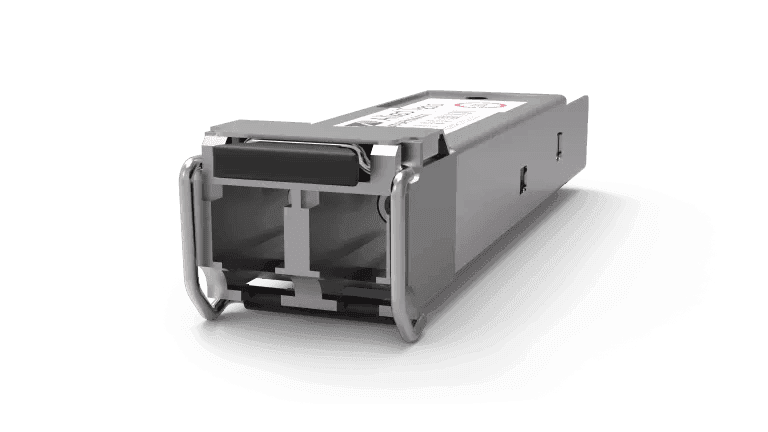

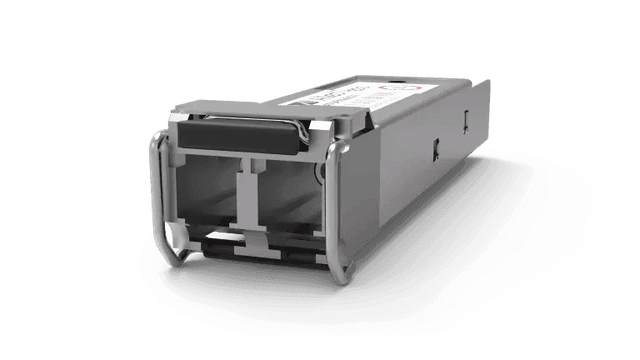

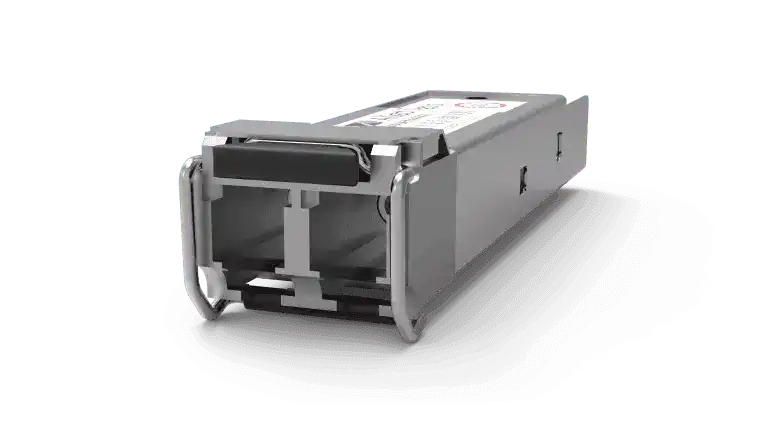

Allied Telesis AT-SP10SR/I – Industrial 10G SFP+ SR Transceiver
Overview
The Allied Telesis AT-SP10SR/I is a TAA-compliant, hot-swappable SFP+ transceiver engineered for 10 Gigabit Ethernet over multimode fiber. Operating at 850 nm with an LC duplex connector, it supports link distances up to 300 meters, making it well-suited for data center and campus backbone applications. The industrial-grade temperature rating (-40°C to +85°C) extends deployment options to harsh environments where standard commercial transceivers cannot operate reliably. TAA compliance makes this transceiver appropriate for U.S. federal government procurement under the Trade Agreements Act.
Description
The AT-SP10SR/I implements the IEEE 802.3ae 10GBase-SR standard, delivering 10 Gbps throughput over OM3 or OM4 multimode fiber at distances up to 300 meters. The 850 nm VCSEL light source is optimized for low-dispersion multimode fiber, and the LC duplex interface is the industry-standard connector found in virtually all modern fiber patch panels and structured cabling systems. Hot-swap capability allows technicians to install or replace the transceiver without powering down the host switch or router, minimizing planned maintenance windows. The extended industrial operating temperature range of -40°C to +85°C qualifies this unit for deployment in outdoor enclosures, manufacturing floors, transportation infrastructure, and military installations. Digital Optical Monitoring (DOM) is supported, enabling real-time visibility into transmit power, receive power, temperature, and bias current from a compatible host device. The module is TAA compliant, satisfying federal acquisition requirements without the need for waivers or special approvals. This transceiver is compatible with Allied Telesis switches and can also be verified for interoperability with third-party platforms that accept industry-standard SFP+ modules. Procurement teams sourcing for government contracts or defense integrators will find this SKU meets both technical and compliance requirements in a single part number.
Key Features
- 10GBase-SR compliant (IEEE 802.3ae): Delivers full 10 Gbps throughput over multimode fiber in standards-based deployments.
- 850 nm LC multimode, up to 300 m: Supports OM3/OM4 structured cabling runs typical in data center and campus environments.
- Industrial temperature range (-40°C to +85°C): Operates reliably in outdoor, industrial, and military-grade deployments where commercial-grade parts fail.
- Hot-swappable SFP+ form factor: Enables field replacement or upgrade without host device downtime.
- Digital Optical Monitoring (DOM): Provides real-time diagnostics on link health parameters via the host management interface.
- TAA compliant: Meets Trade Agreements Act requirements for U.S. federal and defense procurement.
Typical Applications
- Data center spine-leaf and top-of-rack 10G fiber uplinks
- Campus backbone fiber aggregation over existing OM3/OM4 plant
- Government and federal agency network infrastructure requiring TAA-compliant hardware
- Industrial Ethernet deployments in manufacturing, utilities, and transportation environments
- Military and defense network builds in temperature-extreme environments
- Fiber uplink upgrades in existing Allied Telesis switch stacks
Technical Specifications
| Attribute | Value |
|---|---|
| Form Factor | SFP+ (Small Form-factor Pluggable Plus) |
| Data Rate | 10 Gbps |
| Standard | IEEE 802.3ae 10GBase-SR |
| Wavelength | 850 nm |
| Connector | LC Duplex |
| Fiber Type | Multimode (OM3/OM4) |
| Maximum Reach | 300 m |
| Operating Temperature | -40°C to +85°C (Industrial) |
| Hot-Swappable | Yes |
| DOM Support | Yes |
| TAA Compliant | Yes |
FAQ
What fiber cable type is required for the AT-SP10SR/I?
The AT-SP10SR/I requires multimode fiber with an LC duplex connector. OM3 fiber supports the full 300 m reach; OM4 also works at this distance. OM1 and OM2 fiber will result in a shorter supported reach.
Is this transceiver compatible with non-Allied Telesis switches?
The AT-SP10SR/I is designed for Allied Telesis platforms. While the SFP+ form factor is industry standard, interoperability with third-party switches should be confirmed with your vendor or tested in a lab environment before deployment.
What does TAA compliance mean for procurement?
TAA compliance indicates the product is manufactured or substantially transformed in a country covered by the U.S. Trade Agreements Act. This is a mandatory requirement for many U.S. federal government IT hardware purchases under GSA schedules and certain defense contracts.
Can this transceiver be used in standard commercial (non-industrial) environments?
Yes. The industrial temperature range (-40°C to +85°C) is a superset of the commercial range (0°C to +70°C). This module operates normally in standard data center conditions.
Does the AT-SP10SR/I support Digital Optical Monitoring?
Yes. DOM allows the host switch to report real-time transceiver diagnostics including transmit/receive optical power, temperature, supply voltage, and laser bias current, provided the host platform supports DOM readout.
Where can I purchase the AT-SP10SR/I or get technical support?
The AT-SP10SR/I is available through Creation Networks. Contact us for volume pricing, compatibility questions, or pre-sales technical guidance.
