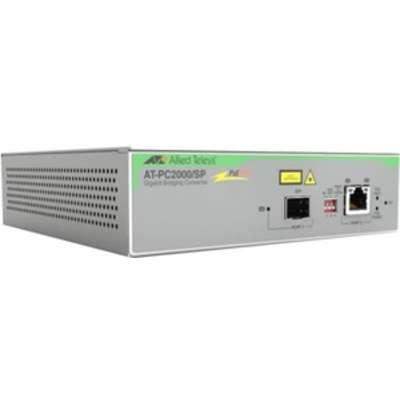

Allied Telesis AT-PC2000/SP-960 TAA 10/100/1000T-100X/1000X SFP POE+ MEDIA & RATE CONVERTER UNIV

Product Overview

The Allied Telesis AT-PC2000/SP-960 is a TAA-compliant Allied Telesis PoE+ gigabit media converter with SFP slot, uniquely combining two critical functions: it converts between 10/100/1000Base-T copper and 100M/1000Base-X fiber, while simultaneously supplying up to 30W of IEEE 802.3at PoE+ power to a connected remote device. This dual capability makes the PC2000/SP the right solution for extending PoE-powered devices — IP cameras, VoIP phones, and wireless access points — beyond the 100-meter copper distance limit using fiber backhaul. Unlike the PC200/SC (which uses a fixed SC fiber connector), the PC2000/SP features an SFP slot that accepts Allied Telesis multimode, single-mode, or BiDi optics, providing flexible reach from 550 m to several kilometers depending on SFP choice. TAA compliance makes this unit suitable for US federal and government procurement programs.

Product Description

The Allied Telesis PC2000/SP-960 addresses a specific and common network challenge: providing both fiber connectivity and PoE power delivery to a remote device located more than 100 meters from the nearest PoE switch. The device accepts a 10/100/1000Base-T connection on its copper RJ-45 port — which also carries IEEE 802.3at PoE+ power output (up to 30W) — and converts it to 100M or 1000M fiber via the flexible SFP slot. This allows a centrally located PoE+ switch to power and communicate with a remote IP camera, wireless access point, or VoIP phone over a fiber run, without requiring a second power source at the remote end. The SFP slot supports the full range of Allied Telesis SFPs: multimode options for intra-building runs, single-mode for campus or inter-building distances, and BiDi transceivers where fiber strand count is limited. The Smart MissingLink (SML) feature monitors both ports and provides link-failure notification upstream, giving network managers rapid visibility into broken fiber segments without physical inspection. Remote Power Cycle functionality allows an administrator to reset the connected PoE device by disabling the upstream switch port, cycling power without a site visit. The unit supports IEEE 802.1Q VLAN-tagged jumbo frames up to 10K bytes, ensuring compatibility with modern enterprise network infrastructure. An internal power supply with multi-region AC adapter (US, UK, AU, EU) and compact standalone or wall-mount chassis round out the flexible deployment options. TAA compliance (Trade Agreements Act) satisfies US Government purchasing requirements.

Key Features

• IEEE 802.3at PoE+ Output (30W) — Powers remote IP cameras, APs, VoIP phones, and other PDs over the copper port without a local power source at the remote site.
• SFP Slot (100M/1G) — Accepts multimode, single-mode, or BiDi Allied Telesis SFPs for flexible fiber reach from 550 m (multimode) to 10+ km (single-mode).
• 10/100/1000Base-T Copper Port — Auto MDI/MDI-X; rate-converts between copper and fiber speeds.
• Smart MissingLink (SML) — Detects and notifies of broken fiber or copper segments for rapid fault isolation.
• Remote Power Cycle — Resets the remote PoE device by toggling the upstream switch port; no physical site visit required.
• IEEE 802.1Q VLAN and Jumbo Frame Support — Up to 10K byte frames; compatible with modern tagged VLAN environments.
• TAA Compliant — Meets Trade Agreements Act requirements for US federal government procurement.
• Internal PSU, Multi-Region AC Adapter — Single unit operates globally; desktop or wall-mount form factor.

Typical Applications

• Extending PoE-powered IP surveillance cameras over fiber beyond the 100-meter copper distance limit
• Powering remote wireless access points via fiber backhaul in campus or multi-building deployments
• VoIP phone connectivity in locations served only by fiber, where local power is unavailable
• US federal, state, and local government projects requiring TAA-compliant network infrastructure
• Industrial and healthcare environments where fiber isolates copper segments for noise immunity
• Branch office and retail locations requiring a compact, simple fiber-to-copper-with-power bridge

Technical Specifications

Frequently Asked Questions

Q: How is the PC2000/SP different from the PC200/SC?

The PC2000/SP uses a modular SFP slot, giving you the flexibility to choose any supported optic (multimode, single-mode, BiDi) and swap transceivers as requirements change. The PC200/SC uses a fixed SC fiber connector. Additionally, the PC2000/SP supports both 100M and 1G SFPs, while the PC200/SC is limited to its fixed fiber standard.

Q: Can the PC2000/SP power a device beyond 100 meters from the nearest PoE switch?

Yes. This is the primary use case. The PC2000/SP sits at the end of a fiber run — connected to a standard (non-PoE) switch port via fiber — and injects PoE+ power from its own internal supply onto the copper RJ-45 port, powering the remote PD device without requiring a PoE switch at the far end.

Q: What SFPs are compatible with the PC2000/SP?

The SFP slot accepts Allied Telesis 100M and 1000M SFPs. Options include multimode (e.g., 850 nm, up to 550 m), single-mode (e.g., 1310 nm, up to 10 km), and BiDi (single-strand) transceivers. Allied Telesis-branded SFPs are strongly recommended for full compatibility and warranty coverage.

Q: What is Smart MissingLink and how does it help operations?

Smart MissingLink (SML) monitors both the fiber and copper ports continuously. If a link failure occurs on either segment, SML propagates a link-down notification to the opposite port, giving NOC teams immediate visibility into the failure point without needing to dispatch field staff for physical investigation.

Q: Is the PC2000/SP TAA compliant for government procurement?

Yes. The AT-PC2000/SP-960 is Trade Agreements Act (TAA) compliant, making it eligible for US federal and government purchasing contracts and GSA schedules. Contact Creation Networks for government pricing and procurement assistance.

Q: Can the remote PoE device be power-cycled without a site visit?

Yes. The Remote Power Cycle feature allows an administrator to disable the upstream switch port connected to the PC2000/SP fiber side; this causes the PoE output on the copper port to drop, resetting the remote device. Re-enabling the switch port restores power automatically.

Q: Where can I purchase the AT-PC2000/SP-960?

The AT-PC2000/SP-960 is available through Creation Networks, an authorized Allied Telesis reseller with expertise in fiber connectivity and PoE infrastructure solutions.
