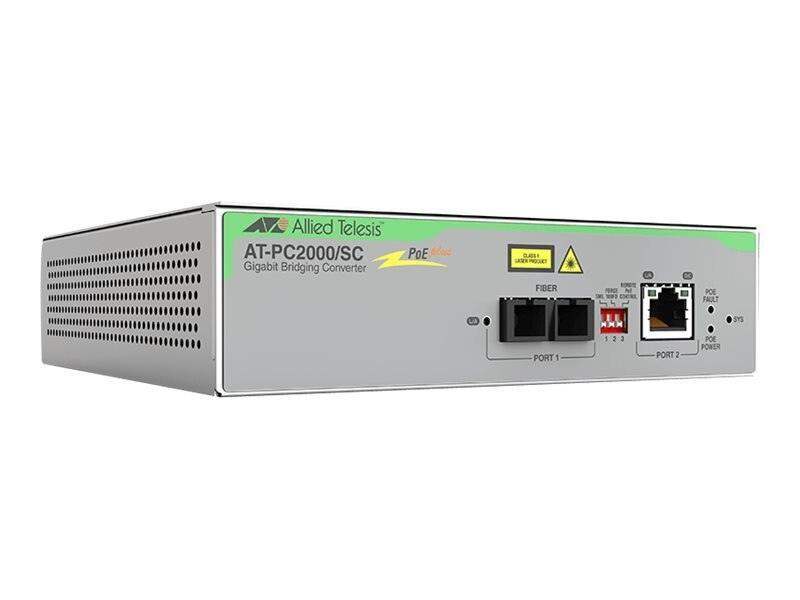

Allied Telesis AT-PC2000/SC – TAA PoE+ Gigabit Fiber Media Converter (SC, Multimode)

Product Overview

The Allied Telesis PC2000/SC is a TAA-compliant PoE+ Gigabit fiber media converter that bridges 10/100/1000Base-T copper networks to 1000Base-SX multimode fiber via an SC connector—enabling PoE+ devices to be deployed beyond the standard 100-meter copper limit. This Allied Telesis PoE+ fiber media converter is purpose-built for network engineers and facilities managers who need to remotely power IP cameras, VoIP phones, or wireless access points over multimode fiber without running a separate power feed. The PC2000/SC supports TAA procurement requirements and ships with a universal multi-region AC power supply.

Product Description

The Allied Telesis PC2000/SC is a standalone PoE+ media and rate converter that simultaneously converts media type (copper to fiber) and rate (10/100/1000T to 1000SX), allowing network operators to extend PoE+ power delivery and Gigabit data connectivity across distances up to 550 meters over multimode fiber (50/125 µm or 62.5/125 µm) at 850 nm. The copper RJ-45 port delivers full IEEE 802.3at PoE+ power—up to 30W—directly to the connected remote device, eliminating the need for a local power outlet at the remote endpoint. This is especially valuable in locations such as parking structures, building entrances, elevator shafts, and remote corridors where power infrastructure for IP cameras or access control devices is impractical. The Smart MissingLink (SML) feature continuously monitors the fiber link and provides instant notification to the network management system when a fiber segment fails, enabling rapid fault isolation without physical inspection. An additional Remote Power Cycle feature allows administrators to reset a connected PoE+ device by disabling the uplink switch port, cycling power to the remote device without requiring an on-site visit. IEEE 802.1Q VLAN support with jumbo frame capability (up to 10K bytes) ensures compatibility with modern tagged VLAN and large-frame network environments. The 4K MAC address table and store-and-forward switching mode support reliable, low-latency forwarding. The TAA-compliant design makes the PC2000/SC suitable for US government and federal procurement scenarios. A universal multi-region power supply (US, UK, AU, EU plug adapters) is included, and the compact 1.6 x 6.1 x 5.9 in enclosure supports both wall-mount and standalone deployment.

Key Features

• TAA Compliant — Meets Trade Agreements Act requirements for US federal and government procurement.
• PoE+ Power Delivery — IEEE 802.3at compliant; delivers up to 30W to remote connected PoE+ devices over the RJ-45 port.
• 10/100/1000Base-T to 1000Base-SX Conversion — Simultaneous media and rate conversion between copper and multimode fiber.
• SC Fiber Connector — 1000Base-SX SC port for multimode fiber (50/125 µm or 62.5/125 µm) at 850 nm, up to 550 m.
• Smart MissingLink (SML) — Monitors fiber link integrity and notifies management systems on segment failure for fast fault isolation.
• Remote Power Cycle — Reset remote PoE+ devices by toggling the uplink switch port—no on-site visit required.
• IEEE 802.1Q VLAN and Jumbo Frame Support — Up to 10K byte jumbo frames; compatible with modern tagged VLAN networks.
• 4K MAC Address Table — Store-and-forward switching for reliable, deterministic frame forwarding.
• Auto MDI/MDI-X — Automatic cable polarity detection on the RJ-45 port eliminates crossover cable requirements.
• Universal Multi-Region PSU — Includes adapters for US, UK, AU, and EU power outlets; no region-specific ordering required.
• Compact Wall/Standalone Form Factor — 1.6 x 6.1 x 5.9 in enclosure for flexible deployment in confined spaces.

Typical Applications

• Remote PoE+ IP camera deployment beyond 100-meter copper reach
• Wireless access point power and connectivity over multimode fiber runs
• VoIP phone or intercom deployment in remote building locations
• Access control and door entry system PoE+ extension via fiber
• Government and federal network infrastructure (TAA compliant)
• Building automation and IoT device connectivity over existing fiber plant

Technical Specifications

Frequently Asked Questions

Q: What remote devices can the PC2000/SC power?

Any IEEE 802.3at (PoE+) compliant device can be powered, including IP cameras, wireless access points, VoIP phones, access control readers, and intercom systems. The PC2000/SC delivers up to 30W to the connected PoE+ device via the RJ-45 port.

Q: What fiber type and distance does the PC2000/SC support?

The SC port operates at 1000Base-SX (850 nm) over multimode fiber—either 50/125 µm or 62.5/125 µm. Maximum operating distance is up to approximately 550 meters over 50/125 µm multimode fiber at 1 Gbps.

Q: Is the AT-PC2000/SC TAA compliant for government procurement?

Yes. The AT-PC2000/SC-960 is TAA (Trade Agreements Act) compliant, qualifying it for US federal, state, and local government procurement through GSA and similar contract vehicles.

Q: What is the Smart MissingLink (SML) feature?

SML monitors the fiber link between the PC2000/SC and any connected Allied Telesis media converter or switch. When a fiber break is detected, SML notifies the network management system, allowing rapid identification and isolation of the fault without physical inspection of the fiber run.

Q: Can I reset the remote PoE+ device without going on-site?

Yes. The Remote Power Cycle feature allows an administrator to disable the switch port to which the PC2000/SC is connected, which causes the remote PoE+ device to lose and regain power—effectively resetting it without a site visit.

Q: Does the PC2000/SC work with any brand of upstream PoE switch?

The copper RJ-45 port is compatible with any IEEE 802.3at PoE+ switch. The Smart MissingLink and Remote Power Cycle features work most fully in Allied Telesis environments. Standard media conversion and PoE+ injection function with any PoE+ source switch.

Q: Where can I purchase the AT-PC2000/SC-960?

The AT-PC2000/SC-960 is available through Creation Networks at creationnetworks.net, an authorized Allied Telesis reseller offering competitive pricing and pre-sales technical guidance.
