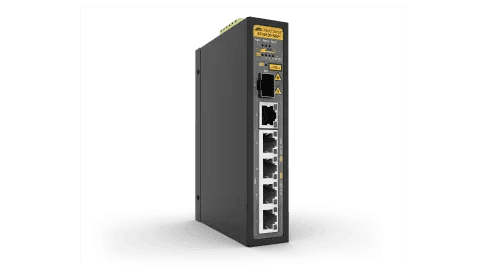

Allied Telesis AT-IS130-6GP-80 INDUSTRIAL UNMANAGED POE+ SW 4X 10/100/1000T POE+ PORTS 1 X 10/100/

Product Overview

The Allied Telesis AT-IS130-6GP-80 is an industrial-grade unmanaged PoE+ switch engineered for ruggedized edge deployments in harsh environments including smart cities, outdoor surveillance, transportation infrastructure, and industrial automation. This Allied Telesis IS130 industrial unmanaged PoE+ 6-port switch provides 4 x PoE+ copper ports, 1 x copper data port, and 1 x SFP slot for fiber uplink in a compact DIN rail or wall-mount form factor rated for -40°C to 75°C operation. With no management software required and fanless convection cooling, it is the highest-reliability, lowest-complexity PoE solution for edge IoT and surveillance deployments.

Product Description

The Allied Telesis IS130-6GP is an industrial unmanaged Layer 2 switch purpose-built for deployment in environments where temperature extremes, vibration, and electrical noise rule out commercial-grade equipment. Its -40°C to 75°C operating temperature range covers roadside enclosures, factory floors, transit hubs, and outdoor utility cabinets without supplemental heating or cooling. The five fixed 10/100/1000Base-T ports include four PoE+ capable ports compliant with IEEE 802.3af (15.4W) and IEEE 802.3at (30W), with a combined PoE power budget of 60W at 48Vdc or 90W at 54Vdc, enabling direct power delivery to IP cameras, lighting controllers, PTZ cameras with heating fans, LED fixtures, and remote POS kiosks. One dedicated combo SFP slot supports both Gigabit and Fast Ethernet SFP modules for fiber uplink to the distribution layer, providing a migration path from 100FX legacy infrastructure to full Gigabit without disruption. A 12 Gbps switching fabric and 8.93 Mpps forwarding rate meet the throughput demands of multi-camera surveillance nodes. Fanless convection cooling eliminates moving parts, maximizing MTBF in dust-laden and vibration-prone environments. The compact DIN rail and wall-mount design (30 x 95 x 140 mm) simplifies integration into existing industrial control cabinets and outdoor enclosures. An IP30 protection rating guards against solid particle ingress. Dual power input with reverse polarity and current overload protection provides resilience in unpredictable power environments.

Key Features

• Wide Operating Temperature: -40°C to 75°C — Certified for outdoor, roadside, and industrial deployments without climate control requirements.
• 4 x PoE+ Ports (IEEE 802.3af/at) — Up to 30W per port; 60W budget at 48Vdc or 90W at 54Vdc for powering cameras, sensors, and IoT devices.
• 1 x SFP Combo Slot — Supports both 100X and 1000X SFPs for flexible fiber uplink; bridges legacy and Gigabit infrastructure.
• Fanless Convection Cooling — No moving parts; maximizes reliability and MTBF in dusty, vibrating environments.
• DIN Rail and Wall Mount — Compact 30 x 95 x 140 mm form factor integrates into industrial control cabinets and outdoor enclosures.
• Dual Power Input — Reverse polarity and current overload protection for reliable operation in industrial power environments.
• IP30 Rated Enclosure — Metal shell protects against solid object ingress; suited for demanding physical environments.
• Plug-and-Play Operation — No configuration or management software needed; immediate deployment at the network edge.

Typical Applications

• Smart city surveillance: powering PTZ cameras, infrared lighting, and video nodes
• Transportation infrastructure: transit stations, toll plazas, rail platforms
• Industrial automation: factory floor IoT sensors and control devices
• Outdoor deployments: roadside enclosures, utility infrastructure, parking facilities
• Remote PoE extension for LED lighting controllers and digital signage
• Edge networking where management software and trained IT staff are unavailable

Technical Specifications

Frequently Asked Questions

Q: Does the AT-IS130-6GP-80 require any configuration or management software?

No. The IS130-6GP is fully unmanaged and plug-and-play. Connect power and Ethernet cables and it operates immediately with no software, CLI, or GUI configuration required. This makes it ideal for deployments where network management expertise is unavailable on-site.

Q: What power supply is required for the IS130-6GP-80?

The IS130-6GP requires an external industrial DC power supply: 48Vdc for IEEE 802.3af PoE sourcing (60W PoE budget) or 54Vdc for IEEE 802.3at PoE+ sourcing (90W PoE budget). Compatible Allied Telesis industrial power supplies include the AT-IE048-120-20 (120W) and AT-IE048-240-20 (240W), sold separately.

Q: How many PoE+ cameras can the IS130-6GP-80 power?

At 54Vdc with a 90W PoE budget, the switch can power up to 3 devices at the maximum 30W PoE+ rate simultaneously, or up to 4 devices at 15W PoE rate. Most standard IP cameras draw 10-15W, so 4 simultaneous cameras is typical.

Q: What is the difference between the IS130 and the IE210L series?

The IS130 is an unmanaged industrial switch optimized for simplicity, low cost, and rugged edge deployments. The IE210L is a managed industrial switch with VLAN, QoS, and ring topology features for more complex industrial network architectures requiring centralized management.

Q: Does the SFP slot support legacy 100FX connections?

Yes. The combo SFP slot supports both 1000X Gigabit and 100X Fast Ethernet SFPs, enabling connection to legacy 100FX fiber equipment while providing a clear migration path to Gigabit fiber without disrupting existing infrastructure.

Q: Where can I purchase the AT-IS130-6GP-80?

The AT-IS130-6GP-80 is available from Creation Networks at creationnetworks.net, an authorized Allied Telesis reseller.
