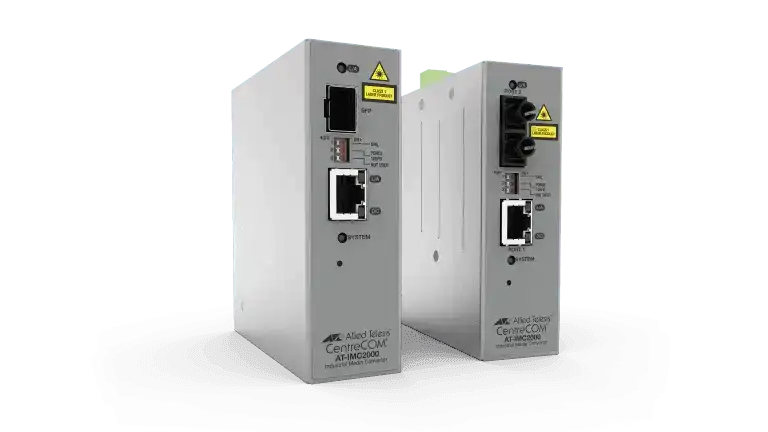

Allied Telesis AT-IMC2000TP/SC-980 – Industrial PoE+ Gigabit Media Converter TAA

Product Overview

The Allied Telesis AT-IMC2000TP/SC-980 is a TAA-compliant industrial PoE+ gigabit media converter designed to extend network connectivity beyond the 100-meter PoE range limitation. Engineered for harsh industrial environments, this Allied Telesis industrial PoE+ gigabit media converter TAA SC delivers 10/100/1000T copper-to-1000Base-SX multimode fiber conversion with up to 60W PoE+ output. It is the ideal gigabit media converter for industrial automation, surveillance, and outdoor wireless deployments that require rail-mount form factor and wide-temperature operation. Available from Creation Networks, this unit ships ready for DIN-rail or standalone deployment in environments where standard commercial-grade equipment cannot operate reliably.

Product Description

The AT-IMC2000TP/SC-980 belongs to the Allied Telesis 2000 Series Industrial Media Converter family, purpose-built to power and connect remote devices such as IP cameras, VoIP phones, and wireless access points located more than 100 meters from the nearest PoE switch. The RJ-45 twisted-pair port supports auto-negotiated 10/100/1000Base-T, while the SC fiber port delivers 1000Base-SX connectivity over multimode fiber at distances up to 550 meters at Gigabit speeds. PoE+ (IEEE 802.3at) is fully supported, with backward compatibility for standard 802.3af devices, and the unit can deliver up to 60W to connected powered devices. The industrial temperature rating (-40C to +75C operating range) makes this converter suitable for factory floors, outdoor enclosures, and transportation infrastructure where ambient temperatures exceed commercial limits. The Remote Power Cycle feature enables administrators to remotely reset the connected PoE-powered device by disabling the upstream switch port — eliminating the need for on-site intervention. Smart MissingLink (SML) technology monitors fiber link integrity and raises an alert when a link failure is detected, accelerating fault isolation. Jumbo frame support ensures compatibility with VLAN-tagged and oversized Ethernet frames common in modern enterprise backbones. Power is supplied via DC input, and the unit can be mounted on a standard DIN rail or placed as a standalone unit on a flat surface.

Key Features

• TAA Compliant — Meets Trade Agreements Act requirements for U.S. federal procurement.
• Industrial Temperature Rating — Operates from -40C to +75C for deployment in harsh environments.
• PoE+ Output (IEEE 802.3at) — Delivers up to 60W to remotely powered devices over the copper port.
• 10/100/1000Base-T Copper Port — Auto-negotiating RJ-45 interface for standard Cat5e/Cat6 cabling.
• 1000Base-SX SC Fiber Port — Multimode fiber connectivity up to 550m at Gigabit speeds.
• Remote Power Cycle — Resets remote PoE devices by toggling the upstream switch port without physical access.
• Smart MissingLink (SML) — Monitors link status and notifies administrators of fiber failures immediately.
• Jumbo Frame Support — Compatible with IEEE 802.1Q VLAN and oversized packet environments.
• DIN-Rail or Standalone Mounting — Flexible installation for industrial cabinet or desktop deployment.
• DC Power Input — Suitable for industrial power distribution environments.

Typical Applications

• Extending PoE to IP cameras and access points beyond 100m from the nearest PoE switch
• Industrial automation and SCADA network infrastructure
• Transportation and transit system networking
• Outdoor wireless access point deployment with remote management
• Factory floor network extensions requiring industrial temperature compliance
• U.S. federal, defense, and government network projects requiring TAA compliance

Technical Specifications

Frequently Asked Questions

Q: What is the maximum fiber distance supported by the AT-IMC2000TP/SC-980?

The unit supports up to 550 meters over multimode fiber at Gigabit (1000 Mbps) speeds, and up to 2 km at 100 Mbps Fast Ethernet speeds using the 1000Base-SX SC port.

Q: What PoE standard does this media converter support?

It supports IEEE 802.3at (PoE+) and is backward compatible with IEEE 802.3af standard PoE devices, providing up to 60W of power over the copper twisted-pair port.

Q: Is the AT-IMC2000TP/SC-980 TAA compliant for U.S. government procurement?

Yes. This unit is fully TAA compliant, making it eligible for U.S. federal, defense, and government network projects that require compliance with the Trade Agreements Act.

Q: What does the Remote Power Cycle feature do?

When the fiber link drops, the unit automatically cycles power to the connected PoE device. Administrators can also trigger a reset remotely by disabling the upstream switch port, eliminating the need for physical on-site access.

Q: Can this converter operate in outdoor or industrial environments?

Yes. The -980 suffix designates industrial temperature operation (-40C to +75C), making it suitable for outdoor enclosures, transportation systems, factory floors, and other environments with extreme temperature variation.

Q: What fiber connector type does this unit use?

The unit uses a fixed SC (Subscriber Connector) fiber port for 1000Base-SX multimode fiber connectivity. SC connectors are widely deployed in enterprise and industrial fiber installations.

Q: Where can I purchase the AT-IMC2000TP/SC-980?

The AT-IMC2000TP/SC-980 is available directly from Creation Networks at https://creationnetworks.net. Creation Networks is an authorized Allied Telesis reseller offering competitive pricing and technical support.
