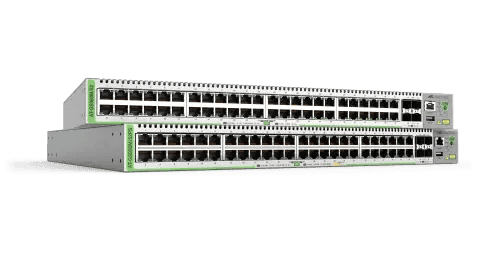

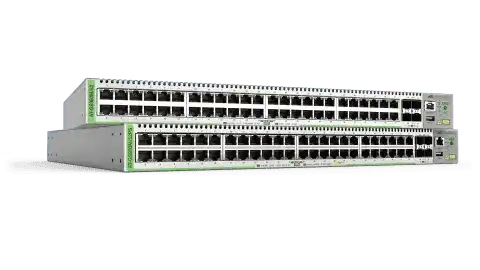

Allied Telesis AT-GS980M/52PS-10 48PORT 10/100/1000T POE+ 4PORT 100/1000X SFP GB ENET MANAGED SW

Product Overview

The Allied Telesis GS980M/52PS-10 is a 48-port PoE+ managed gigabit switch purpose-built for high-density enterprise access deployments. Delivering full 10/100/1000T PoE+ connectivity across all 48 ports plus 4 dedicated 100/1000X SFP uplink slots, this Allied Telesis GS980M series switch serves as an ideal edge node in Allied Telesis Autonomous Management Framework (AMF) environments. IT managers seeking a rack-mountable 48-port gigabit PoE+ managed switch with SFP uplinks and Layer 3 routing will find the GS980M/52PS-10 a cost-effective, feature-rich solution for powering IP phones, wireless access points, and IP cameras at scale.

Product Description

The AT-GS980M/52PS-10 belongs to the Allied Telesis GS980M series — an access-layer managed switch line distinct from the newer GS980MX series. All 48 copper RJ-45 ports support PoE+ (IEEE 802.3at), each capable of delivering up to 30W to powered endpoints, making this an efficient solution for powering high-density wireless AP deployments, IP surveillance cameras, and VoIP infrastructure from a single 1U rack unit. The four SFP expansion slots accept 100/1000X optics for flexible fiber or copper uplink connectivity to distribution or core switches. Layer 3 routing capability enables inter-VLAN routing and scalable network segmentation without requiring a dedicated router. When deployed as an AMF edge node alongside an AMF Master switch, the GS980M/52PS-10 enables zero-touch configuration management, automated backup, and simplified day-to-day administration across the entire network fabric. The switch runs Allied Telesis AlliedWare Plus, providing an industry-standard CLI, web GUI management, SNMP, and a comprehensive security feature set including 802.1x port-based authentication, DHCP snooping, and ACLs. The compact 1U rack-mountable form factor (17.4" W x 14.1" D x 1.7" H) integrates cleanly into standard 19-inch data center or wiring closet racks. Available from Creation Networks with pre-sales configuration assistance and post-sales support.

Key Features

• 48x 10/100/1000T PoE+ Ports — IEEE 802.3at compliant, up to 30W per port for powering wireless APs, IP cameras, and VoIP phones.
• 4x 100/1000X SFP Uplink Slots — Dedicated, non-shared fiber or copper uplinks for flexible distribution connectivity.
• Layer 3 Routing — Static routing and inter-VLAN routing reduce the need for a standalone router at the access layer.
• AMF Edge Node Support — Integrates with Allied Telesis Autonomous Management Framework for centralized, automated network management.
• AlliedWare Plus OS — Industry-standard CLI, web GUI, SNMP v1/v2c/v3, and RMON for comprehensive management flexibility.
• Multi-Layer Security — 802.1x authentication, tri-authentication, DHCP snooping, STP root guard, BPDU protection, and ACLs.
• Energy Efficient Ethernet (EEE) — Automatically reduces power when ports are idle, lowering operating costs.
• 1U Rack-Mountable — Includes 19-inch rack-mount brackets; 12.79 lb unpackaged weight.

Typical Applications

• Enterprise wiring closet and access-layer deployments requiring dense PoE+ connectivity
• IP surveillance networks with high-power camera requirements
• High-density wireless LAN buildouts powering 802.11ax access points
• VoIP deployments requiring per-port PoE+ budget management
• AMF-managed distributed campus networks seeking zero-touch provisioning
• SMB and mid-market networks requiring Layer 3 inter-VLAN routing at the edge

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the GS980M and the GS980MX series?

The GS980M is an earlier managed gigabit switch series focused on access-layer PoE+ connectivity with AMF support. The GS980MX is a newer, higher-performance series with multi-gigabit and 10G uplink options. The AT-GS980M/52PS-10 belongs to the GS980M line.

Q: How much total PoE power budget does the GS980M/52PS-10 provide?

The device power consumption listed is 48W for the switch itself. For total PoE budget, consult the Allied Telesis GS980M datasheet; individual ports support up to 30W (PoE+) per IEEE 802.3at. Contact Creation Networks for budget planning assistance.

Q: Does this switch support AMF without a separate AMF Master?

The GS980M/52PS-10 can function as an AMF edge node. Full AMF automation features such as zero-touch provisioning and centralized backup require an AMF Master switch elsewhere in the network.

Q: Are the SFP slots shared with copper ports?

No. The 4 SFP slots are dedicated uplink ports, independent of the 48 copper PoE+ ports, giving you a full 52 active ports simultaneously.

Q: Can this switch perform inter-VLAN routing without a separate router?

Yes. The GS980M/52PS-10 supports Layer 3 static routing and inter-VLAN routing, enabling you to segment traffic at the access layer without an external router.

Q: Where can I purchase the AT-GS980M/52PS-10?

The AT-GS980M/52PS-10 is available directly from Creation Networks, an authorized Allied Telesis reseller providing pre-sales engineering support and post-sales service.
