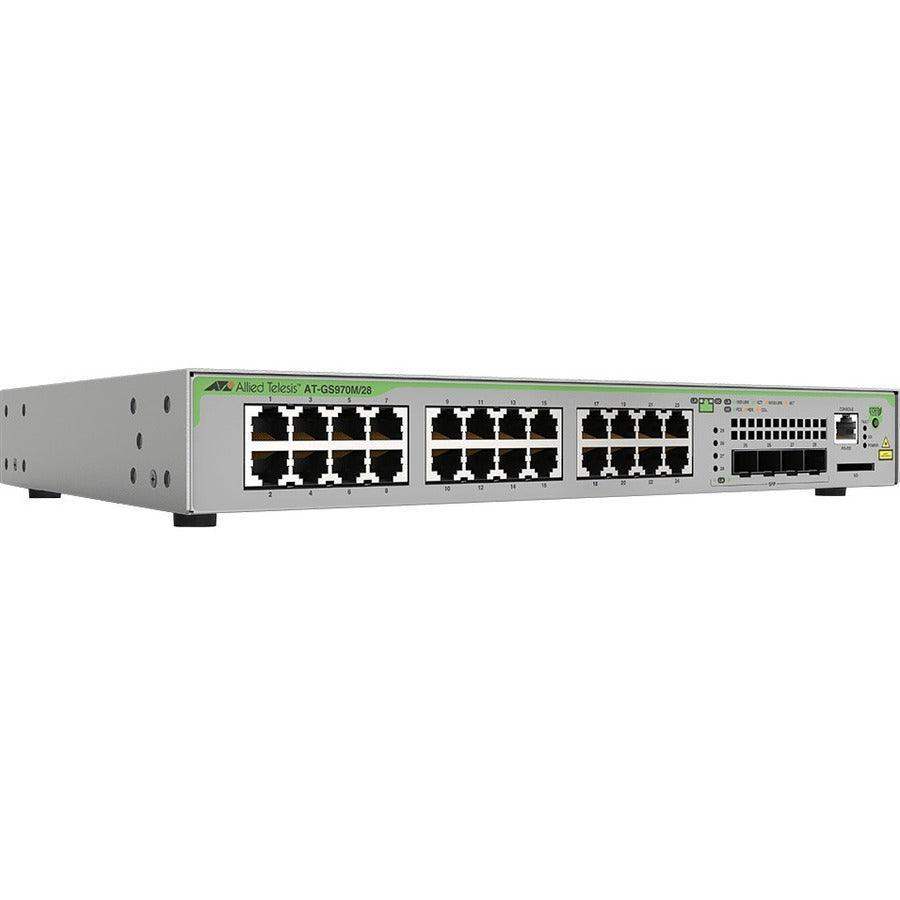

Allied Telesis AT-GS970M/28-10 L2+ MANAGED 24X10/100/1000MBPS 4XSFP UPLINK SLOT 1FIXED AC US PS

Product Overview

The Allied Telesis AT-GS970M/28-10 is a 1U L2+ managed gigabit switch providing 24 copper access ports and 4 dedicated SFP uplink slots for high-density edge deployments without PoE requirements. This Allied Telesis GS970M 24-port gigabit L2+ managed switch is ideal for organizations needing maximum port density, flexible fiber uplinks, and enterprise-grade management in a compact, cost-effective form factor. Running AlliedWare Plus with AMF edge node support, the GS970M/28-10 reduces administrative overhead through centralized provisioning and automated network management.

Product Description

The Allied Telesis CentreCOM GS970M/28 is a Layer 3 Lite managed switch offering 24 x 10/100/1000Base-T copper ports and 4 x 100/1000X SFP uplink slots in a compact 1U chassis. The GS970M/28-10 is the non-PoE variant of the GS970M/28 series, making it the right choice when all connected devices are self-powered and maximum port count is the priority. Four independent SFP uplinks allow simultaneous fiber connections to multiple distribution switches for link aggregation, redundancy, or segmented uplink architectures. AlliedWare Plus delivers a modular, enterprise-grade operating system with a familiar CLI and an intuitive web-based GUI, lowering the learning curve for IT teams. Static routing and RIP support enable basic inter-VLAN routing at the edge without requiring a separate router. The AMF edge node capability integrates this switch into an Autonomous Management Framework domain for centralized configuration backup, zero-touch replacement, and coordinated network-wide operations. IEEE 802.1x, MAC-based, and Web authentication enforce Network Access Control at every port. The compact 341 x 231 x 44 mm chassis fits a standard 19-inch rack (wall mount kit available separately), and the -10 suffix confirms a US power cord is included.

Key Features

• 24 x 10/100/1000Base-T Ports — Full gigabit copper access for up to 24 devices; auto-negotiating, half/full duplex.
• 4 x 100/1000X SFP Uplink Slots — Independent dedicated uplinks for fiber connectivity to distribution or core; supports both Gigabit and Fast Ethernet SFPs.
• L2+ (Layer 3 Lite) Switching — Static routing and RIP enable inter-VLAN routing beyond pure Layer 2 functionality.
• AlliedWare Plus OS — Modular enterprise OS with CLI, web GUI, and SNMP; consistent across the Allied Telesis CentreCOM portfolio.
• AMF Edge Node — Zero-touch provisioning, automated backup, and centralized management via Autonomous Management Framework.
• Network Access Control — IEEE 802.1x, MAC-based, and Web authentication prevent unauthorized access at the edge.
• IPv6 Ready Certified — Full IPv6 feature support for future-proof network infrastructure.
• EPSRing Support — Ethernet Protection Switched Ring for resilient, high-speed ring-based topologies.

Typical Applications

• High-density wiring closet access switching for offices and campuses
• Enterprise LAN edge where endpoints are self-powered (desktops, servers, printers)
• Branch office network edge with multi-uplink fiber aggregation
• Environments migrating from Fast Ethernet to Gigabit infrastructure
• Converged networks requiring VLAN segmentation and basic L3 routing
• Deployments integrated into an Allied Telesis AMF management domain

Technical Specifications

Frequently Asked Questions

Q: Does the AT-GS970M/28-10 support PoE?

No. The GS970M/28-10 is the non-PoE variant. If PoE+ is required, consider the GS970M/28PS which provides 24 PoE+ ports with a 370W budget.

Q: What is the difference between the GS970M/28 and other GS970M models?

The GS970M series comes in 10, 18, and 28 port configurations. The GS970M/28 has 24 copper ports and 4 SFP uplinks, making it the highest port-density model in the series. The /18PS and /10PS variants add PoE+ on their copper ports.

Q: Can I use both Gigabit and Fast Ethernet SFPs in the uplink slots?

Yes. The 4 SFP uplink slots support both 1000X (Gigabit) and 100X (Fast Ethernet) SFP modules, providing flexibility when connecting to legacy 100FX infrastructure.

Q: Is this switch compatible with Allied Telesis AMF (Autonomous Management Framework)?

Yes. The GS970M/28 operates as an AMF edge node, integrating with AMF master switches for zero-touch provisioning, automated backup, and centralized network management across the domain.

Q: Does the GS970M/28-10 support link aggregation?

Yes. AlliedWare Plus supports IEEE 802.3ad LACP (Link Aggregation Control Protocol), allowing you to bundle uplink ports for increased bandwidth and redundancy.

Q: Where can I purchase the AT-GS970M/28-10?

The AT-GS970M/28-10 is available from Creation Networks at creationnetworks.net, an authorized Allied Telesis reseller.
