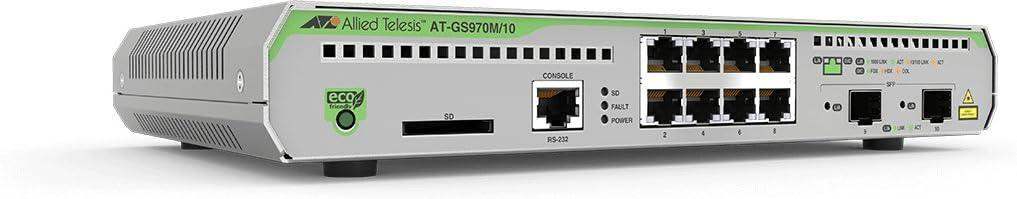

Allied Telesis AT-GS970M/10-10 L2+ MANAGED 8 X 10/100/1000MBPS 2XSFP UPLINK 1FIXED AC PWR SUPPLY

Product Overview

The Allied Telesis AT-GS970M/10-10 is a CentreCOM GS970M Series L2+ managed Gigabit switch with 8 x 10/100/1000Mbps RJ-45 ports and 2 x 100/1000X SFP uplinks, powered by a single fixed AC power supply with a US power cord. This Allied Telesis GS970M 8-port gigabit L2+ managed switch no PoE is the compact model in the GS970M line, providing full enterprise management capabilities — VLANs, QoS, SNMP, 802.1x, AlliedWare Plus OS, and AMF edge node support — for smaller workgroups or branch office deployments. The GS970M/10-10 is the non-PoE counterpart to the AT-GS970M/10PS; customers who need to power IP endpoints directly from the switch should select the PoE+ model instead.

Product Description

The Allied Telesis CentreCOM GS970M/10-10 delivers the same AlliedWare Plus management platform found in larger GS970M models in a reduced 8-port, compact form factor suited to small branch offices, retail locations, and server-room sub-access deployments. Eight 10/100/1000Base-T RJ-45 ports provide auto-negotiating Gigabit connectivity, while two 100/1000X SFP slots allow flexible uplinks to the distribution or core layer via multimode fiber, single-mode fiber, or copper SFP modules. AlliedWare Plus provides the full L2+ feature set: IEEE 802.1Q VLANs, QoS with priority queuing, RSTP/MSTP spanning tree, IGMP snooping, SNMPv1/v2c/v3, RMON, web-based GUI, and a standards-based CLI familiar to network engineers. Static routing and RIP support basic inter-VLAN routing without the cost or complexity of a full Layer 3 switch. IEEE 802.1x, MAC-based, and Web-based authentication via RADIUS provide port-level access control, enabling NAC policies that restrict unauthorized devices from accessing the network. As an AMF edge node, the GS970M/10-10 integrates into Allied Telesis Autonomous Management Framework networks for zero-touch provisioning, automated configuration backup, and self-healing recovery — reducing truck rolls and manual intervention at remote sites. The unit is rack-mountable (1U) and wall-mountable, measures 265 x 180 x 42.5mm, and weighs 1.5kg — notably lighter and smaller than the 18-port model, making it well-suited for wall-mount deployments or space-constrained closets. Maximum power consumption is 16W fanless — completely silent operation, ideal for office environments without dedicated IT rooms.

Key Features

• 8 x 10/100/1000Base-T Ports — Auto-negotiating Gigabit copper access for up to 8 end devices; right-sized for small branches and workgroups.
• 2 x 100/1000X SFP Uplinks — Flexible fiber or copper Gigabit uplinks; accepts Allied Telesis-compatible SFP modules.
• L2+ Managed — No PoE — Full management feature set without PoE overhead; lower cost and power draw vs. the GS970M/10PS.
• AlliedWare Plus OS — Enterprise CLI and web GUI; VLANs, QoS, RSTP/MSTP, SNMP, RMON, IGMP snooping, static routing, RIP.
• Fanless, 16W Max — Completely silent operation; suitable for open office, retail, and noise-sensitive environments.
• AMF Edge Node — Allied Telesis Autonomous Management Framework support for zero-touch provisioning and auto-recovery.
• IEEE 802.1x / MAC / Web Authentication — RADIUS-integrated port-level NAC for secure access control.
• Compact and Lightweight — 265 x 180 x 42.5mm, 1.5kg; rack-mountable or wall-mountable for flexible deployment.

Typical Applications

• Small branch office or retail location access switching for 8-node workgroups
• Server-room sub-access layer for connecting a small cluster of servers with managed VLANs
• Education and healthcare sites requiring 802.1x NAC enforcement on a small port count
• Wall-mount deployments in classrooms, retail kiosks, or open-plan offices
• Remote sites within an Allied Telesis AMF network requiring zero-touch provisioning
• Upgrades from unmanaged or WebSmart switches to full L2+ management on a limited port budget

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the AT-GS970M/10-10 and the AT-GS970M/18-10?

The GS970M/10-10 has 8 copper ports and a smaller chassis (265 x 180mm, 1.5kg). The GS970M/18-10 has 16 copper ports in a wider chassis (341 x 231mm, 2.4kg). Both share the same AlliedWare Plus OS, L2+ feature set, 2x SFP uplinks, and AMF edge node capability. Choose the /10 for smaller workgroups or space-constrained installations, and the /18 for larger port-count requirements.

Q: What is the difference between the AT-GS970M/10-10 (no PoE) and the AT-GS970M/10PS (PoE)?

The AT-GS970M/10PS adds Power over Ethernet Plus (PoE+) on all 8 copper ports with up to 124W total PoE budget and supports up to 8 x 15W (802.3af) or 4 x 30W (802.3at) devices. It also draws up to 180W at full PoE+ load vs. 16W for the /10. Select the /10-10 when all endpoints are self-powered; select the /10PS when powering IP cameras, access points, or phones from the switch.

Q: What does "L2+" mean and how does it differ from a WebSmart switch?

L2+ (Layer 3 Lite) includes all Layer 2 features — VLANs, spanning tree, QoS, IGMP snooping, port security — plus basic Layer 3 routing (static routes, RIP). WebSmart switches typically offer a limited web-only management interface with a subset of VLAN and QoS features. The GS970M/10-10 also adds full CLI access, SNMPv3, RMON, and 802.1x authentication, making it suitable for environments with security and compliance requirements.

Q: Is the AT-GS970M/10-10 completely silent?

Yes. The GS970M/10-10 is fanless, generating 0 dBA of acoustic noise. This makes it ideal for quiet environments such as classrooms, open-plan offices, retail countertops, and conference rooms where fan noise would be disruptive.

Q: Does this switch support AMF (Autonomous Management Framework)?

Yes. The GS970M/10-10 is an AMF edge node. In an Allied Telesis AMF network, edge nodes receive automatic configuration and firmware management from an AMF master or controller, enabling zero-touch provisioning at remote sites and automated recovery after hardware failure or replacement.

Q: Can I wall-mount the AT-GS970M/10-10?

Yes. The switch supports both rack mounting (1U) and wall mounting. Allied Telesis offers optional wall-mount and rack-mount accessory kits. The compact size (265 x 180mm) and light weight (1.5kg) make it practical for wall-mount deployments in classrooms or retail locations.
