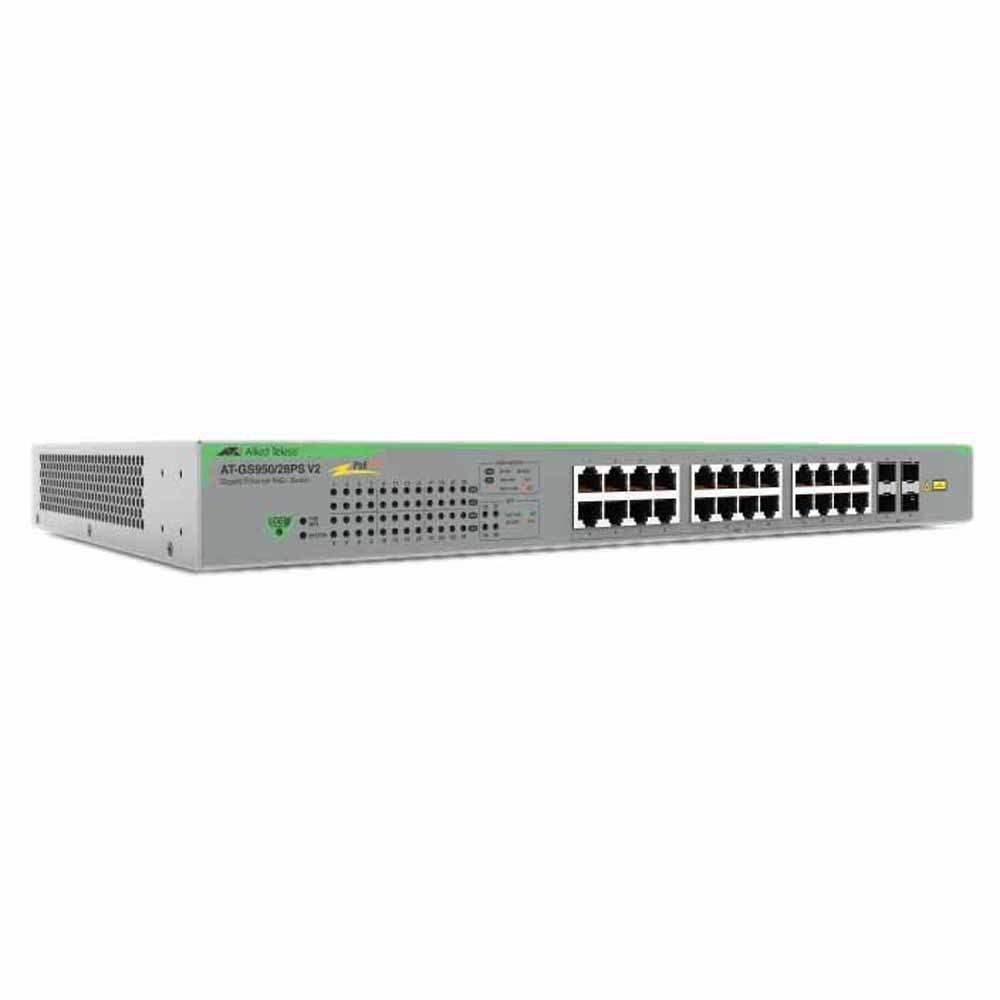

Allied Telesis AT-GS950/28PS V2-10 24PORT 1GB 4SFP V2 GIGABIT WEBSMART SWITCH
Roll over image to zoom in Click on image to zoom
Allied Telesis AT-GS950/28PS V2-10 24PORT 1GB 4SFP V2 GIGABIT WEBSMART SWITCH
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Allied Telesis AT-GS950/28PS V2-10 24PORT 1GB 4SFP V2 GIGABIT WEBSMART SWITCH

Allied Telesis SKU: AT-GS950/28PS V2-10
No reviews
Price:
$878.00

Description

Allied Telesis GS950/28PS V2 Ethernet Switch - 24 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 100/1000Base-X - 2 Layer Supported - Modular - 4 SFP Slots - 95 W Power Consumption - 185 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Wall Mountable, Rack-mountable, Desktop



The Allied Telesis GS950/28PS V2 Gigabit PoE+ WebSmart switch features 24 10/100/1000T ports and four SFP ports, delivering up to 30 Watts per port (PoE+) to support video surveillance cameras, wireless access points, IP phones and other PoE powered devices. PoE+ eliminates the need for separate power cabling and minimizes the clutter of power supplies and adapters for simplified deployment. The GS950/28PS V2 is the ideal cost-effective solution for small businesses, classrooms, larger retail stores, healthcare clinics and spas.

  • VLAN: IEEE 802.1Q tagged - Port-based - Up to 256 groups
  • Quality of Service Classification: IEEE 802.1p tagging - Port-based priority - Four priority queues per port
  • IP Multicast Support (IPv4) - IGMP snooping (v1/v2) - Static multicast group (up to 256) - Spanning-Tree, IEEE 802.1d/w/s
  • IEEE 802.3ad Link Aggregation: Manual - LACP
  • IEEE 802.1x Port-based, MAC-based and Network Access Control: Local authentication server (MD5 only) - Remote authentication through RADIUS - Dynamic VLAN assignment - RADIUS Client
  • Other: IEEE 802.3x flow control or HOL blocking prevention ( when flow control is off) - Port mirroring - Destination MAC filtering - Ingress/egress rate limiting - Broadcast storming control - 100 FX SFP support - Jumbo Frames - up to 10K
  • Management Features: SSH - Telnet - Web-based configuration - CLI configuration - SNMP trap view - LLDP - Firmware upgrade by FTP and HTTP - Configuration backup/restore by FTP and HTTP - Factory reset - Password access control and restricted - IP access list - SNMPv1/v2c/v3 - DHCP client - Syslog support - System time configuration (SNTP, manual) - Statistics Charts in Web
  • MIBs : RFC 1213 MIB-II - RFC 1643 Ethernet MIB - RFC 1493 Bridge MIB - RFC 2131 DHCP client - Private Enterprise MIB (Allied Telesis provides the spec)
  • RMON Groups (1, 2, 3, 9): Stats - History - Alarms - Events
  • ACL: Support (number of entries 188)
Management & Protocols
Manageable Yes
Network & Communication
Layer Supported 2
Miscellaneous
Package Contents
  • GS950/28PS V2 Ethernet Switch
  • Rack-mount Brackets and Screws
  • US Power Cord
  • Rubber Feet
Environmentally Friendly Yes
I/O Expansions
Expansion Slot Type SFP (mini-GBIC)
Number of Total Expansion Slots 4
Number of SFP Slots 4
Power Description
Power Source Power Supply
Power Consumption 95 W
PoE (RJ-45) Port Yes
PoE Budget 185 W
Interfaces/Ports
Network (RJ-45) Yes
Modular Yes
Total Number of Network Ports 24
Port/Expansion Slot Details 4 x Gigabit Ethernet Expansion Slot
24 x Gigabit Ethernet PoE+
Media & Performance
Network Technology 10/100/1000Base-T
100/1000Base-X
Ethernet Technology Gigabit Ethernet
Media Type Supported Optical Fiber
Twisted Pair
Physical Characteristics
Weight (Approximate) 8.16 lb
Form Factor Desktop
Wall Mountable
Rack-mountable
Height 1.7"
Width 17.3"
Depth 9.8"
General Information
Product Type Ethernet Switch
Manufacturer Part Number AT-GS950/28PS V2-10
Manufacturer Website Address http://www.alliedtelesis.com
Manufacturer Allied Telesis, Inc
Product Model GS950/28PS V2
Product Name GS950/28PS V2 Ethernet Switch
Product Series GS950 V2
Brand Name Allied Telesis
